Fireye E300 User Manual

2


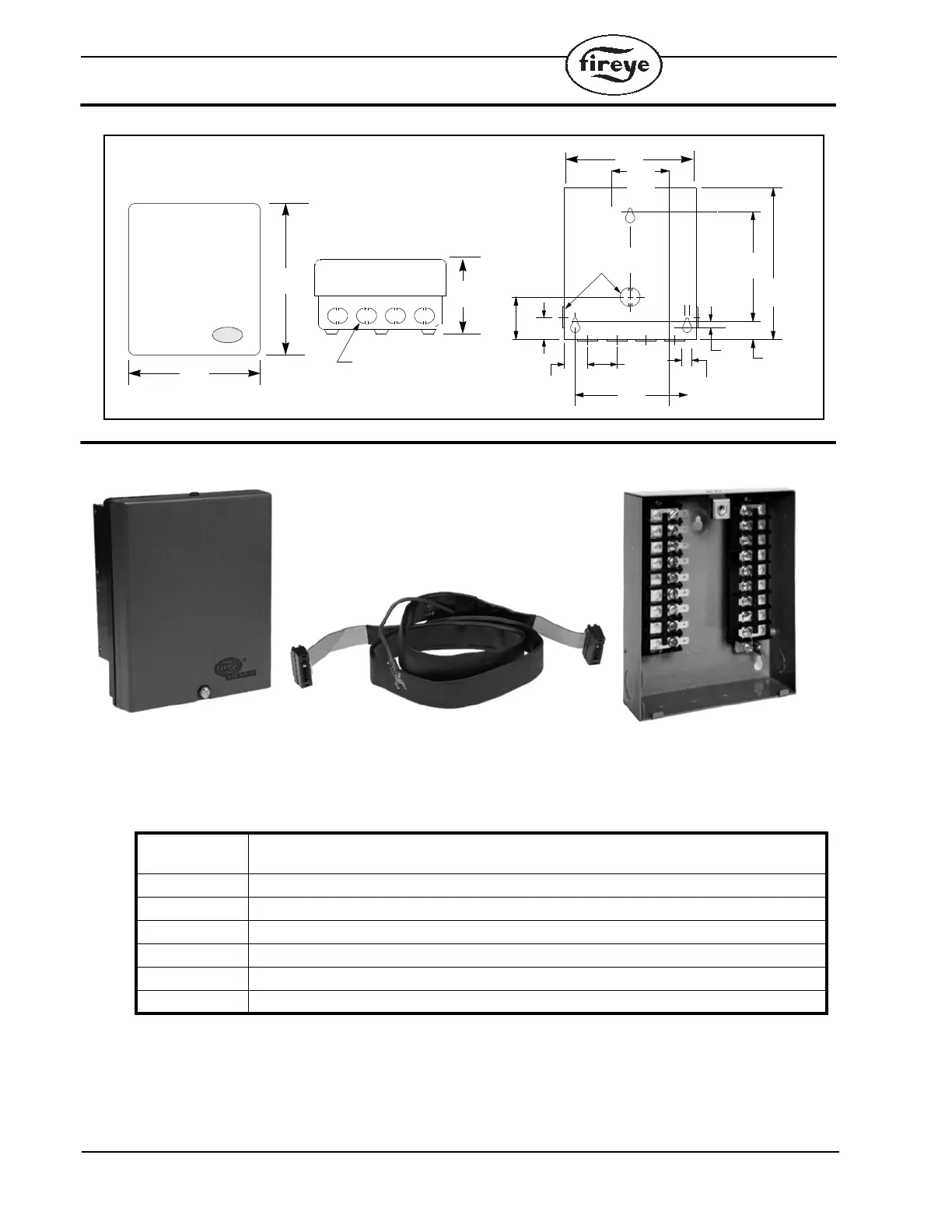

DIMENSIONS
ORDERING INFORMATION
PART
NUMBER
DESCRIPTION
E300 Expansion Module used with the EB700 FLAME-MONITOR chassis and 60-1950 wiring base
60-1950 Wiring base
E350-3 3 foot ribbon connector cable
E350-6 6 foot ribbon connector cable
EC485 RS232 to RS485 converter with power supply. Required to customize E300 lockout alarm messages.
ED512-2, -4, -8 Cable with RJ12 connectors on each end. Required to customize E300 lockout alarm messages.
WIRING BASE
MOUNTING HOLES
7 1/4
(184.2)
6
(152.4)
3 1/2
(89)
1/2” KNOCKOUT
CONTROL WITH COVER AND
P/N 60-1950 WIRING BASE
4 7/8
(123.8)
5 11/16
(144.5)
2 7/16
(61.9)
5 1/4
(133)
7
(177.8)
11/16
(17.4)
3/4
(44.4)
25/32
(19.8)
1/4
TYP
(6.35)
390
TYP
(9.9)
KNOCKOUTS FOR
1/2” CONDUIT (7)
1 1/16
(27)
1 3/16
(30.2)
E300 EXPANSION MODULE WITH
MOUNTING SCREW
E350 RIBBON CABLE
(ORDERED SEPARATELY)
WIRING BASE (60-1950)
(ORDERED SEPARATELY)
