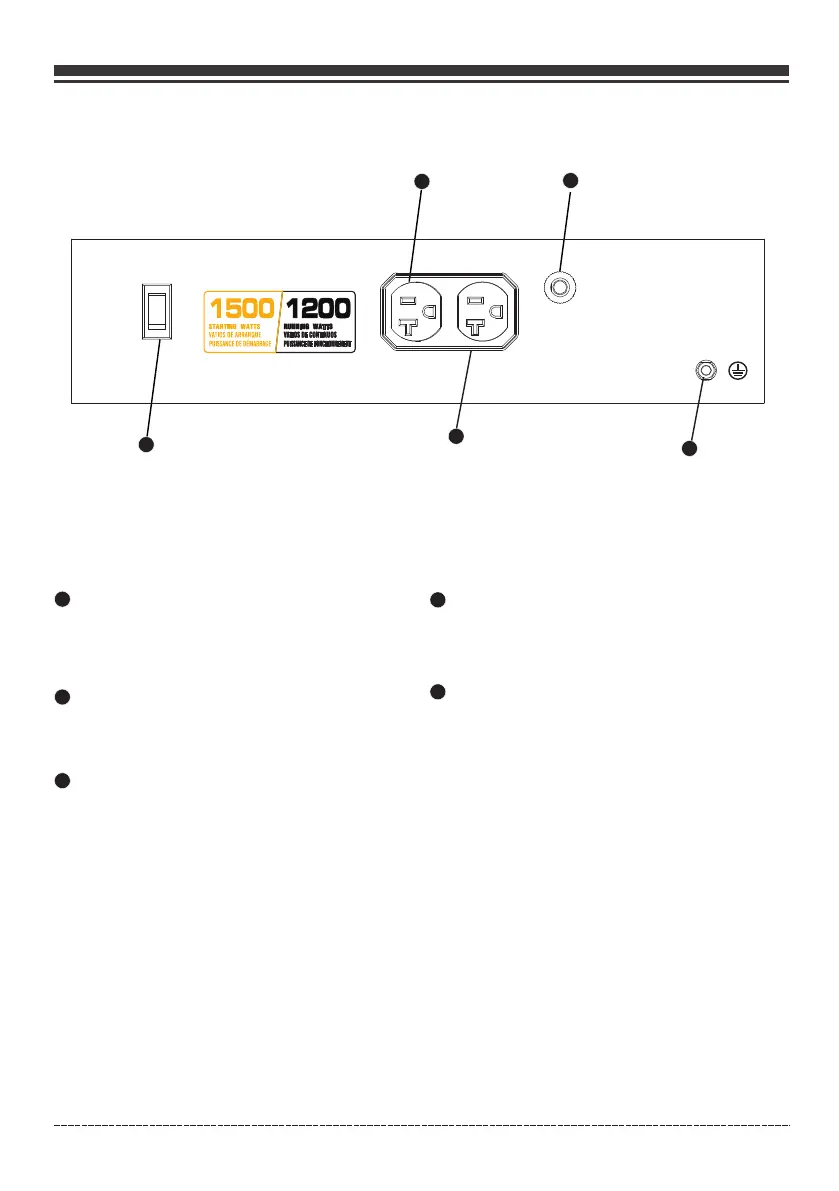

Control Panel
Engine Switch – Flip the switch to the “ON”(l)
position and pull the recoil starter to start
the generator. Turn to the “OFF”(O) position
to turn off the generator.
1
2
3
Circuit Breakers – The receptacles are
protected by an AC circuit protector. If the
generator is overloaded or an external short
circuit occurs. the circuit protector will trip.
If this occurs, disconnect all electrical loads
and try to determine the cause of the
problem before attempting to use the
generator again. If overloading causes the
circuit protector to trip, reduce the load.
Note: Continuous tripping of the circuit
protector may cause damage to generator
or equipment. The circuit protector may be
reset by pushing the button of the protector.
4
5
Ground Terminal – Consult an electrician
for local grounding regulations.
1
2
3
4
5
Total power drawn from all receptacles must not exceed the name plate rating.
NOTE:
Outlet Cover - Protect the receptacles from
dust and debris.
English Customer Service: 1-844-FIRMAN1
120V, 20A Duplex – (NEMA 5-20R) 20 Amp
of current may be drawn from this 120 Volt
receptacle.
To Next Page
