10

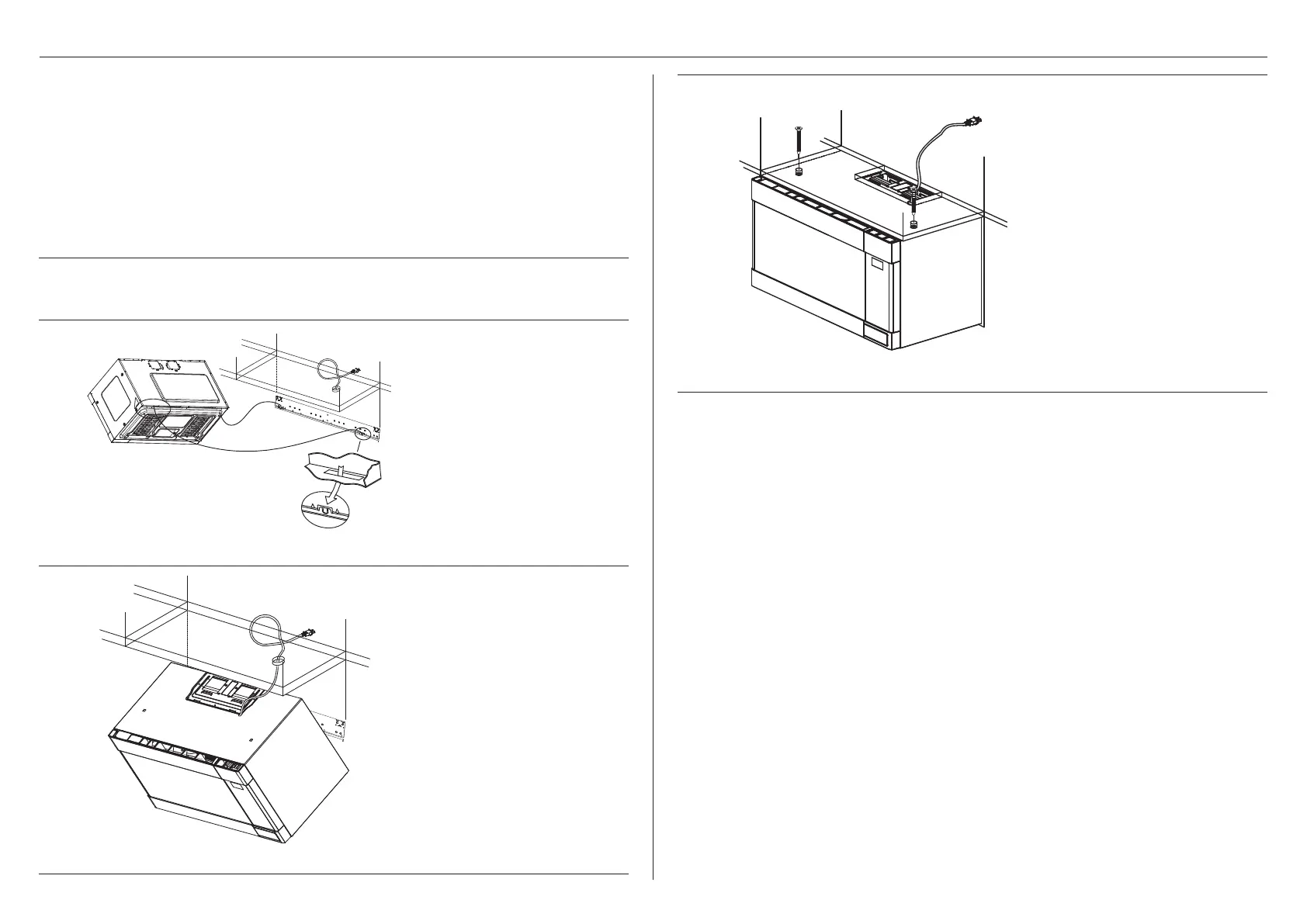

MOUNTING OVEN TO THE WALL
IMPORTANT: DO NOT GRIP OR USE HANDLE DURING INSTALLATION.
PREPARATION OF TOP CABINET
You need to drill holes for the top support screws and a hole large enough for the power cord
to fit through.
z
Read the instructions on the TOP CABINET TEMPLATE
z
Tape it underneath the top cabinet
z
Drill the holes, following the instructions on the template
Note: The
TOP CABINET TEMPLATE must be taped to the underside of the top cabinet before
proceeding with installation.
Step
1
Protect the top of your range by placing a portion of the carton or some other heavy
material over the cooking surface before mounting your oven.
Step
2
Figure 22
z
Lift the microwave oven and
tilt it forward. Hang the unit on
two tabs at the bottom of the
mounting plate. See Figure 22.
Step
3
Figure 23
z
Thread power cord through the
hole at the bottom of the top
cabinet. Swing the unit upward
to meet the top of the mounting
plate and hold it securely.
See Figure 23.
Step
4
Figure 24
z
Then insert a bolt down through
each hole in the upper cabinet
bottom. Tighten the bolts until
the gap between the upper
cabinet and microwave oven is
closed. See Figure 24.
To Next Page
