Fisher & Paykel 5 Series Installation Guide

7
This Over-the-range microwave oven is designed for adaptation to three types of hood
ventilation systems. Select the type required for your installation.
A. RECIRCULATING - NON-VENTED, DUCTLESS OPERATION
The unit is shipped assembled for recirculating.
Note:
1. The exhaust damper assembly is not required for recirculating operation.
2. The charcoal filter should be replaced every 6 months, depending on use.
3. The charcoal filter is also sold as an accessory. See User Guide for ordering information.

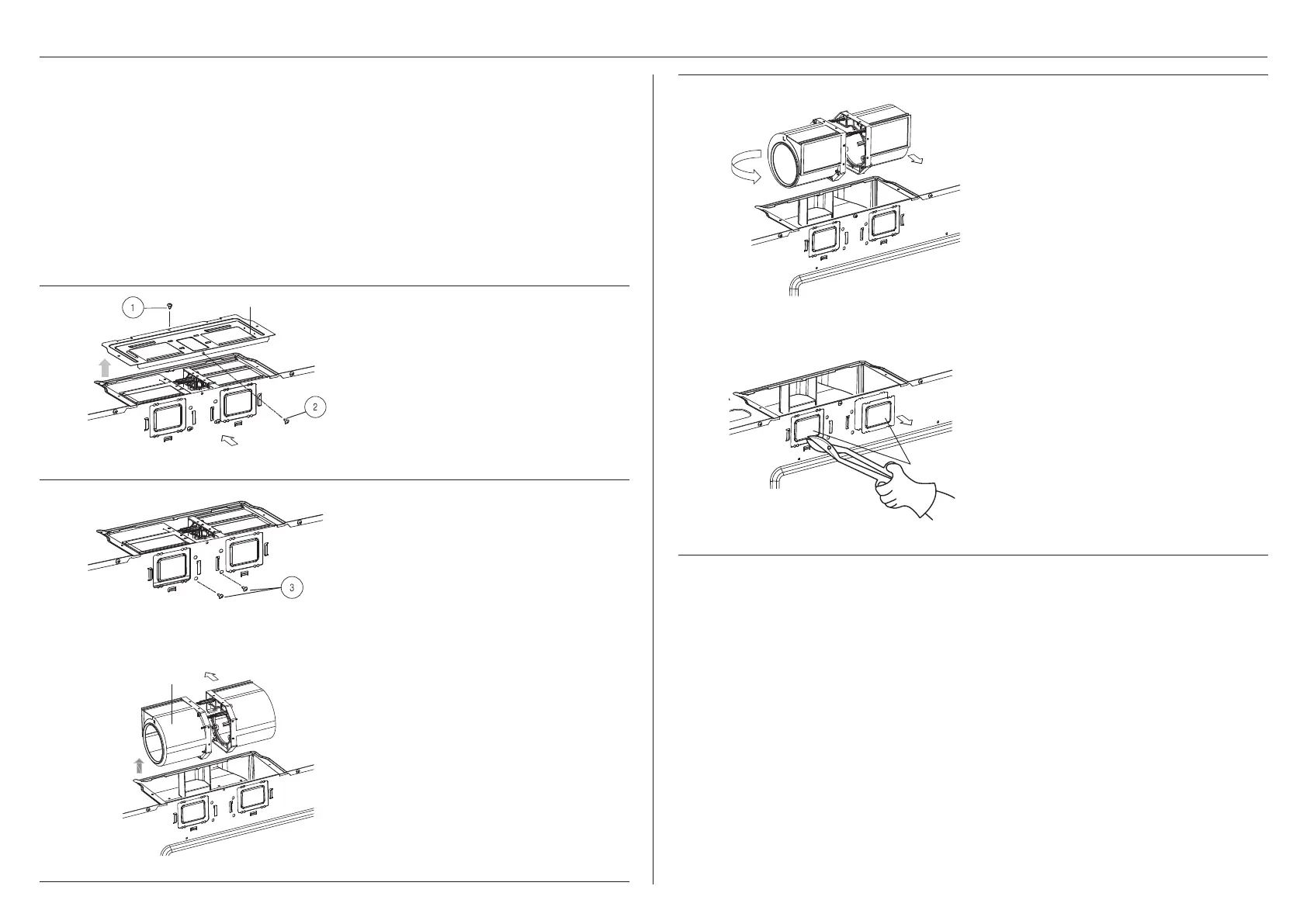

B. HORIZONTAL VENTILATION SYSTEM
Step
1
Blower motor cover
Back of oven
Figure 6
z
Remove the screws (1) and (2) for
opening the blower motor cover and
save screws. Remove cover.
See Figure 6.
Step
2
Before : Fan blade openings facing front
Figure 7
z
Remove the screws (3) for blower
attachment and save screws.
See Figure 7.
Blower motor
Figure 8
z
Lift blower unit out of mounting location.
See Figure 8.
CAUTION:
DO NOT PULL OR STRETCH BLOWER WIRING.
VENTILATION SYSTEM
Step
3
After : Fan blade openings facing rear
Turn the blower motor clockwise 180˚
Figure 9
z
Turn the blower unit so that the fan
blade openings are facing back (rear of
unit). See Figure 9.
CAUTION:
WIRES TO BLOWER UNIT MUST BE ROUTED
PROPERLY TO AVOID PINCHING WIRES BEFORE
REINSTALLATION OF COVER PLATE.
Parts B
Figure 10
z
Use side cutters or tin snips to cut and
remove parts B from back plate.
Be careful not to distort the plate.
See Figure 10.
