Fisher & Paykel 5 Series Installation Guide

6
z
Phillips screwdriver
z
Electric drill
z
Scissors
z
Pencil
z
Tape
z
Measure tape
z
1
1
⁄2 in (38 mm) wood bit or metal hole cutter (if metal cabinet is used)
z
1
⁄2 in (12.7 mm),
5
⁄8 in (15.8 mm) and
3
⁄32 in (2.3 mm) drill bits
z
Saw to cut exhaust opening (if needed)
z
Protective drop cloth for product and range—you may also use carton for protection
TOOLS RECOMMENDED FOR INSTALLATION INSTALLATION HARDWARE

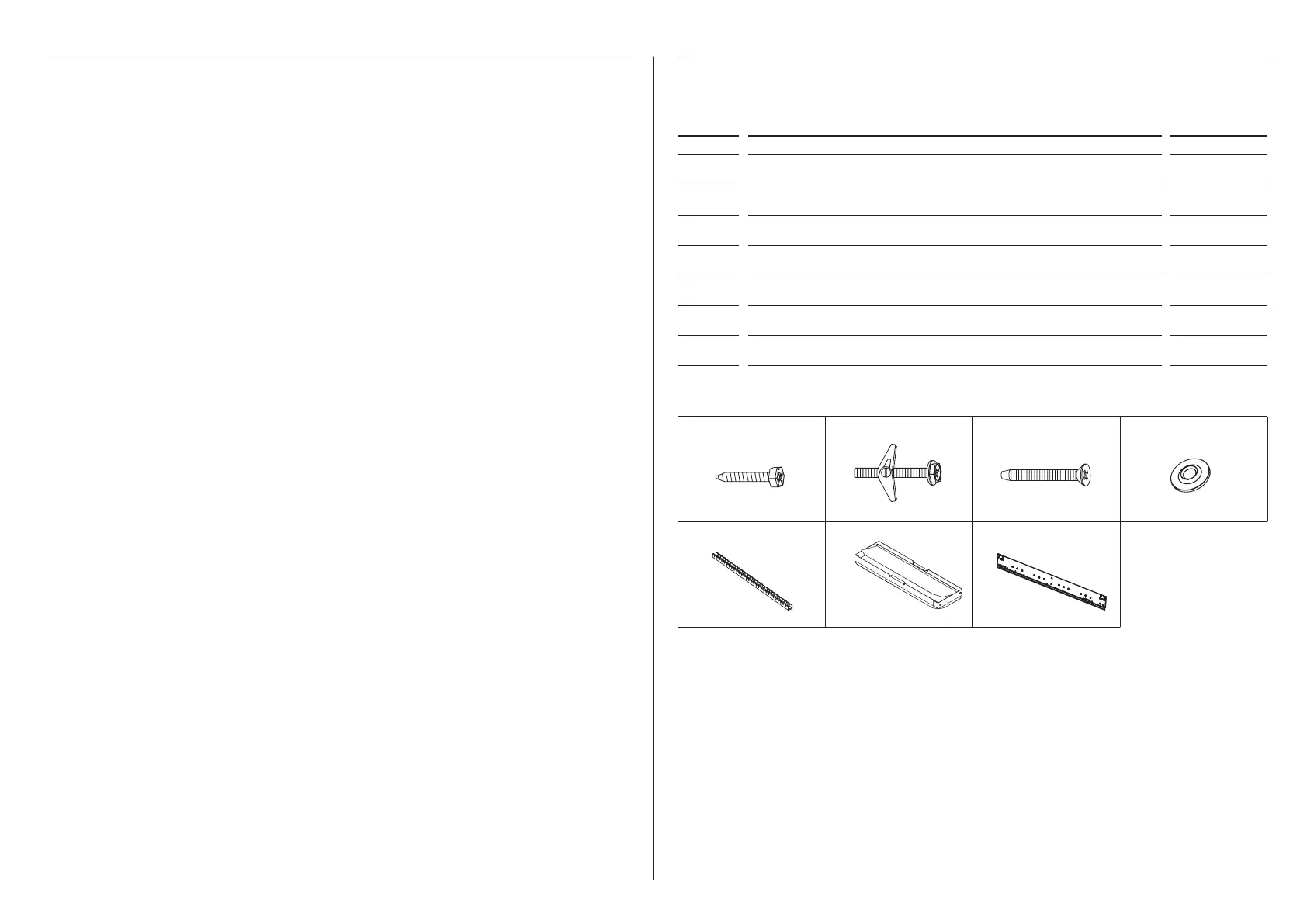

The following is a list of parts you may need for installing your Over-the-range microwave
oven. You will find the installation hardware contained in a packet with the unit. Check to make
sure you have all these parts.
ITEM NAME QUANTITY
1
Lag screws -
1
⁄4" x 1.8" (6.3 mm x 45.7 mm) 2
2
Toggle bolts and nuts -
3
⁄16" x 2.7" (4.7 mm x 68.6 mm) 2
3
Cabinet mounting bolts -
1
⁄4" x 3
1
⁄8" (6.3 mm x 79 mm) 2
4
Washer -
3
⁄4" (19 mm) 2
5
Nylon grommet (for metal cabinets) 1
6
Damper 1
7
Mounting plate 1
1
1
2 3 4
4
5 6
6
7
7
Figure 5
