Fisher & Paykel ACTIVESMART RS9120W - ELECTRICAL AND PLUMBING; Specifications and Rear Cavity Connections

12
ELECTRICAL SPECIFICATIONS
Supply 115VAC, 60Hz
Service 10 amp circuit
PLUMBING SPECIFICATIONS
Supply 6mm (1/4”) comp. Stainless steel braided hose
Pressure min. 150kPa (22psi)
max. 827kPa (120psi) @ 20°C (68°F)
Note:

Electrical connection can be located in an adjacent cabinet to either side of the fridge or above the fridge cavity.
A
C
B
Floor
73mm
756mm
143mm
Left side
of cavity

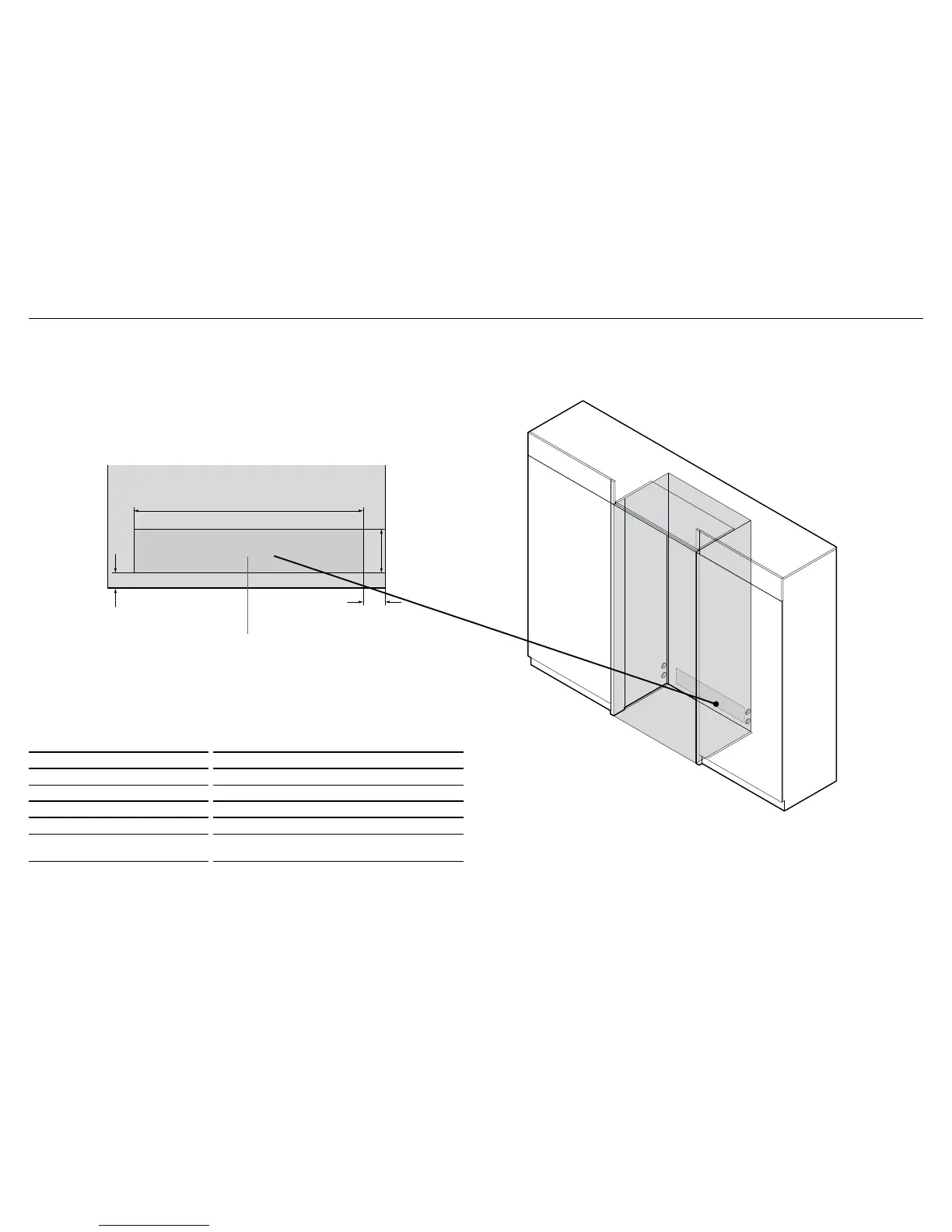

Electrical and water connections must be within
this space if located behind the refrigerator
REAR OF CAVITY
51mm
Electrical
Plumbing
Electrical
Plumbing
WARNING!
Electrical shock hazard. Assume all parts are live.
Disconnect supply before servicing and installation.
Note: We recommend to use an isolating switch that is easily
accessible to the user after the refrigerator is installed.
9 ELECTRICAL AND PLUMBING
