Connecting to the power outlet
1
At the back of your refrigerator, connect the refrigerator to the electrical
supply (230VAC, 50Hz) with the fitted plug and lead, and turn on.
Ensure the refrigerator is connected to its own isolating switch (A).
IMPORTANT!
Follow the steps below to avoid running over the hose that can cause
damage and possible waterleaks.
WARNING!
Failure to follow this instruction can lead to serious injury or death.
2

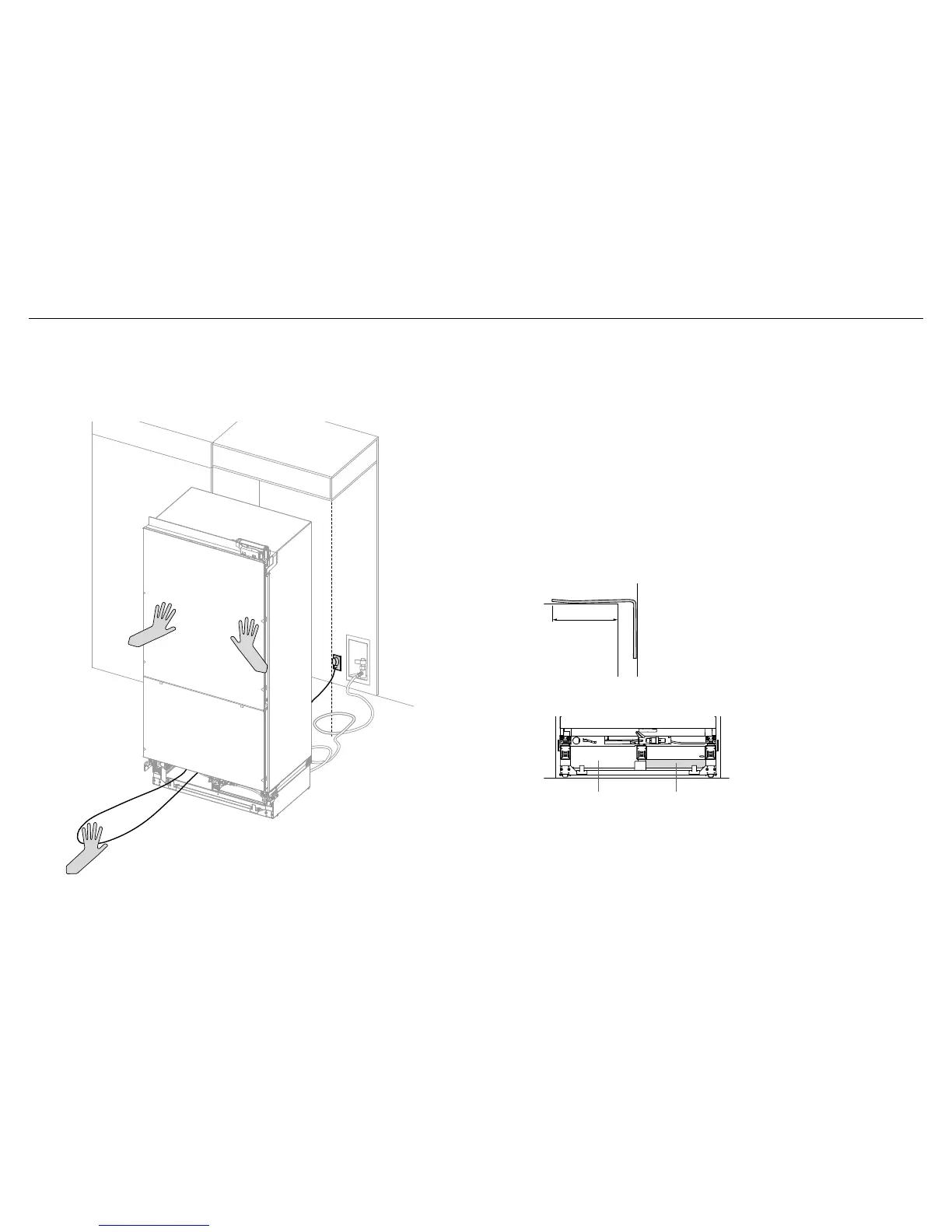

Pushing the refrigerator into the correct position:

Stop midway, reach through base to locate power cord. Pull power cord
through the front left side of the refrigerator (B), tucking it neatly in the
left side of the base (C).

Reach through base to locate water line hose coil. Tuck coil neatly into
front right side of base (D).

Push the refrigerator until the doors are in line with the frame.
Ensurerefrigerator is centered.

Firm contact must be achieved between the refrigerator and anti-tip
bracket, min.60mm overlap (E).
min. 60mm
overlap
E
Final location
of power cord,
left side of base
C
Final location
of water tube,
right side of base
D
A
B
!4 CONNECT TO WATER AND ELECTRICAL SUPPLY
