11

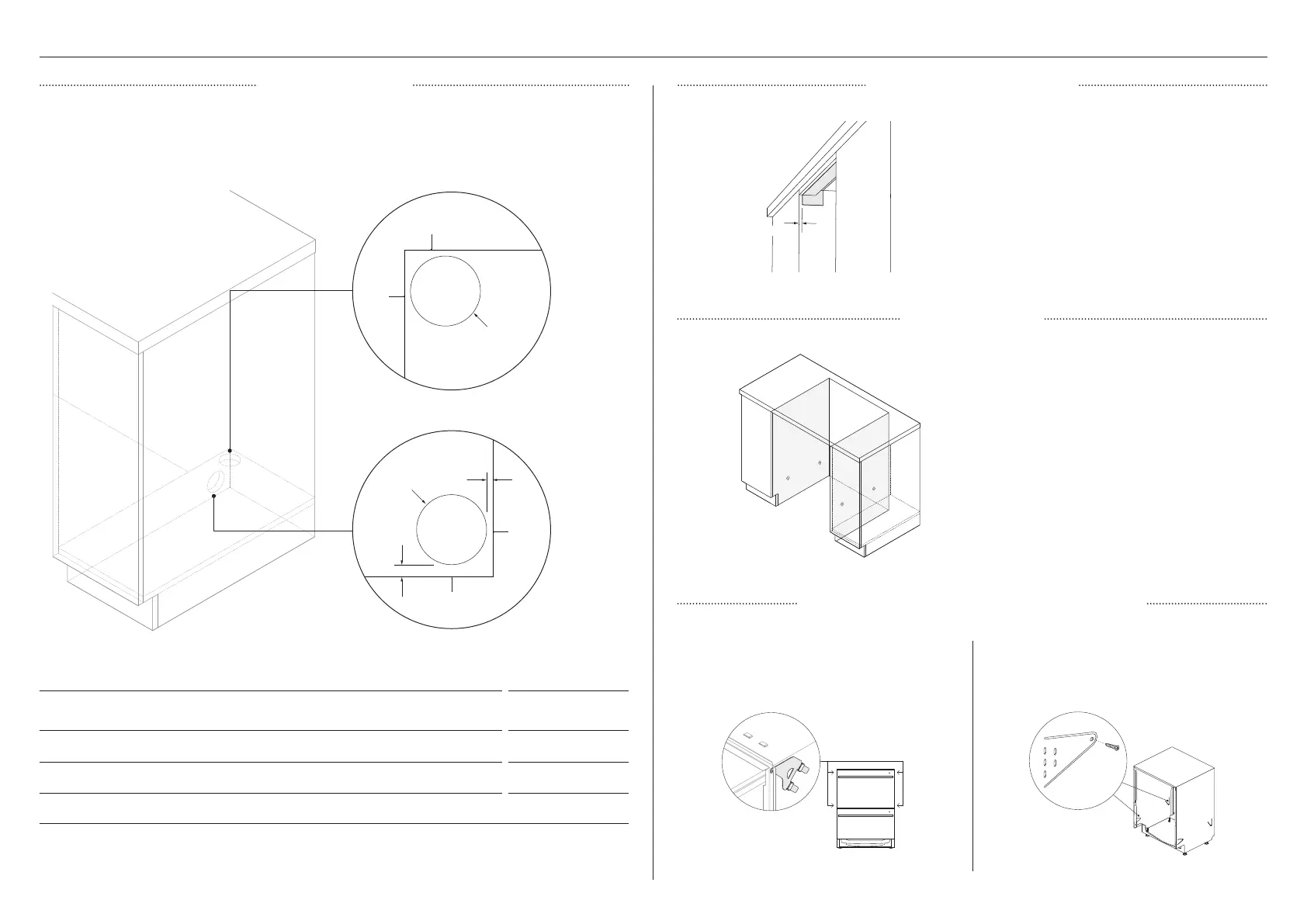

CABINETRY PREPARATION
SERVICE ACCESS MOISTURE PROTECTION
SIDE PARTITION
SELECT CABINETRY SECURING METHOD
SERVICE HOLE DIMENSIONS MM
A Maximum distance between rear of cavity and service hole 5
B Maximum distance between floor and service hole 10
C Minimum diameter of service hole 57
REAR
WALL
REAR
WALL
INSIDE
WALL
FLOOR
PLAN
PROFILE
A
b
c
c
z
We recommend locating the service holes on either side of the DishDrawer as shown below.
z
If the holes are created through wood, ensure the edges are smooth and rounded
z
If the holes are created through metal, ensure an edge protector is fitted.
1
1
10mm
Align the supplied moisture protection tape to
the cabinetry as illustrated
Ensure this area is free of debris before carefully
applying the tape to the surface.
Recommended method*
*Frameless cabinetry only
METHOD A
Secure to cabinetry via brackets
METHOD B
Secure via drawer removal
A
A
B
B
If securing via the drawer removal method,
ensure the marked locations provide adequate
support.
If there are no side partitions, construct timber
bracing to secure the fixings to.
