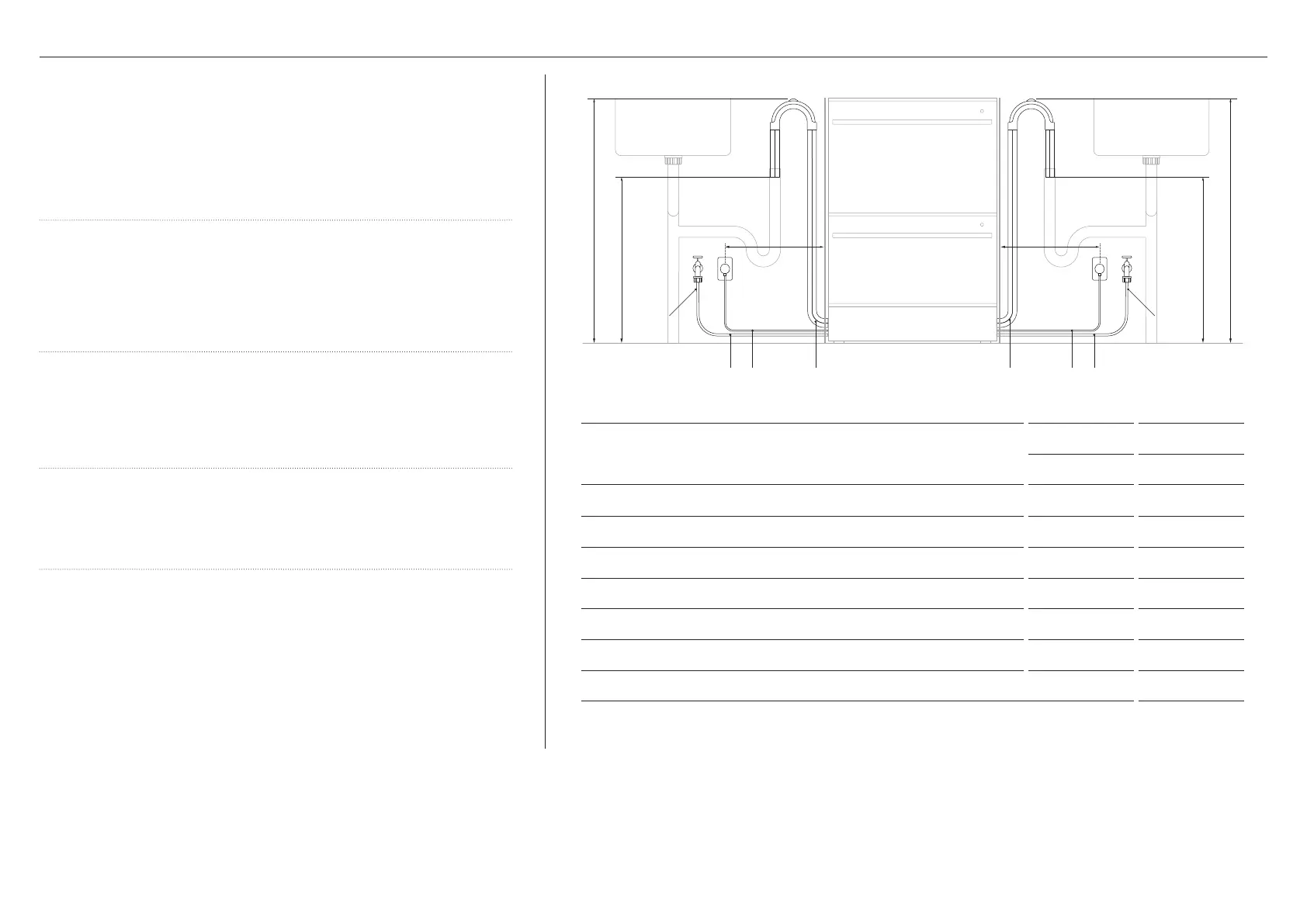

PLUMBING & ELECTRICAL CONSIDERATIONS
SERVICE DIMENSION
LEFT SIDE* RIGHT SIDE*
MM MM
A Length of drain hoses 2000 1800
B Length of power cord** 1650 1650
C Length of inlet hose 1650 1250
D Distance from floor to top of hose support 750 – 883 750 – 883
E Minimum distance from floor to end of drain hoses*** 500 500
F Minimum inlet hose radius 200 200
G Maximum distance from cabinetry centre of electrical outlet 450 450
*dimensions taken from the chassis edge where applicable
**excluding plug
***standpipe install illustrated. Distance is the same for all plumbing installs.
Hose and cord lengths
z
Your services can be installed to either the left-hand or right-hand side
of the product in an adjacent cabinet. Refer to ‘Cabinetry preparation’
for service access requirements.
z
If the drain hoses supplied are not long enough to reach your services,
you may purchase a Fisher & Paykel drain hose extension kit which will
extend the drain hoses by 3.6m (part number 525798).
Water connection
z
Recommended water temperature: Cold (maximum 60°C)
z
3/4” BSP (GB20) to suit flat washer
z
Ensure water connection complies with local plumbing regulations.
Water pressure
z
Water softener models: max. 1 MPa (145 psi), min. 0.1 MPa (14.5 psi)
z
Non-water softener models: max. 1 MPa (145 psi), min. 0.03 MPa (4.3 psi)
Electrical requirements
z
220 – 240VAC min 9.5A
Kosher requirements
z
Drains will need to be separated to satisfy kosher requirements.
z
We recommend confirming the acceptability with your local rabbi in
respect to kosherinstallations.
a a b cb
g g
c
d d
e e
f f
