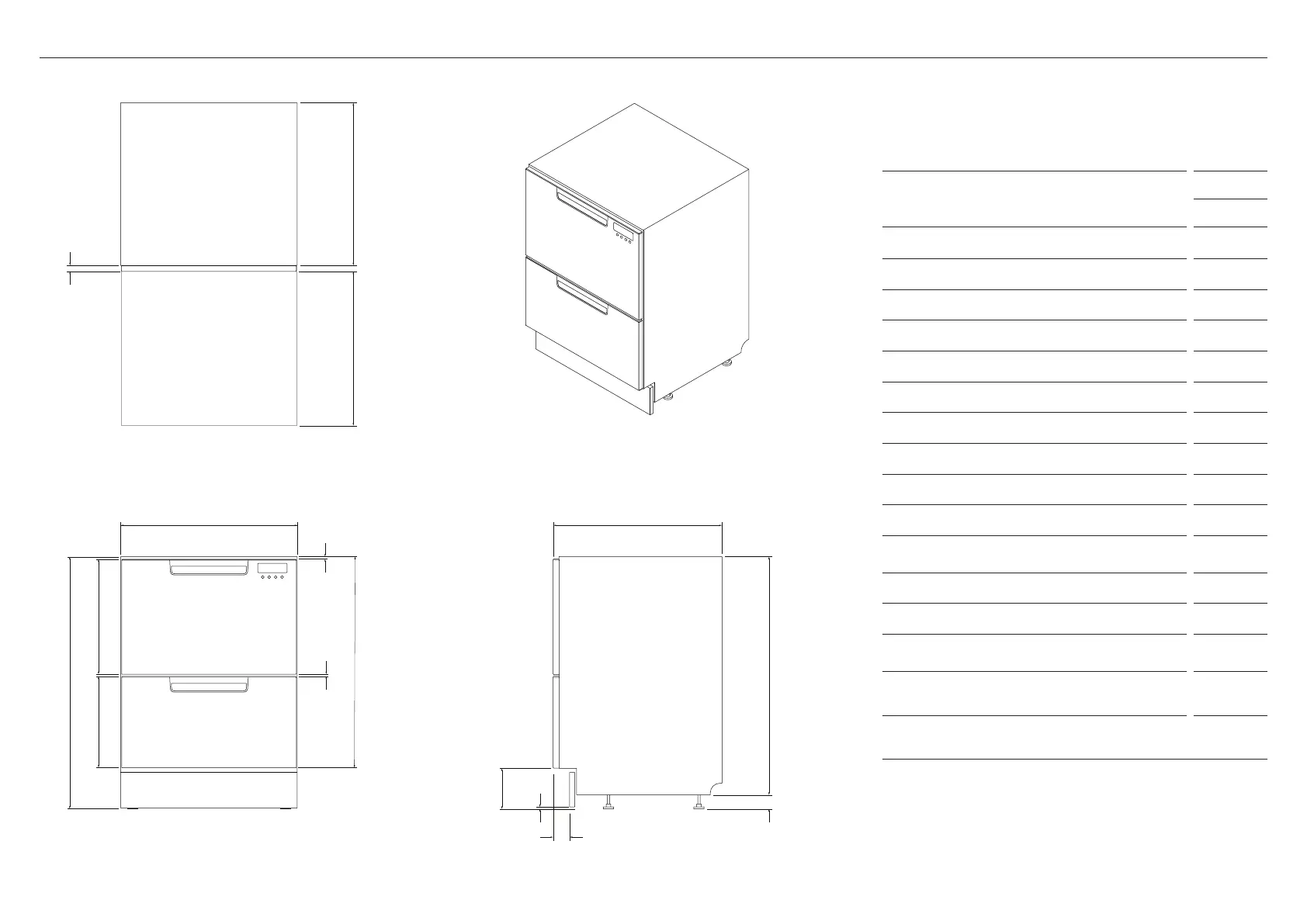

PRODUCT DIMENSIONS – DD60DC MODELS
PRODUCT DIMENSIONS
DD60DC
MM
A Overall height* 820 – 880
B Overall width 599
C Overall depth 573
D Height of chassis 811
E Depth of chassis 553
F Height of upper door panel 393
G Height of lower door panel 312
H Depth of door panel 20
I Ventilation gap between door panels 7
J Depth of toe kick recess** 38 – 54
K Minimum clearance between toe kick panel
and floor
12
L Height from base of door to floor* 100 – 160
M Height of feet* 9 – 69
N Max. drawer extension from from front of
chassis
547
O Height from top of drawer panel to top of
chassis
8
P Height from top of chassis to bottom of
lower drawer panel
720
*depending on adjustment of levelling feet
**adjustable
PLAN ISOMETRIC
PROFILEFRONT
a
F
g
B C
d
E
n
h
i
p
l
o
j
k
m
Actual product dimensions may vary by ± 2 mm
