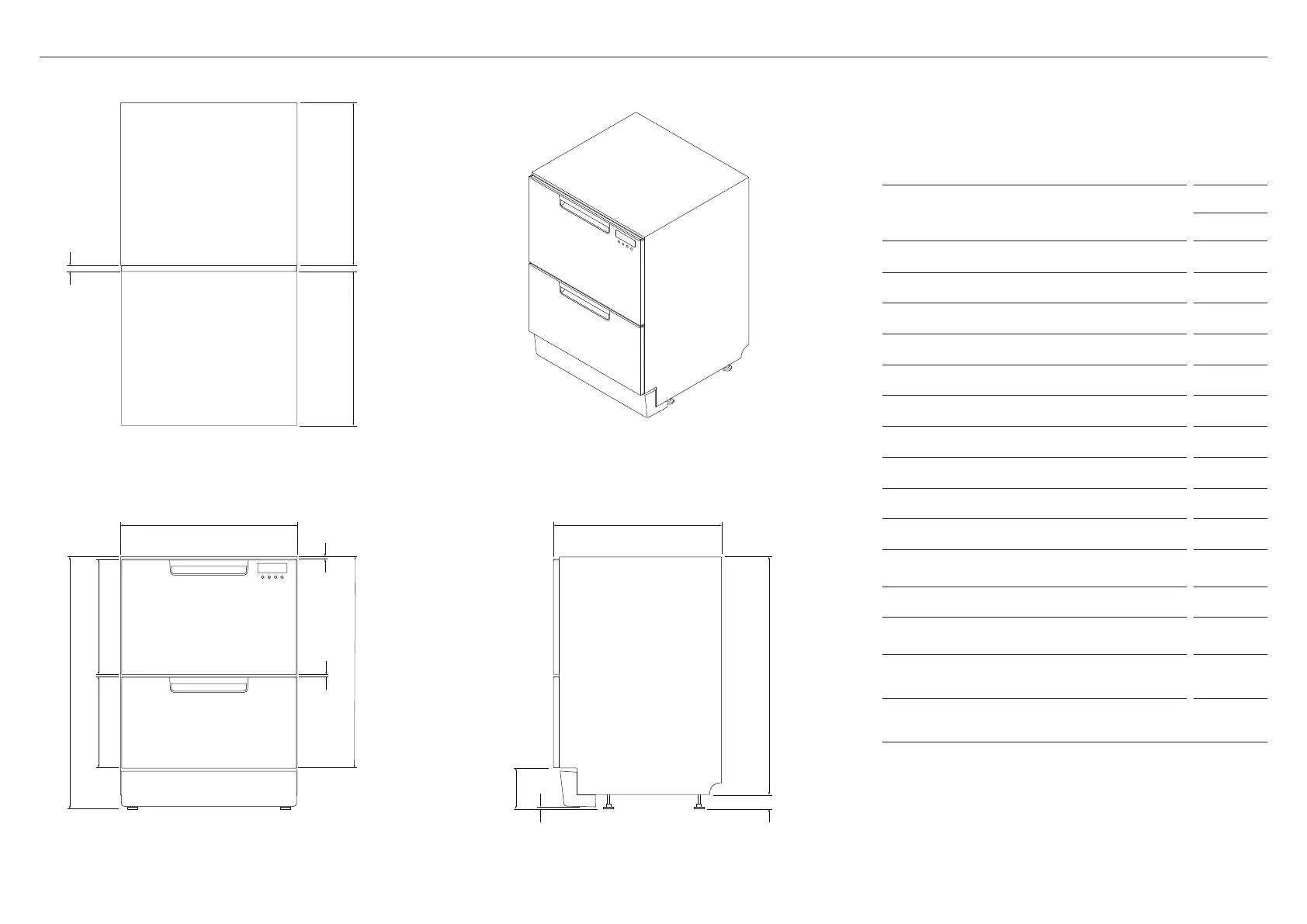

PRODUCT DIMENSIONS – DD60DA MODELS
PRODUCT DIMENSIONS
DD60DA
MM
A Overall height* 820 – 880
B Overall width 599
C Overall depth 573
D Height of chassis 811
E Depth of chassis 553
F Height of upper door panel 393
G Height of lower door panel 312
H Depth of door panel 20
I Ventilation gap between door panels 7
J Height from base of door to floor* 100 – 160
K Minimum clearance between toe kick panel
and floor
12
L Height of feet* 9 – 69
M Max. drawer extension from from front of
chassis
547
N Height from top of drawer panel to top of
chassis
8
O Height from top of chassis to bottom of
lower drawer panel
720
*depending on adjustment of levelling feet
**adjustable
PLAN ISOMETRIC
PROFILEFRONT
a
F
g
B C
d
E
m
h
i
o
n
j
k
l
Actual product dimensions may vary by ± 2 mm
