Fisher & Paykel DD60DA9 User Manual

7

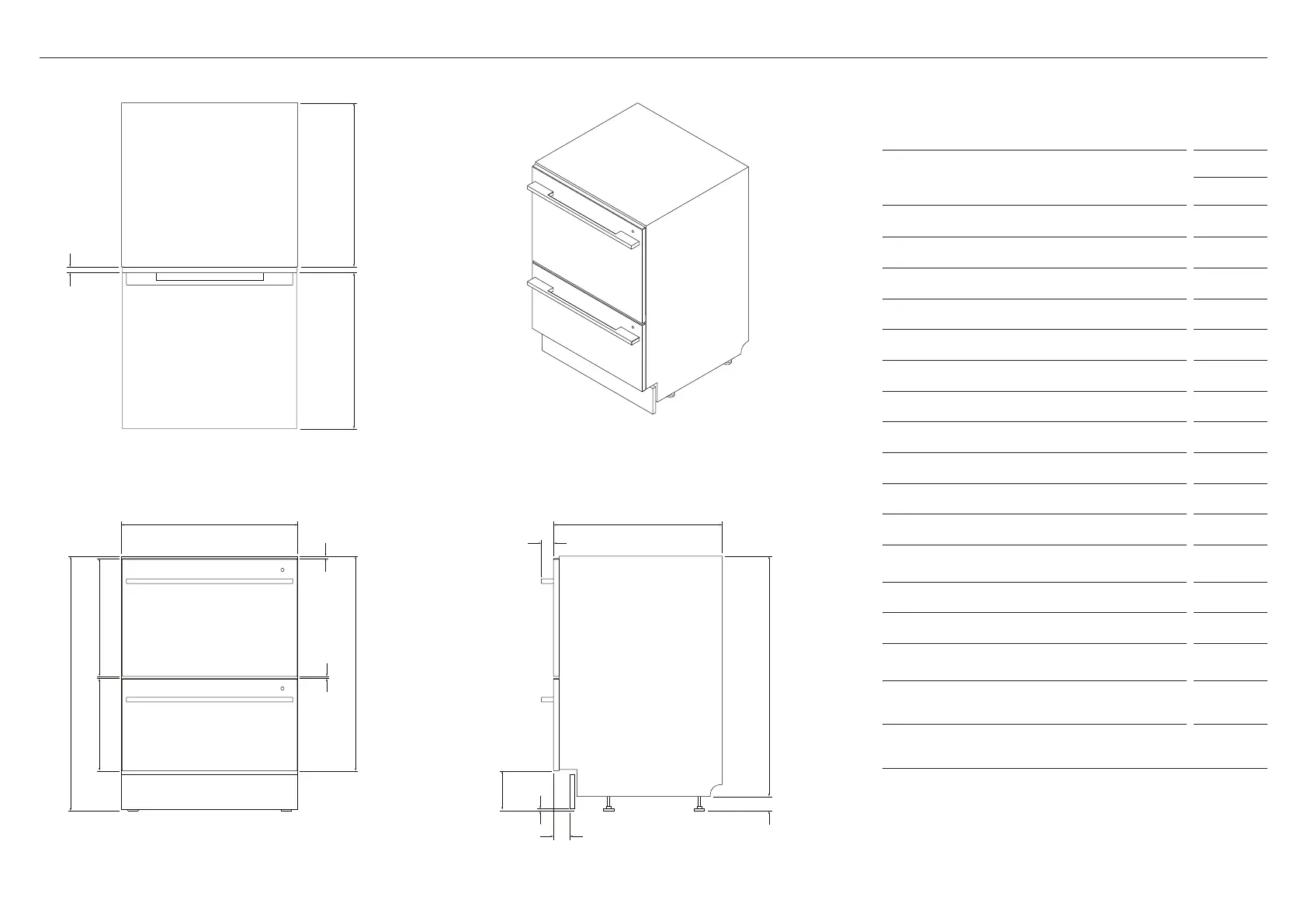

PRODUCT DIMENSIONS – DD60DD MODELS
Actual product dimensions may vary by ± 2 mm
PLAN ISOMETRIC
PROFILEFRONT
a
F
g
B C
d
E
o
h
i
q
p
j
l
n
m
PRODUCT DIMENSIONS
DD60DD
MM
A Overall height* 820 – 880
B Overall width 599
C Overall depth 573
D Height of chassis 811
E Depth of chassis 553
F Height of upper door panel 398
G Height of lower door panel 312
H Depth of door panel 20
I Ventilation gap between door panels 8
J Depth of toe kick recess** 38 – 54
K Depth of handle 41
L Minimum clearance between toe kick panel
and floor
12
M Height from base of door to floor* 100 – 160
N Height of feet* 9 – 69
O Max. drawer extension from from front of
chassis
547
P Height from top of drawer panel to top of
chassis
2
Q Height from top of chassis to bottom of
lower drawer panel
720
*depending on adjustment of levelling feet
**adjustable
k

Fisher & Paykel DD60DA9 Specifications

General

Brand	Fisher & Paykel
Model	DD60DA9
Category	Dishwasher
Language	English
