8
PRODUCT DIMENSIONS
DD60DN
MM
A Overall height* 820 - 880
B Overall width 599
C Overall depth 573
D Height of chassis 811
E Depth of chassis 553
F Depth of door panel 20
G Height of upper door panel 398
H Height of lower door panel 309
I Ventilation gap between door panels 11
J Height from top of drawer to bottom of
recessed handle
2
K Height from top of upper drawer including
ventilation to top of lower drawer
48
L Height from top of chassis to bottom of
lower door panel
720
M Height from base of door to floor** 100 - 160
N Depth of toe kick recess** 38 - 54
O Height of feet shown* 9 - 69
P Max. drawer extension from from front of
chassis
547
*depending on adjustment of levelling feet
**adjustable

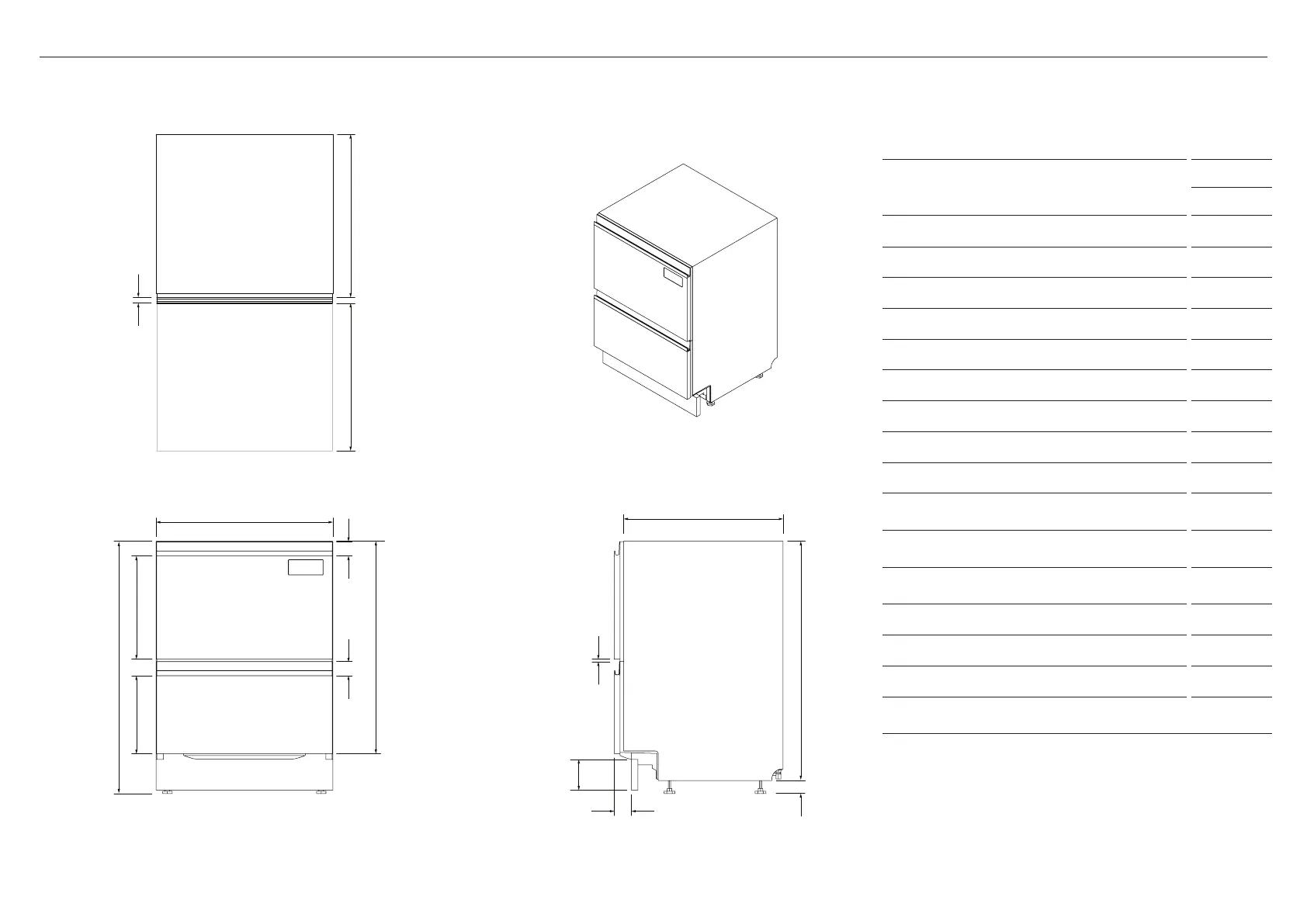

PRODUCT DIMENSIONS – DD60DN MODELS
Actual product dimensions may vary by ± 2 mm
PLAN ISOMETRIC
PROFILEFRONT
a
b
i
f
j
g
D
E
c
h
l
K
n
M
p
o
