18
1
2
16 mm x6
2
2
1
Important!
Ensure the rubber seal
between the drawer
and panel is kept in
place.
REMOVE BRACKET FROM PRODUCT
ATTACH PANEL TO PRODUCT
ATTACH PANEL TO PANEL BRACKET
There must be at least
3 screws used each side
When refitting the
door pins,
ensure they are
orientated as shown.
Align bottom of panel
with bottom of bracket
16a
18a
17a
19a

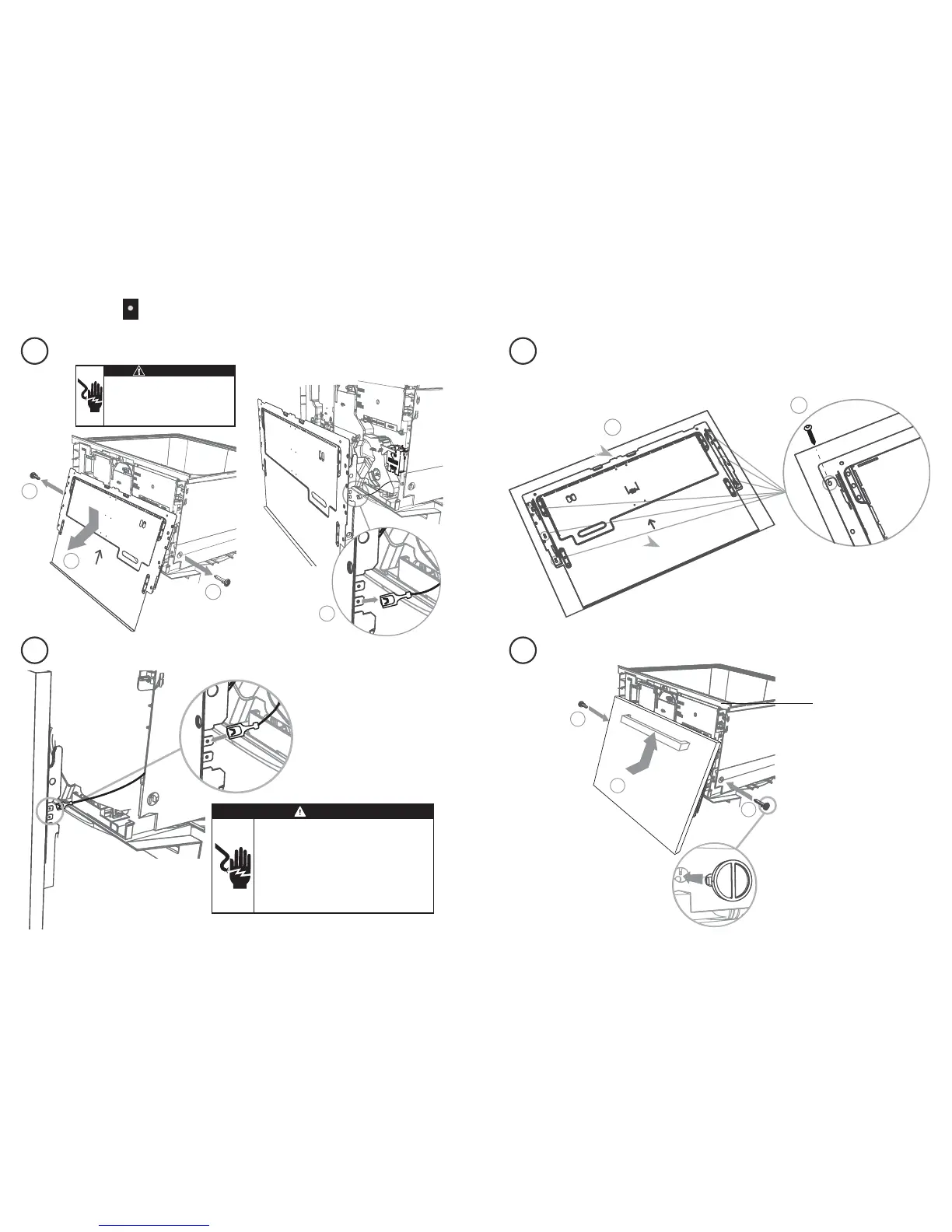

INTEGRATED MODELS WITH REMOTE ONLY - INSTALLING THE FRONT PANEL
1
1
2
3
Electrical Shock Hazard
Before continuing, ensure that the product is
disconnected from the power supply.
Failure to follow this warning may result in
electrical shock, injury or ๎re.
WARNING!
EARTH THE PANEL
WARNING!
WARNING!
To earth the panel bracket, connect the earth
wire from the product to one of the tabs.
Any custom metal component (e.g. handle)
that extends past the rubber seal must be
earthed too.
Failure to follow these warnings may result
in electrical shock, injury or ๎ re.
Electrical Shock Hazard
Repeat for the other drawer
To Next Page
