Dryer position
The Auto-timer 3.5 kg dryer is front venting. The air
is taken in through the grill at the rear of the dryer
and vented out through the grill in the door.
The dryer should be positioned so that the air
intake at the rear is unrestricted. The minimum
clearance needed from the wall is 50 mm.
Included with this dryer are two plastic spacers.
Fitting these on the rear of the dryer will ensure
the dryer is correctly positioned away from the wall.
Use screws provided to fit the spacers. (As shown
in the diagram.)
Directional outlet grill
The outlet grill can be rotated to direct the exhaust
air. It should be adjusted so that it points towards
an external window or door.
Specifications
Electronic and
Auto-timer dryers
Auto-timer dryer
Capacity (Dry) 4.5 kg (Dry) 3.5 kg (Dry)
Dimensions
Width 565 mm 565 mm
Depth 560 mm 440 mm
Height 810 mm 810 mm
Electrical NZ/AUS NZ/AUS
Volts 230/240 230/240
Hz 50 50
Amps 8.0 8.0
Note: if the electrical supply cord is damaged it must be replaced by the manufacturer or its
service agent or similar qualified person in order to avoid a hazard.
Installation – Auto-timer 3.5 kg dryer

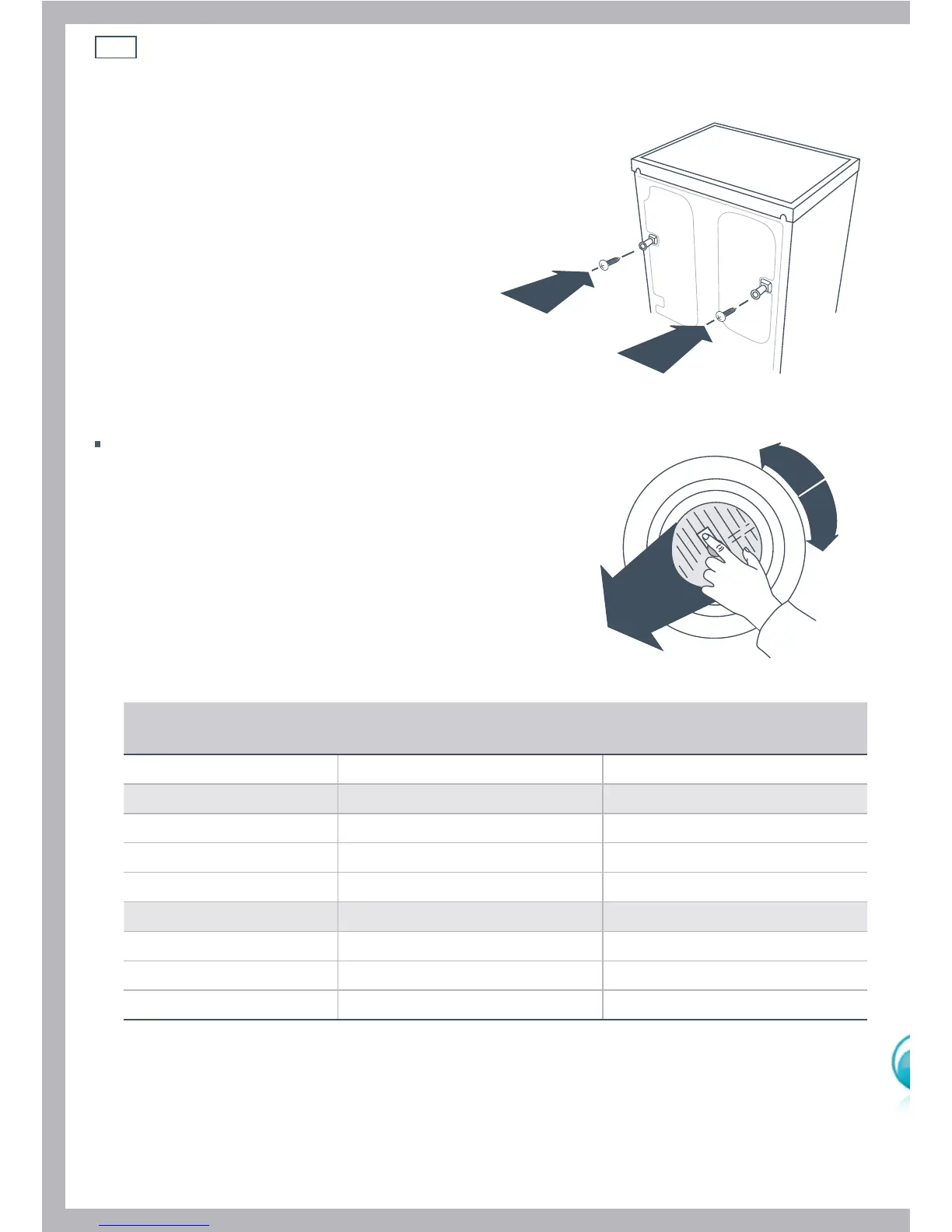

Fig. 10 Spacers
Fig. 11 Directional outlet grill
