Note: if you change mounting from upright to inverted or vice versa the dryer must be cleaned
internally by a serviceman.
Dryer wall mounting instructions

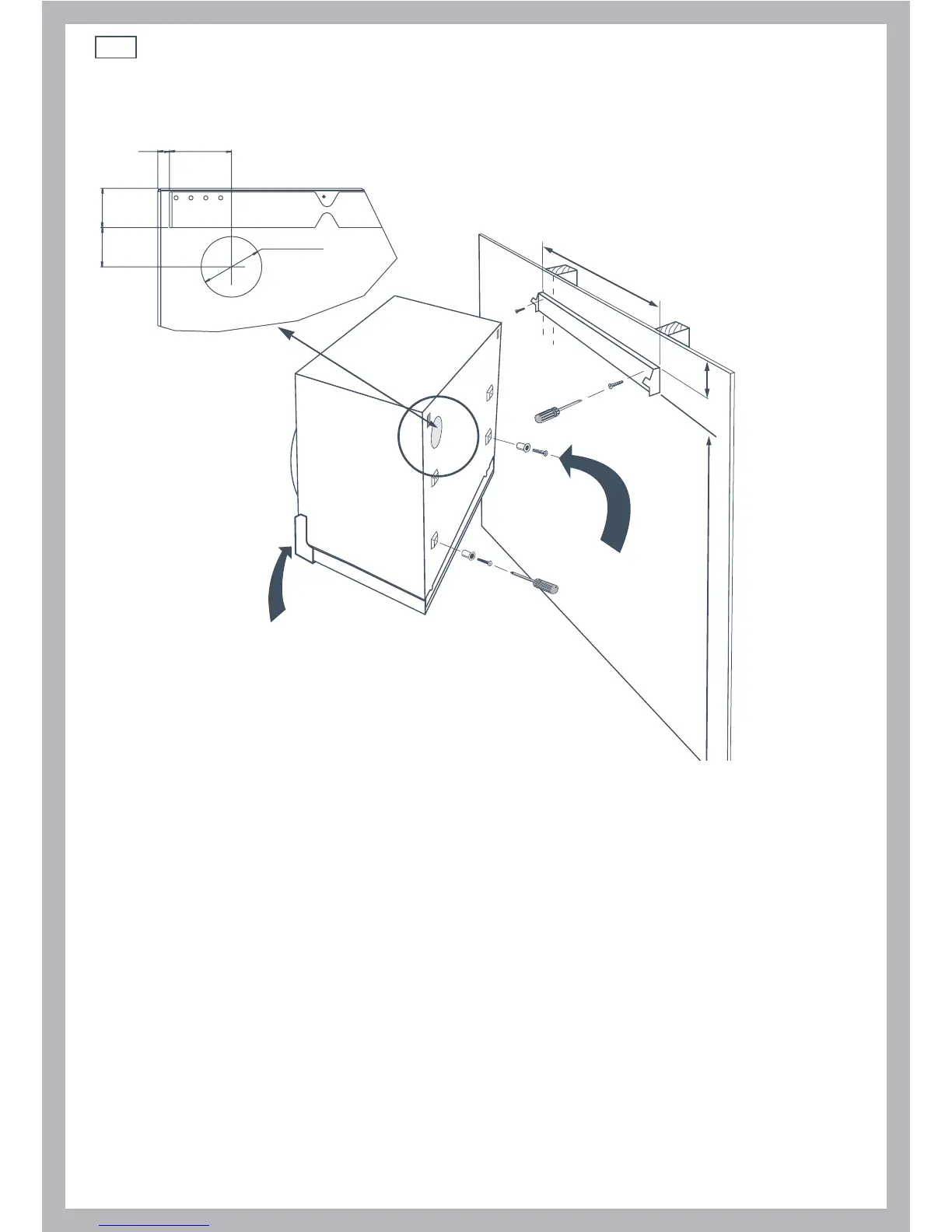

Fig. 12 Wall mounting instructions
Ensure bracket is securely
fastened at both ends
(eg. into the stud). Fit
timber slats if necessary.
Ceiling
70 mm
Bracket holes
For the average
person the
recommended
height for the
bracket is
2070 mm from
the floor
Fit inverted control
panel over the existing
panel if necessary
Fit spacers
as shown
Floor
519 mm
 100 WALL VENT HOLE
20
104
66
66
