Installation Instructions
Converting the regulator
between NG & LP
1
Unscrew the cap from the regulator.
2

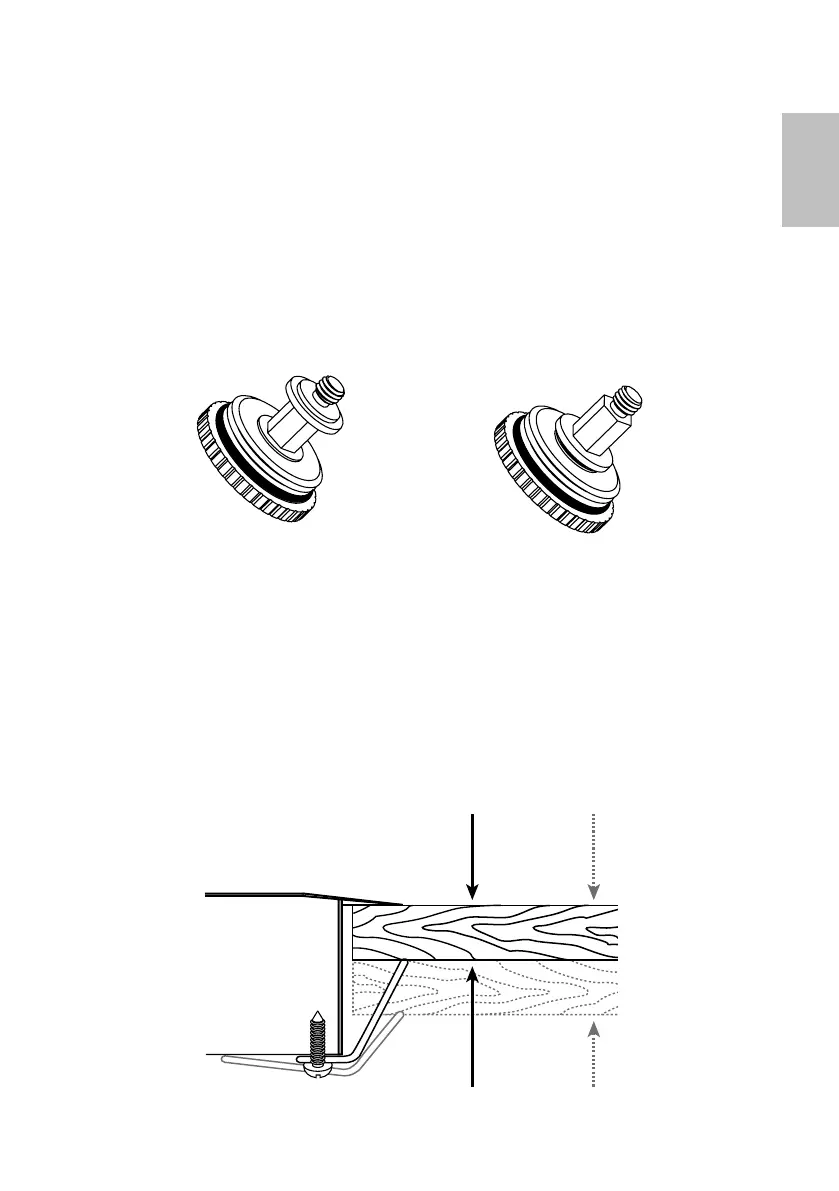

Check the orientation of the plastic
conversion plug, and if necessary, unscrew,
turn over and screw back in (wide section
away from cap for LP and against cap for
NG - see diagram below for appropriate
orientation.
Clamping down the cooktop
1
Place the cooktop into the cutout and
tighten it with the supplied clamps. These
will cope with the countertop thicknesses
3
/
4
”- 2” when used in the two orientations
shown.
Do not over tighten.
3
Replace regulator cap.
4
Test gas pressure (test point provision on
side of regulator). When converting the
regulator for different settings, the function
of the regulator must be checked at a
pressure at least 1” WC (0.036 p.s.i.) above
the specified manifold pressure.
LP NG
