6

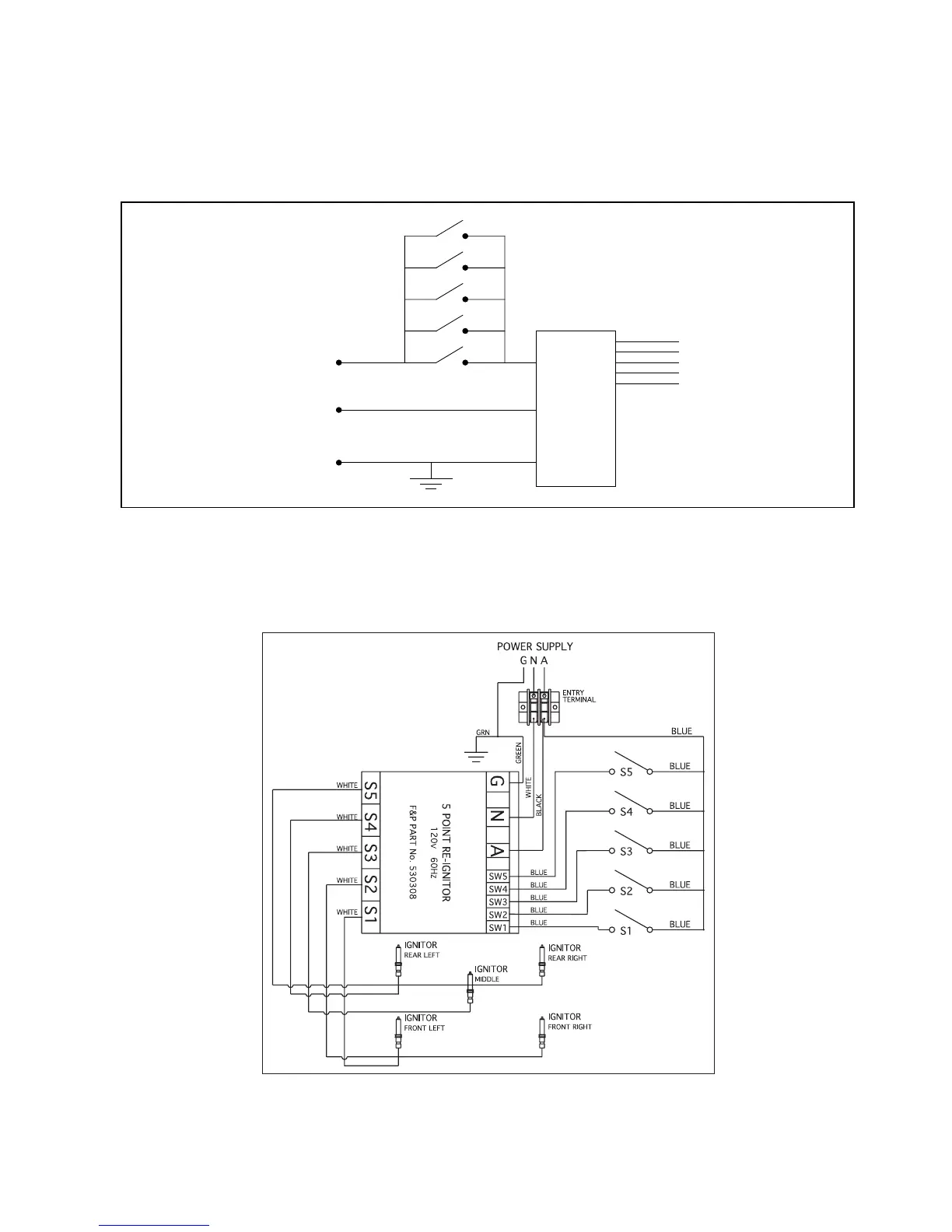

2.0 WIRING DIAGRAMS
2.1 Schematic Wiring Diagram for GC901QT Series Gas Cooktops Ignition
Circuit (NZ, Aust, UK)
2.2 Schematic Wiring Diagram for GC901 Gas Cooktops Ignition Circuit
(USA & Canada Only)
IGNITION
BOX
220/240V
0.6VA
TO
ELECTRODES
P
N
E
IGNITION
SWITCHES
DANGER - 240V
DISCONNECT
POWER BEFORE
SEVICING UNIT
