Fisher & Paykel V3 DD603 - Double Models Plumbing Options; Option 1: Standpipe with Air Gap; Option 2: Waste Disposal; Option 3: Air Break with Drain Hose Joiner

MAX height to top of AIR BREAK (countertop or wall-mounted)
37
3
/
8
” (950mm)
DOUBLE MODELS

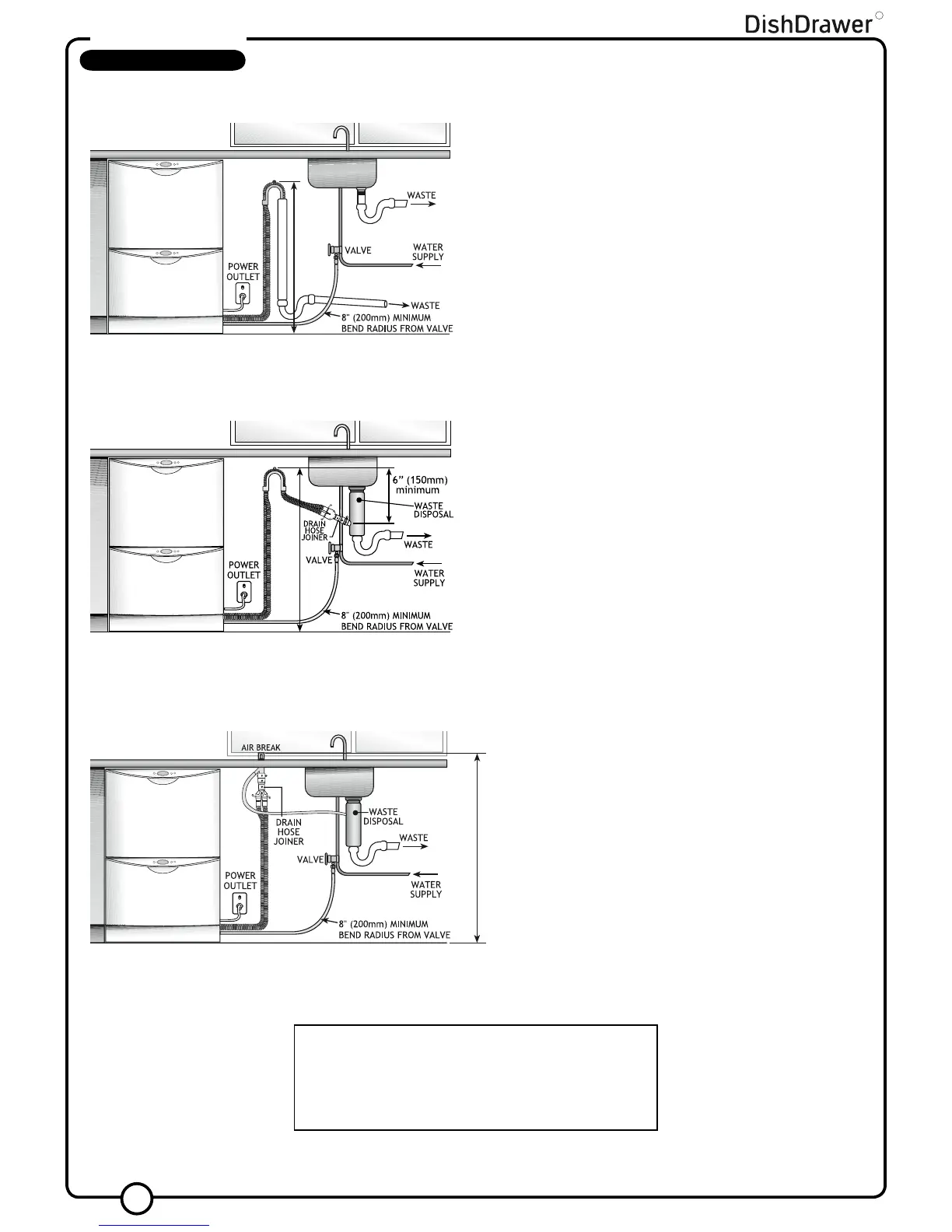

PLUMBING OPTIONS
OPTION 1
DishDrawer® and Standpipe Ø1
1
/
2
” (38mm) with Air Gap.
OPTION 2
DishDrawer® with Waste Disposal.
29
1
/
2
” -34
3
/
4
”
(750mm - 882.5mm)
OPTION 3
DishDrawer® using Air Break with Drain Hose Joiner.
4
R
NOTE: Prefinished Model is shown. There is no variation
in plumbing between models. Option 1 is the preferred
option. Drains will need to be separated to satisfy Kosher
requirements. We suggest you confirm acceptability with
your local Rabbi in respect to Kosher installations.




