Fisher & Paykel V3 DD603 - Single Models Plumbing Options; Option 1: Standpipe with Air Gap; Option 2: Waste Disposal; Option 3: Air Break with Drain Hose Joiner

SINGLE MODELS

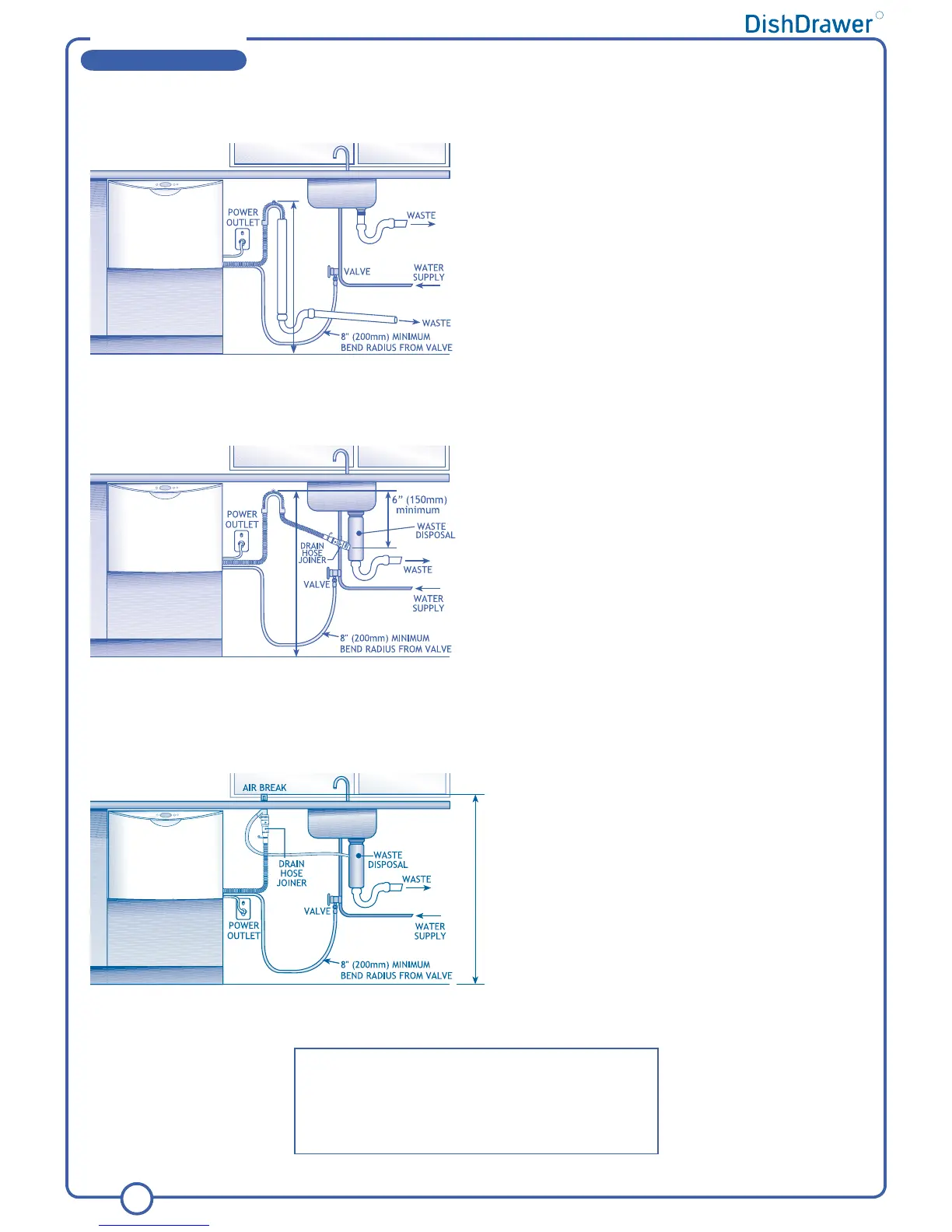

OPTION 1
DishDrawer® and Standpipe Ø1
1
/
2
” (38mm) with Air Gap.
OPTION 2
DishDrawer® with Waste Disposal.
MAX height to top of AIR BREAK (countertop or wall-mounted)
37
3
/
8
” (950mm)




v



v
MMMM




v



v
MMMM
6
PLUMBING OPTIONS
R
NOTE: Prefinished Model is shown. There is no variation
in plumbing between models. Option 1 is the preferred
option.
Drains will need to be separated to satisfy Kosher
requirements. We suggest you confirm acceptability with
your local Rabbi in respect to Kosher installations.
OPTION 3
DishDrawer® using Air Break with Drain Hose Joiner.
