Instruction Manual
D102013X012
8560 Valve
June 2017
19

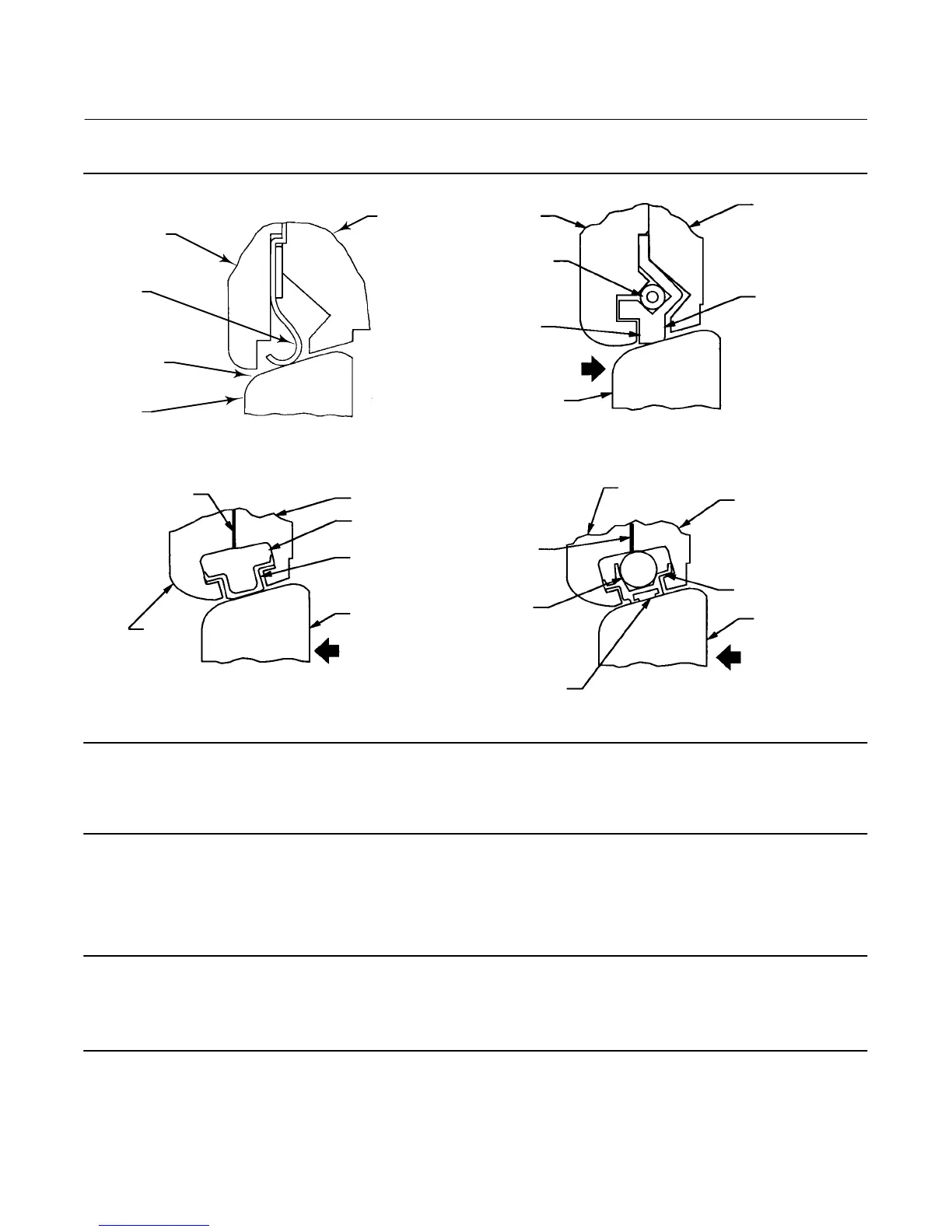

Figure 11. Available Seal Configurations
NOVEX METAL SEAL
PHOENIX III METAL SEAL
PTFE, REINFORCED PTFE, AND UHMWPE SEALS
BIDIRECTIONAL SEAL
UNIDIRECTIONAL SEAL
BIDIRECTIONAL SEAL
A6301-1
RETAINING
RING
SPRING
PRESSURE‐
ASSISTED
SEAL
HIGH
PRESSURE
SHUTOFF
DISC FACE
VALVE
BODY
SEAL
RING
GRAPHITE
GASKET
RETAINING
RING
VALVE BODY
PRESSURE‐
ASSISTED SEAL
SEAL RING
HUB SIDE
OF DISC
HIGH
PRESSURE
SHUTOFF
RETAINING
RING
GRAPHITE
GASKET
VALVE
BODY
SEAL RING
HUB SIDE
OF DISC
HIGH
PRESSURE
SHUTOFF
BACKUP
O‐RING
RESILIENT
INSERT
RETAINING
RING
PRESSURE‐ASSISTED
SEAL
HIGH PRESSURE
SHUTOFF
DISC
FACE
VALVE BODY
B1558‐3
NPS 2 METAL SEAL
2. Installing metal seals:
Note
For metal seals only, it may be necessary to apply a dry film lubricant or equivalent moly disulfide to the sealing surfaces of the
disc, seal and the seal retainer groove. Prior to applying the lubricant the sealing surfaces should be inspected for injurious defects.
Surfaces can be polished using a scuffing hand pad or equivalent. The edge of the seal that contacts the retaining ring groove
should also be inspected and polished if necessary.
Note
Use the appropriate lubrication on parts when used in oxygen service, or where the lubrication is incompatible with the process
media.
a. Rotate the disc to the open position as shown in figure 10.
