REMOVAL TOOL DIMENSIONS
Shaft Diameter ∅A B C ∅D
mm
12.7 3.91 28.43 6.35 4.19
15.88 4.60 38.10 7.87 23.37
19.05 5.13 44.45 9.65 5.41
25.4 7.00 59.44 12.70 7.26
31.75 9.50 76.20 19.05 9.78
38.1 10.82 88.90 19.05 11.10
44.45 12.37 114.30 22.35 12.65
Inch
1/2 0.154 1.12 0.25 0.165
5/8 0.181 1.50 0.31 0.192
3/4 0.202 1.75 0.36 0.213
1 0.275 2.34 0.50 0.286
1‐1/4 0.374 3.00 0.75 0.385
1‐1/2 0.426 3.50 0.75 0.437
1‐3/4 0.487 4.50 0.88 0.498
INSTALLATION TOOL DIMENSIONS
Shaft Diameter ∅A ∅B ∅C D E
mm
12.7 12.7 3.68 6.35 127.0 4.83
15.88 12.7 4.57 7.62 127.0 4.83
19.05 12.7 5.23 8.89 127.0 4.83
25.4 12.7 7.00 10.41 127.0 4.83
31.75 19.05 10.00 13.59 146.0 6.35
38.1 19.05 11.56 15.24 146.0 6.35
44.45 19.05 31.21 16.76 146.0 6.35
Inch
1/2 0.50 0.145 0.250 5.00 0.19
5/8 0.50 0.180 0.300 5.00 0.19
3/4 0.50 0.206 0.350 5.00 0.19
1 0.50 0.275 0.410 5.00 0.19
1‐1/4 0.75 0.395 0.535 5.75 0.25
1‐1/2 0.75 0.455 0.600 5.75 0.25
1‐3/4 0.75 0.520 0.660 5.75 0.25
1
A6356
NOTE:
REMOVE THE HOLLOW PIN FROM THIS SIDE OF THE DISC HUB.
INSTALL THE HOLLOW PIN FROM THE OPPOSITE SIDE OF DISC HUB.
1
HOLLOW PIN
VALVE DISC
REMOVAL TOOL
DISC HUB
INSTALLATION
TOOL
0.03 X 45°
0.010 UNDERCUT
PER SIDE
0.010 X 45°
0.06 X 45°
TAPER PIN AND HOLLOW PIN
LOCATION

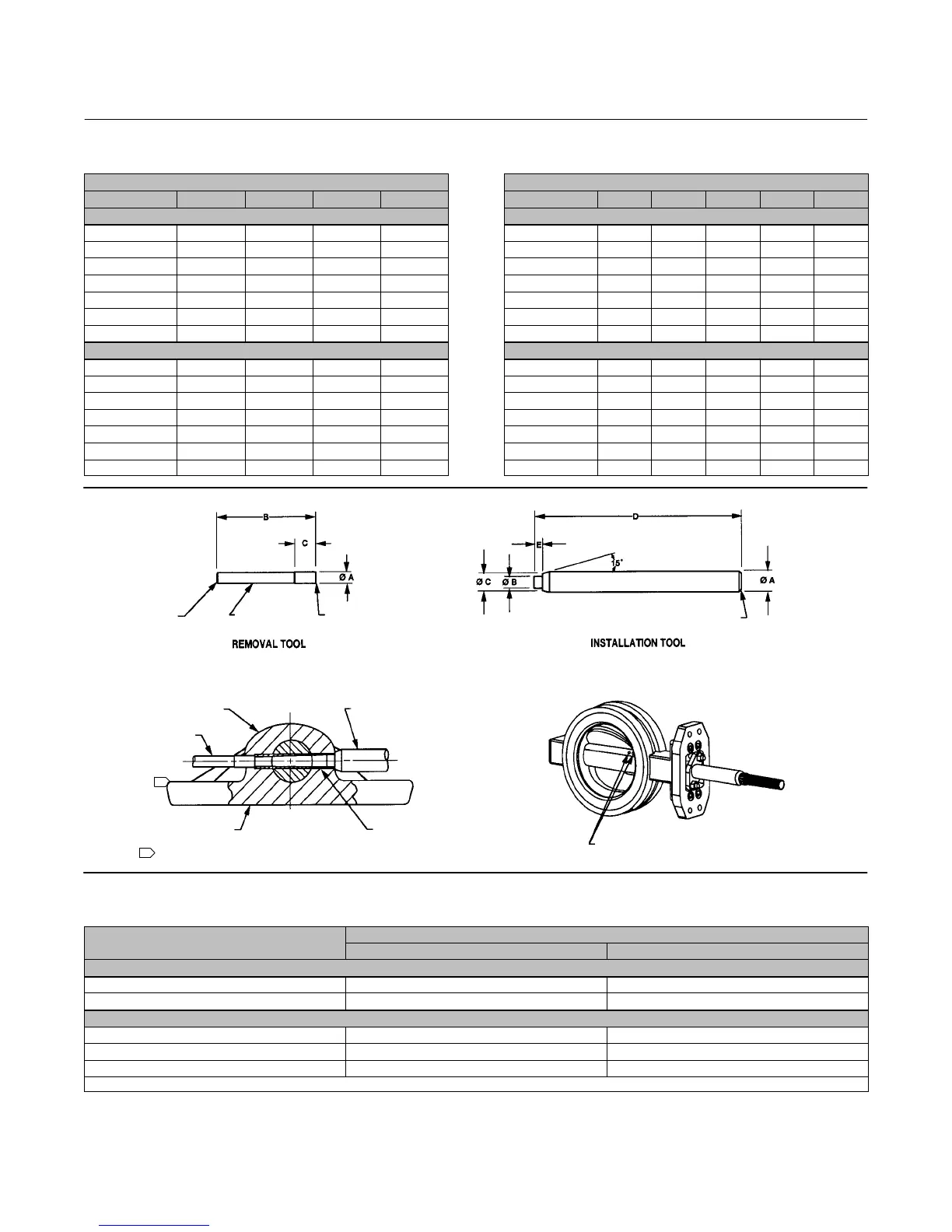

Figure 13. Taper Pin and Hollow Pin Removal and Installation
Table 7. Recommended Bolt Torques for Actuator/Mounting Cap Screws and Nuts
VALVE SIZE, NPS
RECOMMENDED BOLT TORQUE
NSm lbSft
CL150 Valves
2
(1)
, 3, 4, 6, & 8 88 65
10 & 12 135 100
CL300 Valves
2, 3, 4, & 6 88 65
8 & 10 135 100
12 183 135
1. Value for NPS 2 also applies to CL600 Valves.
