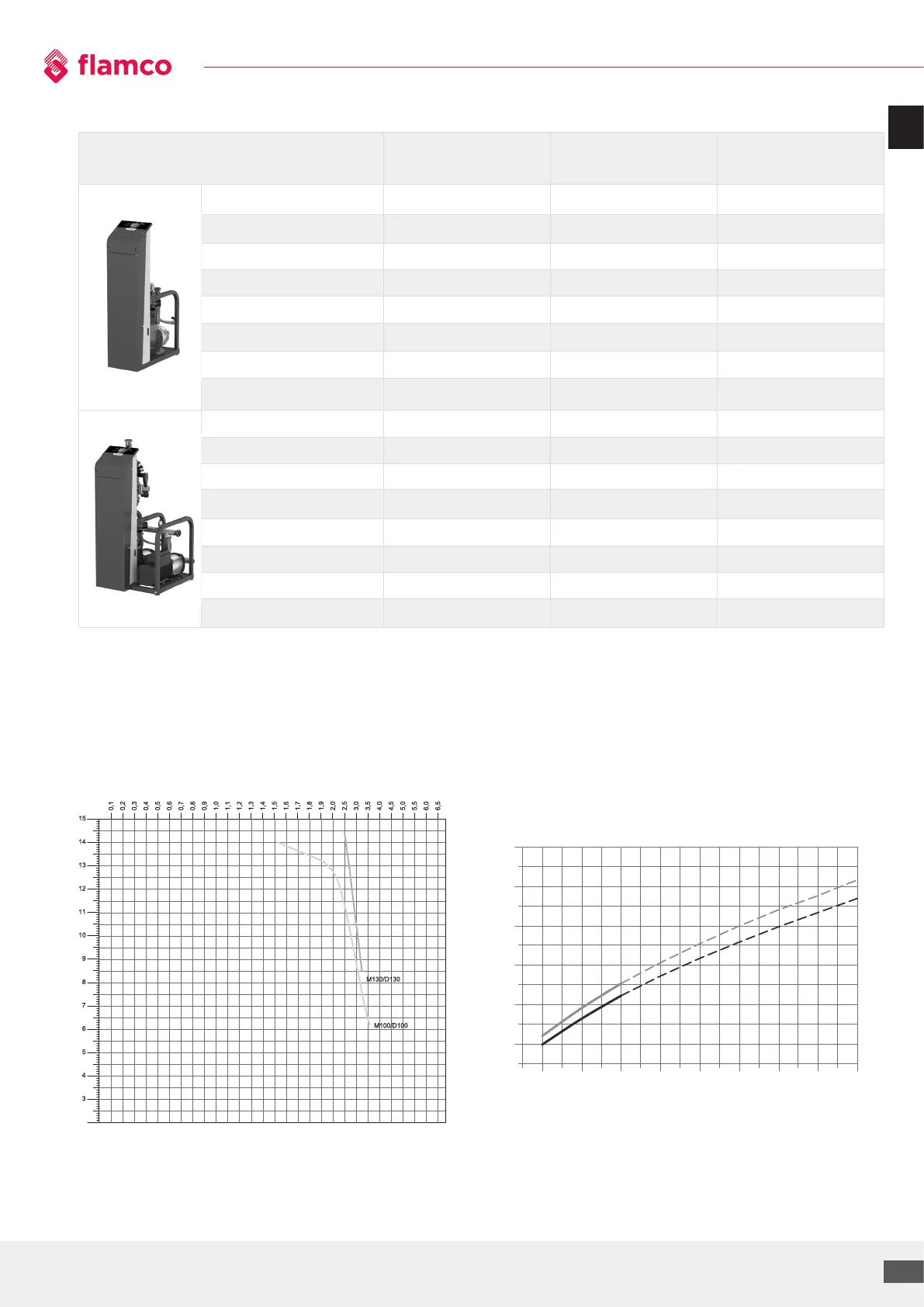

Control module external pressure retention, operational characteristics
Type Permissible positive operating
pressure [bar]
Permissible media
temperature min. / max. [°C]
Permissible environmental
temperature min. / max.[°C]
MP M-2-50 (MM G4) 6 3 / 70 3 / 40
MP 2-3-50 (M02 G4) 10 3 / 70 3 / 40
MP 10-1-50 (M10 G4) 10 3 / 70 3 / 50
MP 20-2-50 (M20 G4) 10 3 / 70 3 / 40
MP 60-1-50 (M60 G4) 10 3 / 70 3 / 50
MP 80-1-50 (M80 G4) 16 3 / 70 3 / 50
MP 100-1-50 (M100 G4) 16 3 / 70 3 / 50
MP 130-1-50 (M130 G4) 16 3 / 70 3 / 50
DP M-2-50 (DM G4) 6 3 / 70 3 / 40
DP 2-3-50 (D02 G4) 10 3 / 70 3 / 40
DP 10-1-50 (D10 G4) 10 3 / 70 3 / 50
DP 20-2-50 (D20 G4) 10 3 / 70 3 / 40
DP 60-1-50 (D60 G4) 10 3 / 70 3 / 50
DP 80-1-50 (D80 G4) 16 3 / 70 3 / 50
DP 100-1-50 (D100 G4) 16 3 / 70 3 / 50
DP 130-1-50 (D130 G4) 16 3 / 70 3 / 50
Flow pressure [bar]
2
3
4
5
6 7 8 9 10
80
70
60
50
40
30
With backflow preventer
(accessory, optional extra)
Without back-flow
preventer
Volume flow [l/min]
