For slide control models proceed as follows:

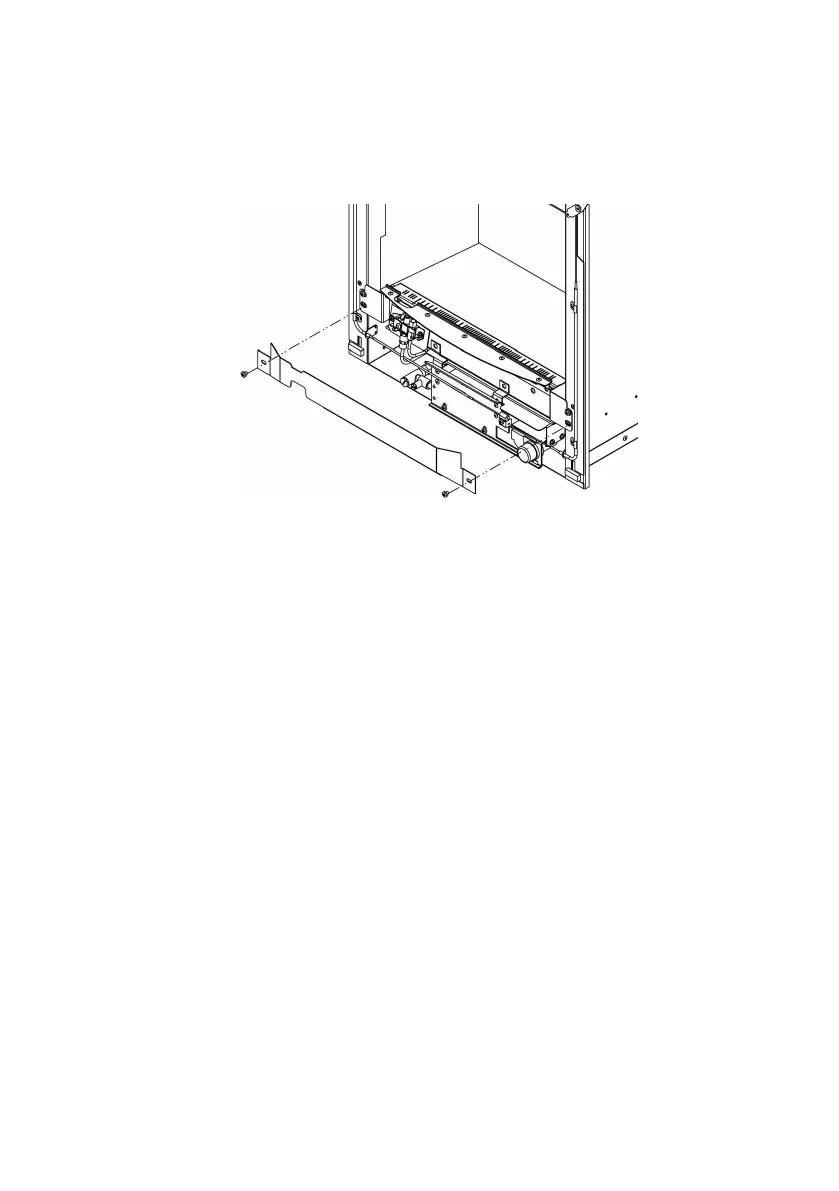

2.2.4 Remove the burner heat shield from the front of the fire box to allow
access to the burner. See figure 5 below.
Fig. 5
2.2.5 Ensure that the hearth is protected from damage and carefully lift the
fire box into the fire opening, then slide it back into position. Check that
the fire box flange fits flush to the sealing face of the fire surround or
wall with no gaps present.
2.2.6 Remove the burner. To allow burner removal, the control lever operat
ing cable must be removed. The control lever operating cable can be
seen running across the base of the fire, below the burner. To release
the cable, unscrew the cable securing screw located in the centre of the
aluminium operating arm and release the front part of the operating
arm, thereby freeing the cable from the burner. Not the securing screw
is retained in the block to prevent it from being lost. Release the other
end of the cable by pushing the cable forwards to the right, i.e. into the
operating arm so as to release the tension. Pull the cable nipple out of
the retaining hole and remove the cable through the slot in the
operating arm. See figure 6 overpage
12
