3.10 FITTING THE TRIM (RHAPSODY / CALYPSO MODELS)
3.10.1 Refitting the trim is achieved by locating the rear flange of the trim over
the flange on the firebox mounting face at the top and each side.
3.11 FITTING THE TRIM OR FASCIA (KENILWORTH / LINEAR /
OPULENCE / EXPRESSSION MODELS)
3.11.1 The trim is held in position on the fixing flange by magnets.
3.12 FITTING THE TRIM - CONTEMPORARY & TRADITIONAL CARESS
MODELS ONLY

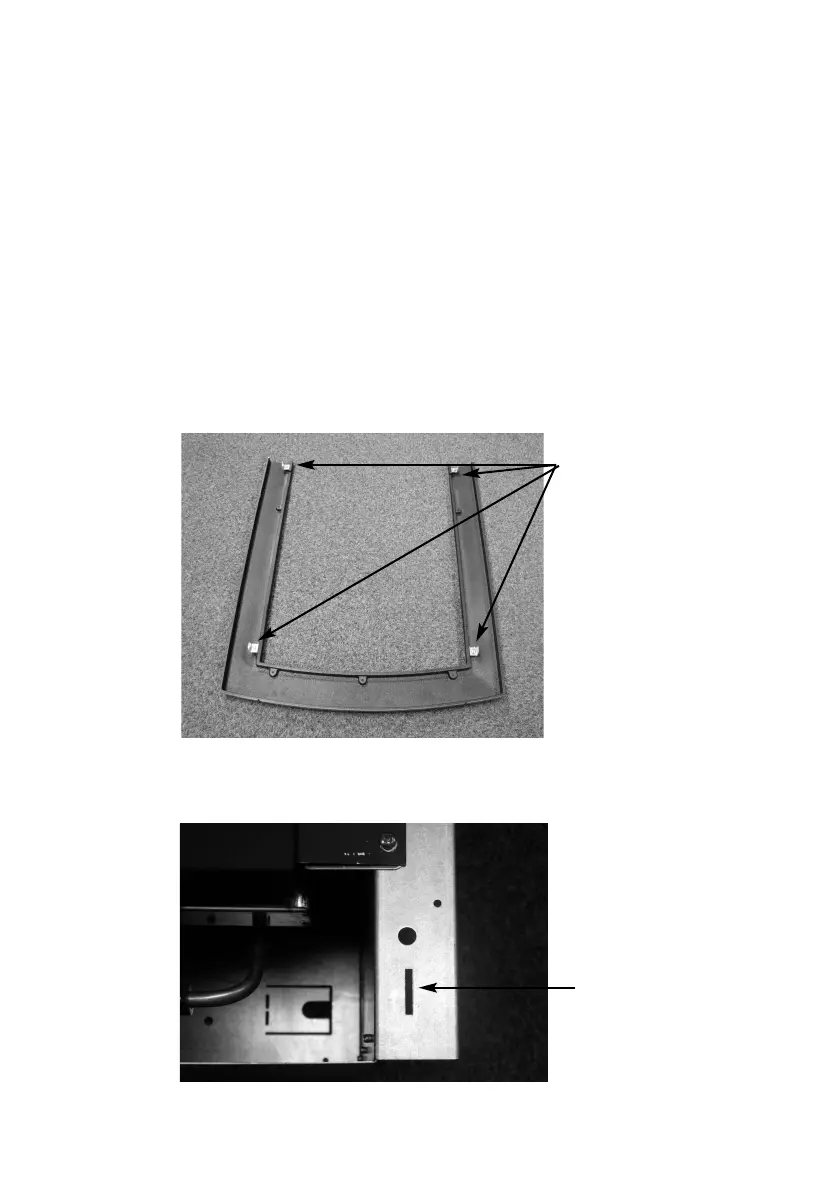

3.12.1 The 4 off mounting brackets are supplied fitted to the cast trim as
shown below in figure 33.
Fig. 33
3.12.2 Fit the fascia to the firebox by hooking the mounting brackets into the
slots on the firebox as indicated in figure 34.
Fig. 34
37
4 off trim
mounting
brackets
Image shows
bottom right hand
slot, further slots
are position on
mounting flange at
opposite side and
top L/H / R/H
mounting flanges
