Continue for all models

Whilst the fire box is still in position, decide which side the gas supply is to enter

the fire from. If concealed pipe work is required plan the pipe run to enter the fire

box through one of the openings in the sides of the fire box below the fuelbed

support panel and connect to the isolating / inlet elbow. The gas connection to the

appliance should be made to the isolating / inlet elbow using 8mm rigid tubing.

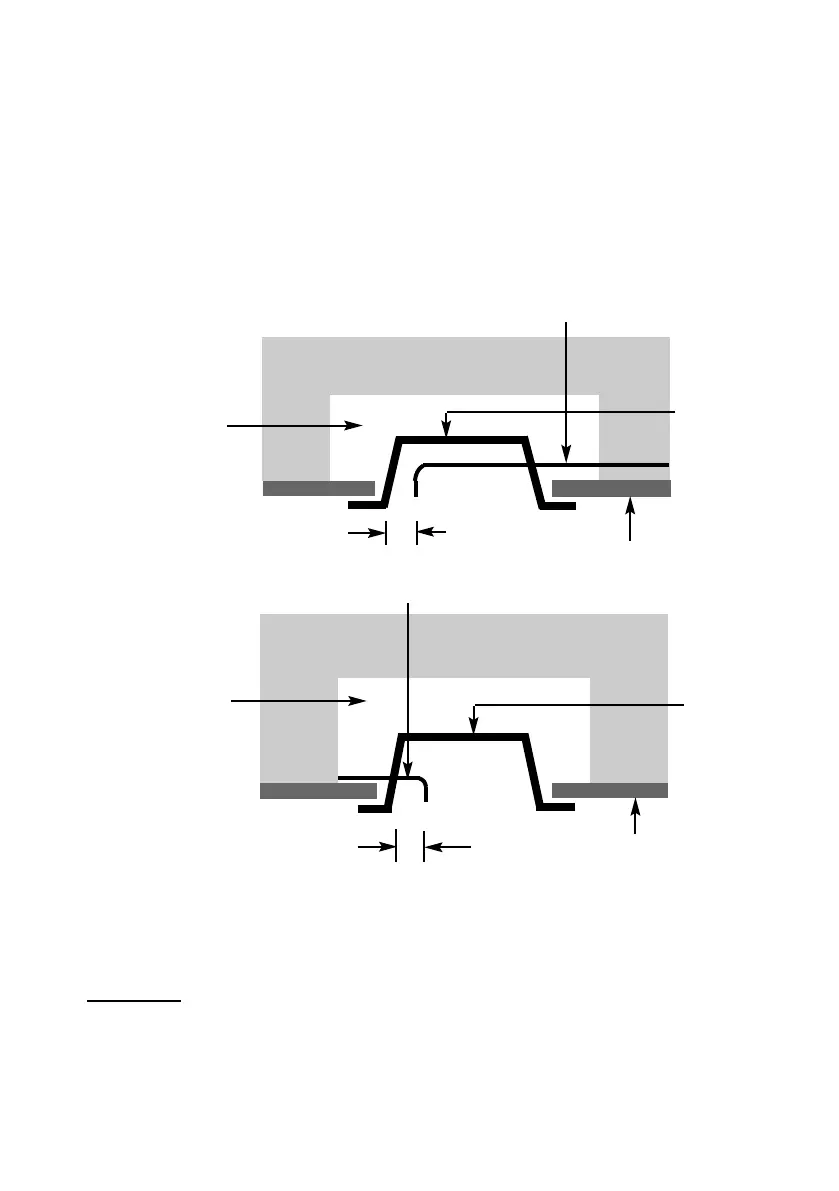

There must be no soldered joints within the firebox. See figure 10 & 11 below for

suggested concealed pipe layouts.

Fig. 10

Fig. 11

Note : Before breaking into the gas supply a tightness test should be carried

out to establish that the existing pipework is sound.

Carefully withdraw the fire box from the opening to enable the gas supply and fire

fixing to be completed.

IMPORTANT : THE 45MM GROMMET SUPPLIED IN THE LOOSE ITEMS MUST BE USED

TO SEAL THE GAS INLET POINT UTILISED ON THE FIREBOX. FAILURE TO SEAL

THIS INLET POINT COULD RESULT IN FLAME REVERSAL AND DAMAGE TO THE

CONTROLS ON THE FIRE. BFM EUROPE ACCEPT NO RESPONSIBILITY FOR

DAMAGE TO THE FIRE AS A RESULT OF FAILURE TO FOLLOW THIS REQUIREMENT.

Firebox

Fireplace

Builders

Opening

Gas Supply

Firebox

Approx.

40mm
