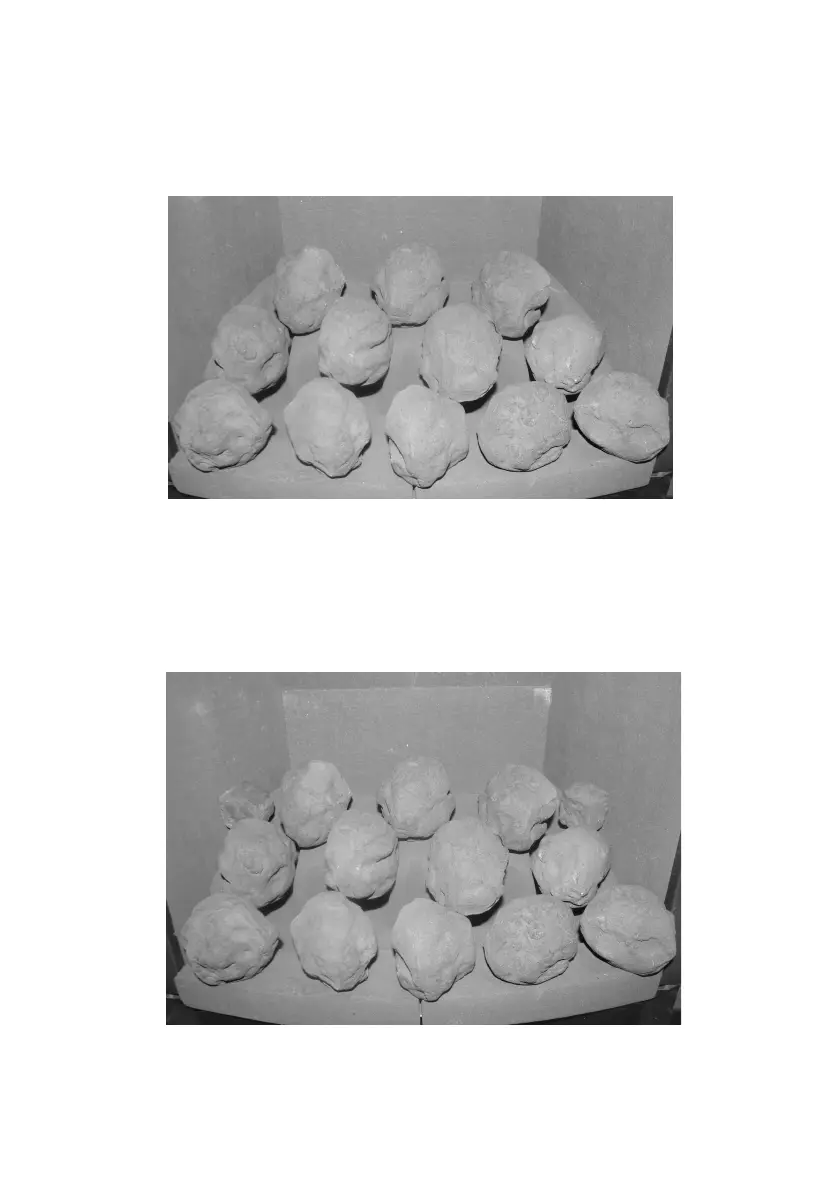

3.1.5
Select
three
of
the
large
coals
and
arrange
along
the
rear
of
the
fuelbed,
using
the
ribs
in
the
rear
of
the
fuelbed
as
a
guide
for
placement.
(See
figure
18
below)
Fig.
18
3.1.6
Select
two
small
coals
and
position
to
fill
the
gaps
at
each
end
of
the
third
row
of
coals,
as
shown.
(See
figure
19
below).
Fig.
19
22
21
23
Table of Contents
Table of Contents
2
Information and Requirements
3
Appliance Information
3
Conditions of Installation
5
Flue and Chimney Suitability
5
Fireplace / Surround Suitability
6
Shelf Position
6
Chimney Inspection
6
Fire Place Opening / Catchment Space
7
Fitting to Metal Flue Boxes
8
Hearths
9
Pre-Cast Flue Installations
9
Spillage Monitoring System
9
Installation of Fire
10
Unpacking the Fire
10
Installing the Fire Box
10
Gas Tightness and Inlet Pressure (Manual Control Models)
18
Gas Tightness and Inlet Pressure (Slide Control Models)
18
Gas Tightness and Inlet Pressure (Remote / Electronic Fire Control Models)
19
Assembling Fuel Bed and Commissioning
20
Assembling the Ceramics and Fuel Bed (Coal/Pebble Variants)
20
Lighting the Appliance (Manual Control Models)
27
Lighting the Appliance (Slide Control Models)
28
Fitting the Batteries (Remote & EFC Models)
29
Manually Lighting Remote or EFC Models
30
Lighting the Appliance (Remote Control Models)
32
Lighting the Appliance (Electronic Fire Control Models)
33
Checking for Clearance of Combustion Products
35
13 Fitting of Trims / Frets / Fascia's as Applicable
37
Maintenance
39
Removal of the Burner Assembly (Manual Control Models)
39
Removal of the Piezo Igniter (Manual Control Models)
39
Removal of the Control Tap (Manual Control Models)
40
Removal of the Pilot Assembly (Manual Control Models)
40
Removal of the Burner Assembly (Slide Control Models)
40
Removal of the Battery Igniter (Slide Control Models)
41
Replacing the Battery (Slide Control Models)
41
Removing the Oxy-Pilot Assembly (Slide Control Models)
42
Replacing the Control Cable (Slide Control Models)
42
Removal of the Burner Assembly (Remote & Electronic Fire Control Models)
43
Removal of the Valve (Remote & Electronic Fire Control Models)
43
Removal of the Oxy-Pilot Assembly (Remote & Electronic Fire Control Models)
43
Replacing the Batteries (Remote & Electronic Fire Control Models)
45
Removal of the Trim Switch (Electronic Fire Control Models)
45
Part Shortlist / Fret Information
46
Conditions of Installation & about Your New Fire
47
5.2 Operating the Fire - Manual Control Models
49
5.3 Operating the Fire - Slide Control Models
50
Operating the Fire (Remote Control Models)
52
Operating the Fire (Electronic Fire Control Models)
54
Manually Operation of Remote or EFC Models
56
5.8 Replacing the Batteries in Slide and Remote / Electronic Fire Control Models
57
5.10 Spillage Monitoring System/ Cleaning Instructions
58
Re-Assembling the Ceramics and Fuel Bed (Coal/Pebble Variants)
59
