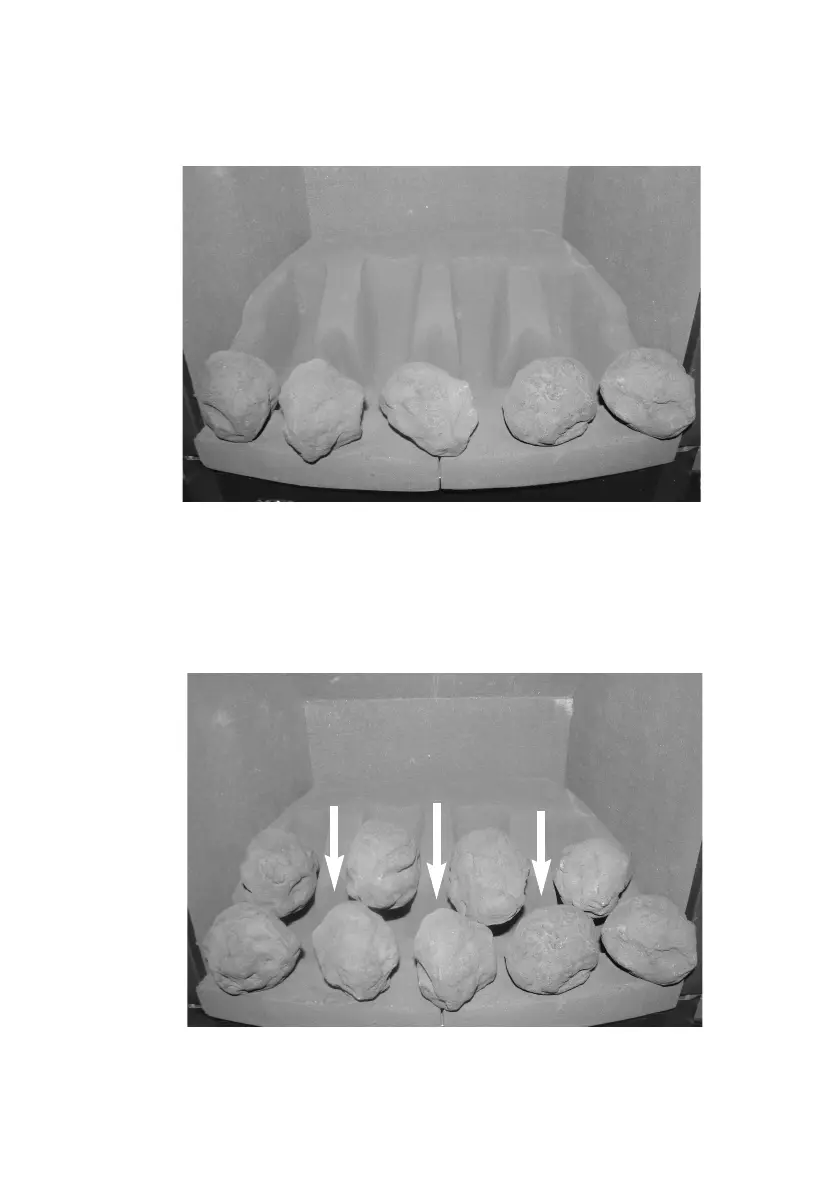

5.11.3 Fit five of the large sized coals onto the front ceramic rail, ensuring
that they are evenly spaced. Use the recess’s in the front ceramic rail
as a guide for placement. (See figure 7 below)
Fig. 7
5.11.4 Select four of the large coals and arrange behind the front row of coals,
ensuring that flame paths as indicated below are not interupted. Select
two of the small coals and place at each end of the second row.
(See figure 8 below)
Fig. 8
60
