3.9.4 Caress Contemporary Models - Attach L/H & R/H brackets to fender
with M6 pozi screws which locate onto the burner retaining brackets at
each end of the burner assembly. See figures 41, 42 & 43 below.
Fig. 41
Fig. 42
Fig. 43
42

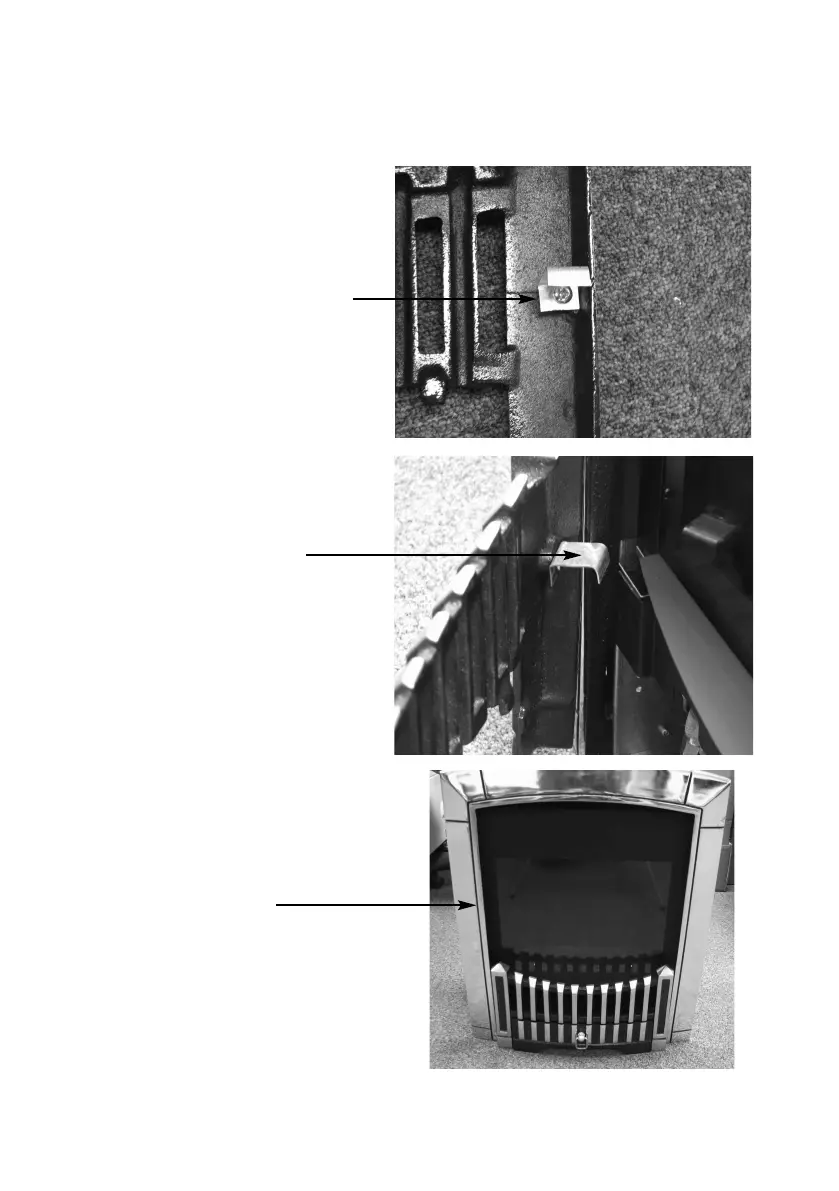

Hook fret mounting
brackets over the
burner heat shield
brackets as indicated
Attach fret mounting
brackets as shown
Completd correct
assembly of fret and
fascia to product
