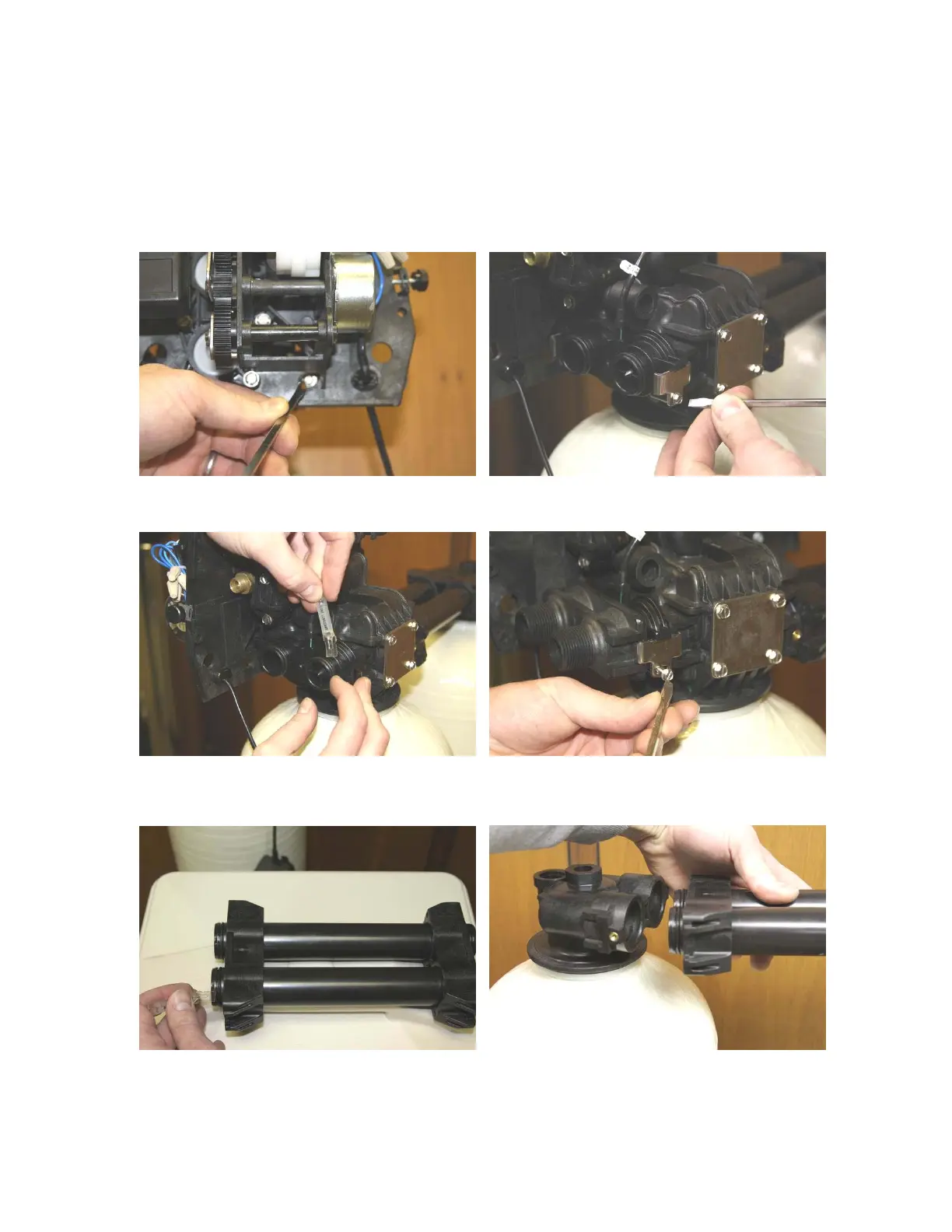

• Using the included silicone lubricant packet, lubricate the o-rings on the
9100SXT Valve meter assembly as shown in figure 10 below.
• Finally, push the yoke or bypass valve snugly to the back of the 9100SXT
valve. Use the clips & screws to secure each side of the yoke or bypass valve
as shown in Figure 11 below.
FIGURE 8 FIGURE 9
FIGURE 10 FIGURE 11
FIGURE 12 FIGURE 13
