• Locate the included interconnect adaptor and lubricate all four o-rings as shown in
figure 12 on the preceding page.
• Push the interconnect assembly onto the secondary portion as shown in figure 13
on the preceding page.
• Use the included screws and clips to secure both sides of this connection as shown
in figure 14 below.
• Push the interconnect assembly onto the secondary portion as shown in figure 15
below.
• Use the included screws and clips to secure both sides of this connection as shown
in figure 16 below.

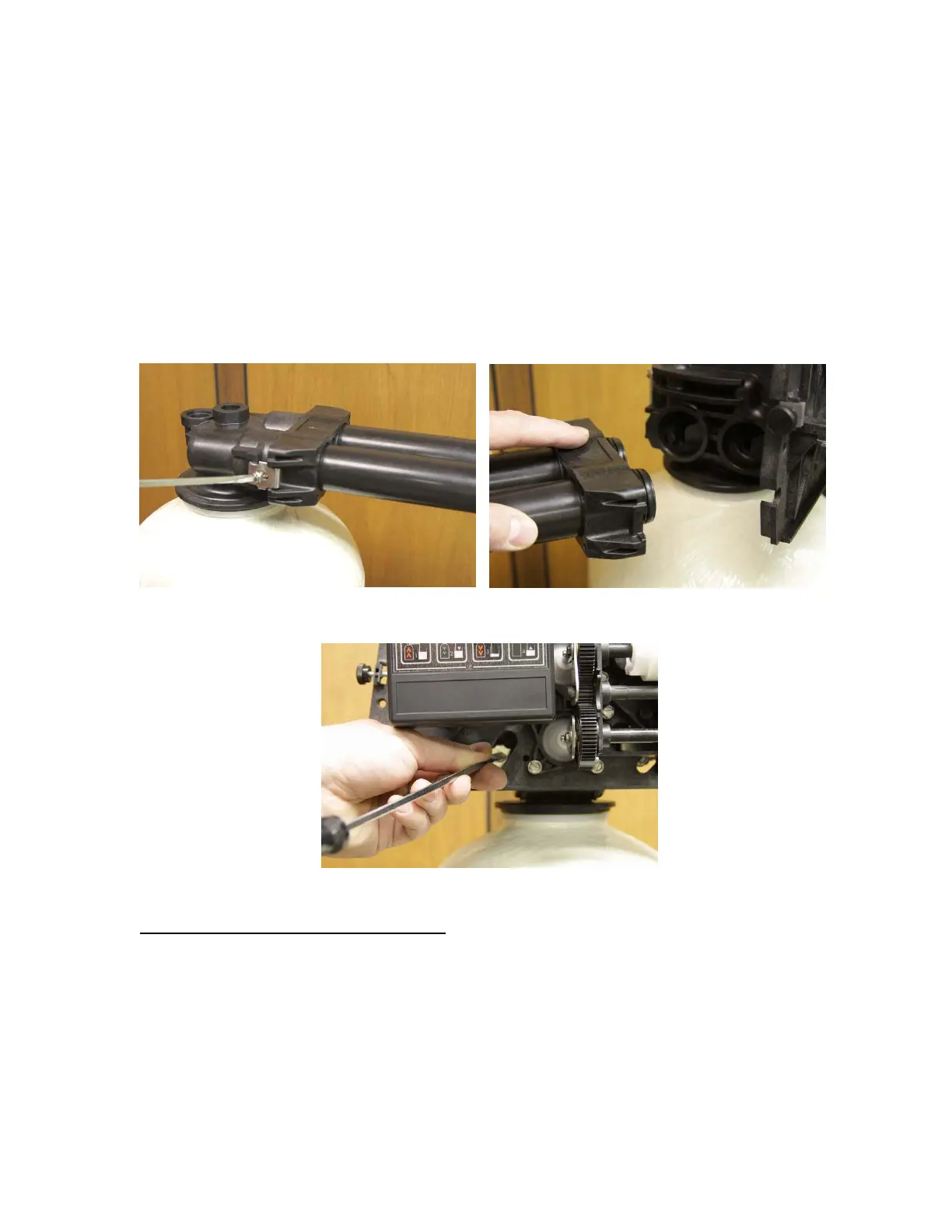

FIGURE 14 FIGURE 15
FIGURE 16
Plumbing your Fleck 9100SXT Meter:
• Before beginning your installation, please first familiarize yourself with the “IN”
and “OUT” on the Fleck 9100SXT Meter Valve. In order to prevent damage to
your home and to the softener system, install the softener according to the
“IN” and “OUT” arrows on the softener valve!
• Find the main shut-off valve for your house and turn it to the “OFF” position. If
you have a private well, this valve should be near your well pressure tank. If you
have a city water supply, your valve should be near your water meter.
