L 10-10 125, L 810, L 1001
19

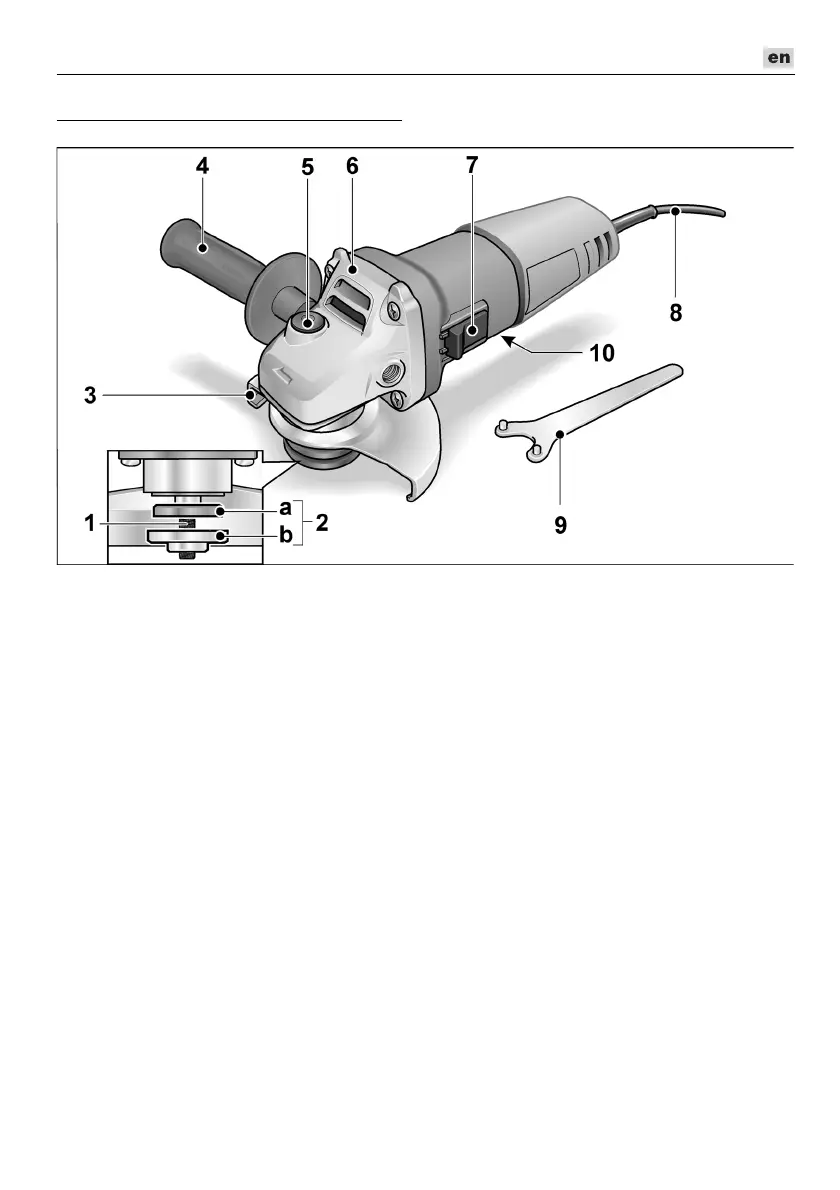

Overview
1 Spindle
2 Threaded flange
a Clamping nut
b Clamping flange
3Guard
4 Handle
Handle can be fitted to the left or right.
5 Spindle lock
Secures the spindle when the tool
is changed.
6 Gear head
With air outlet and direction-of-rotation
arrow.
7 Switch rocker
Switches the power tool on and off.
With notched position for continuous
operation.
8 4.0 m power cord with plug
9 Face spanner
10 Rating plate (not illustrated)
