Modbus Server Supplement to User Manual - ENGLISH
86 SU_ModbusV2-8, 2015-03-02
After the activation, only the user-defined register addresses are used for the transmission of data.
The text on the button in the start window changes from Activate CRT to Deactivate CRT. The corresponding set state is
displayed under Device Information in the start window (see Fig. B.11).
B.4 Expert Mode
To make troubleshooting more effective, the Expert mode can be activated. In the Expert mode, the word order of each
measured value is displayed (see Fig. B.12).

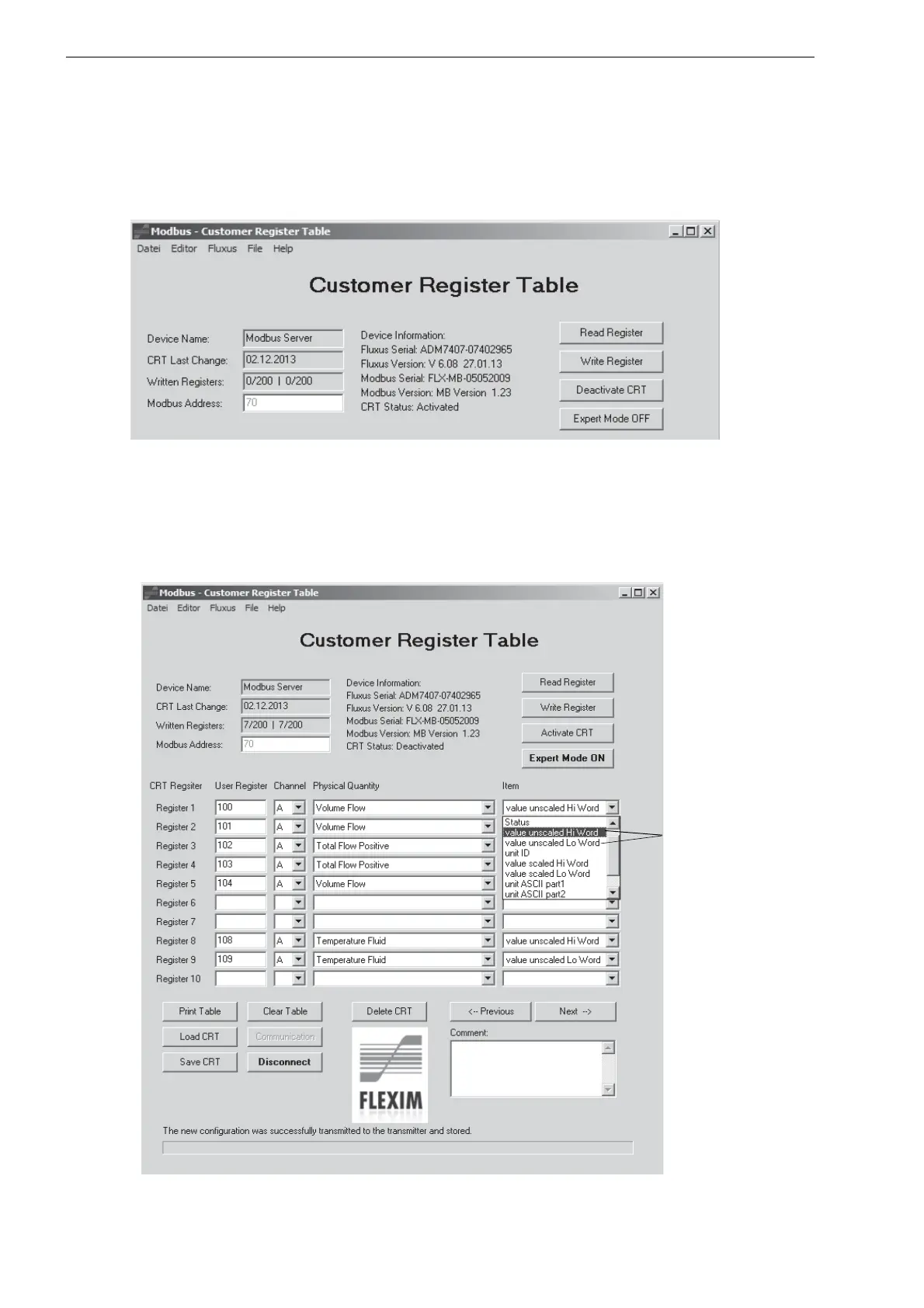

Fig. B.11: Start window (part)
Fig. B.12: Start window (Expert mode)
distinction
between hi word
and lo word
