FIRE DAMPER 1–6
Fire damper activated.
Status:
1. The damper regulates
2. The damper is closed
3. The damper is open
4. The damper is stationary
5. The damper is not closed
6. The damper is not open
2.11. OVERVIEW SCREEN 2
2.11.1. EcoNordic W4 only

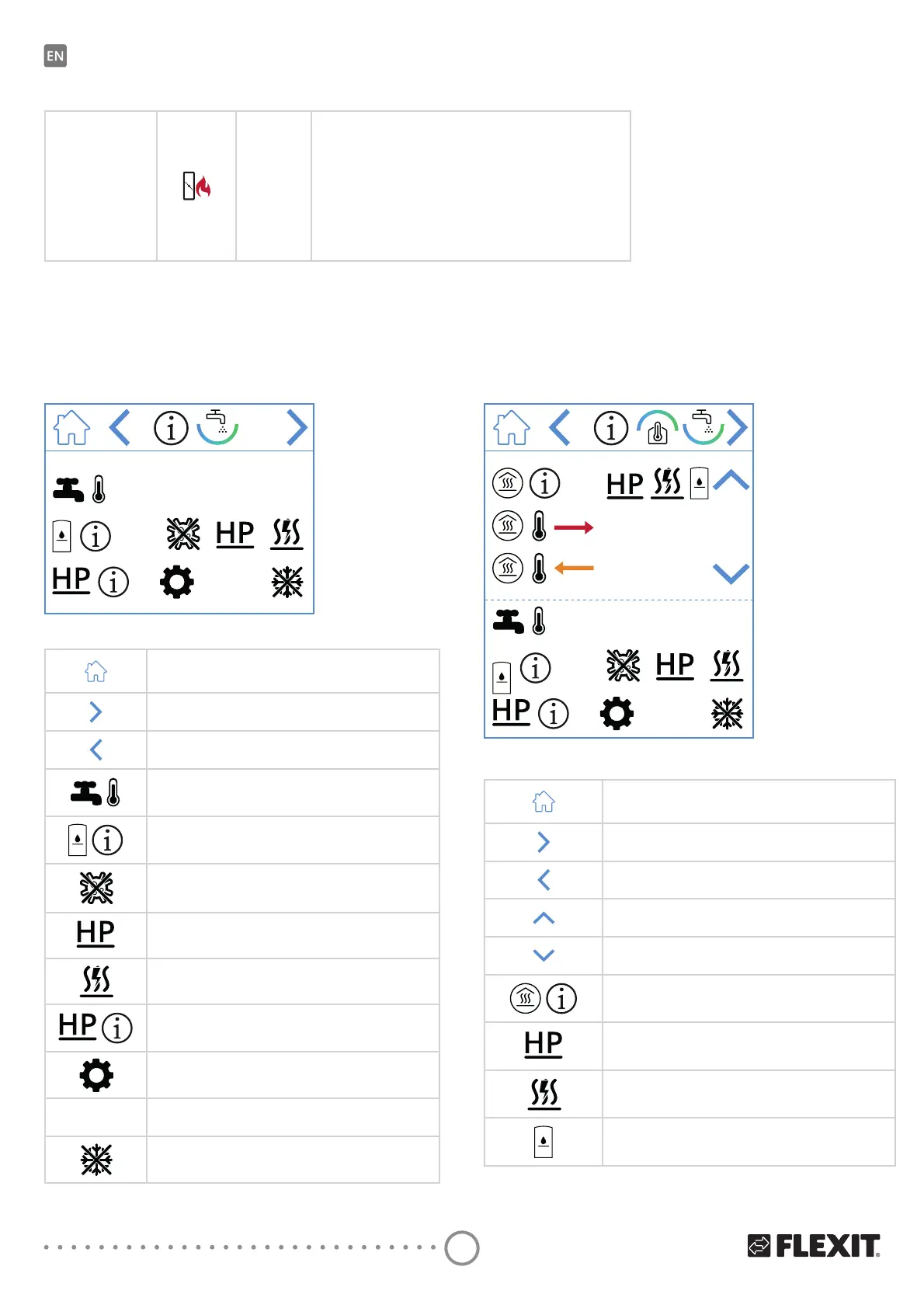

This screen shows an overview of functions related to
hot water and the heat pump.
61.3 °C
ON/OFF
Overview screen icons – EcoNordic W4
Open the Home screen.
Go to the next menu.
Return to the previous menu.
Current peak temperature in the tank
(hot water temp.).
Current status of the tank.
Legionella running active.
7KHWDQNLVUHȴOOHGIURPWKHKHDWSXPS
7KHWDQNLVUHȴOOHGIURPWKHWKURXJKȵRZKHDWHU
(electric).
Current status of the heat pump.
The heat pump is in service mode.
ON/OFF
The heat pump is in operation/stopped.
7KHKHDWSXPSLVGHLFLQJ
2.12. OVERVIEW SCREEN 2
2.12.1. EcoNordic WH4 only
This screen shows an overview of functions related to
hot water, heating and the heat pump.
61.3 °C
ON/OFF
Overview screen icons – EcoNordic WH4
Open the Home screen.
Go to the next menu.
Return to the previous menu.
Scroll up the menu.
Scroll down the menu.
Current status of the heat output.
The heat output is fed from the heat pump.
7KHKHDWRXWSXWLVIHGIURPWKHWKURXJKȵRZKHDWHU
(electricity).
The heat output is fed from the tank.
18.1 °C
14.3 °C
