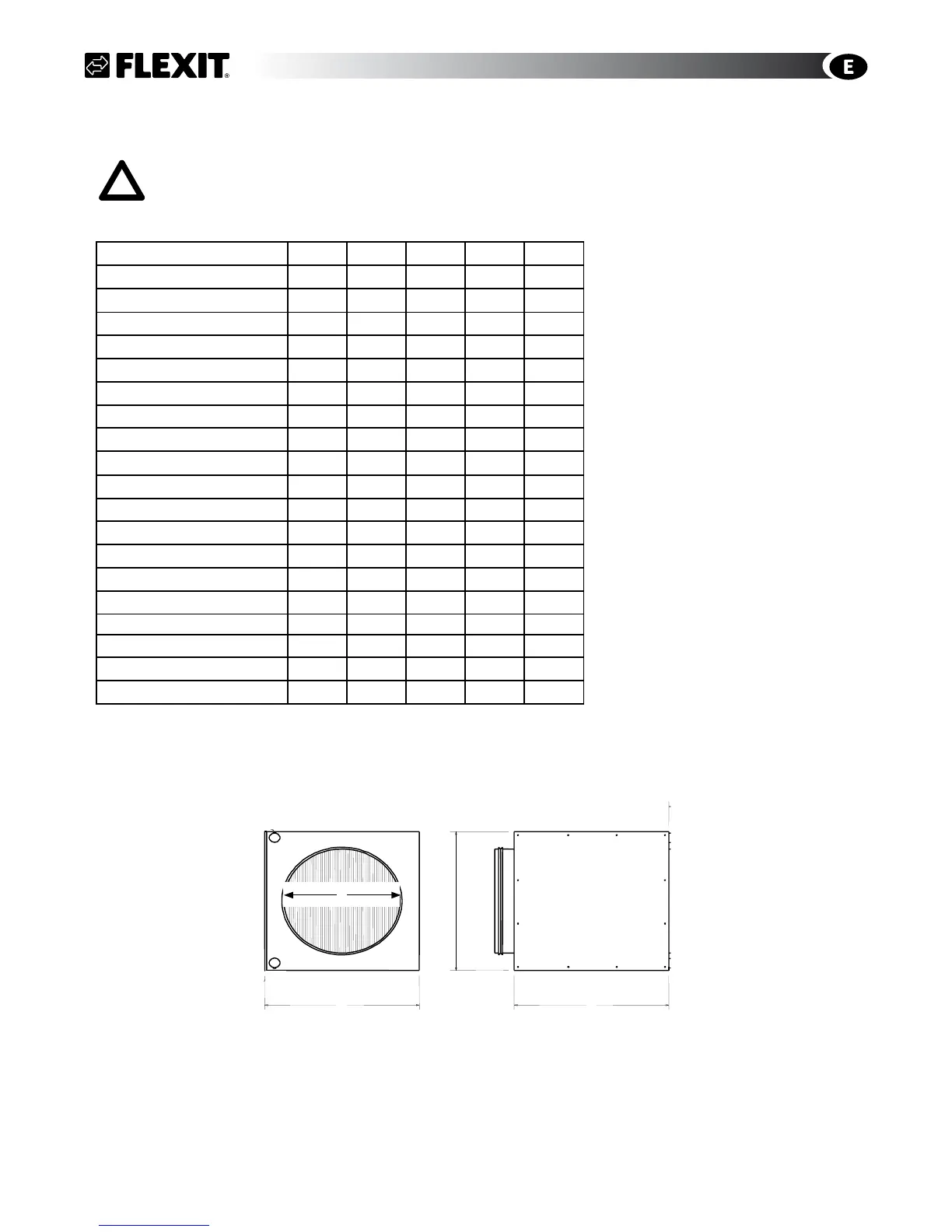

Flexit SL4 R - 7 Plumbing Works; Technical Spesifications Water Battery

11
WATER BATTERY
7 Plumbing Works
All plumbing must be performed by a qualified plumber.
7.1 Technical Spesifications Water Battery
Water temp. In °C 80 70 60 50 40
Water temp. Out °C 60 50 40 30 30
S4R/SL4R
Water pressure l/s 0,03 0,03 0,02 0,02 0,02
Pressure drop waterside kPa 2,99 1,98 1,1 1,24 1,8
Max battery capasity kW 2,86 2,23 1,56 1,25 1
Max temp. increase °C 23,4 18,2 12,8 10,2 8,2
Pipe connection Ø mm 10 10 10 10 10
Recommended kvs-value 1,0 1,0 1,0 1,0 1,0
S7R
Water pressure l/s 0,08 0,06 0,05 0,03 0,06
Pressure drop waterside kPa 17,85 12,58 8,04 4,25 12,97
Max battery capasity kW 6,19 5,01 3,82 2,6 2,42
Max temp. increase °C 29,5 23,9 18,25 12,4 11,5
Pipe connection Ø mm 1/2” 1/2” 1/2” 1/2” 1/2”
Recommended kvs-value 1,6 1,6 1,6 1,0 1,0
PHYSICAL DIMENSIONS
A B C D
S4R/SL4R mm 205 205 350 160
S7R mm 351 255 350 200
Fig. 20 Duct battery
D
B
C
A
Avluftning
Avtappning
D
B
C
A
