23

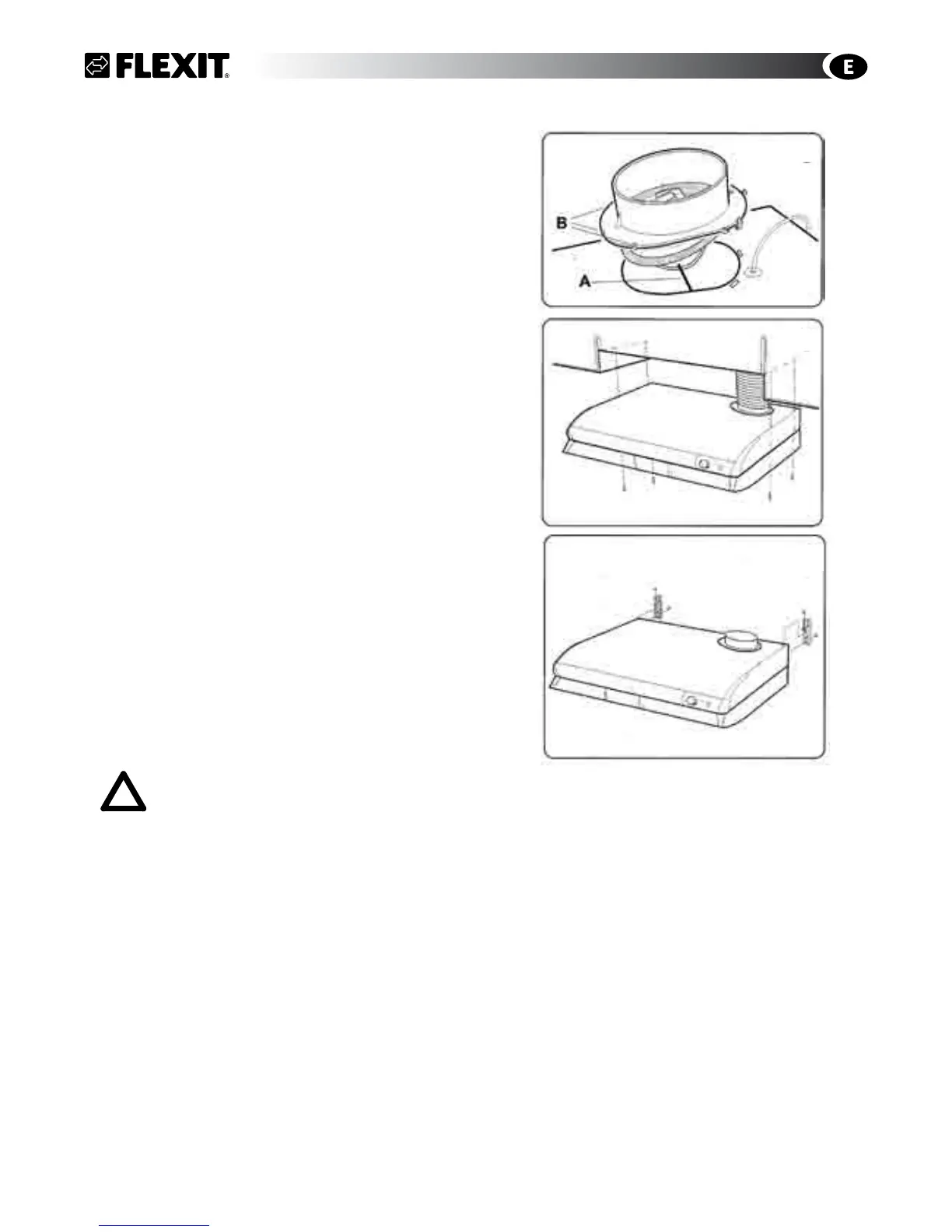

10 Installation of External Kitchen
Hood
10.1 Technical Data
Width: 60 cm
El. connection: 230 V earthed
Light: Fluorescent tube, base G23, 11 W
10.2 Installation of External Kitchen Hood
Installing the sleeve and damper
The sleeve is inside the volume hood on delivery.
Place the damper shaft A in the hoop under the
damper lid, see Fig. 21. Ensure that the grips B are
under the edge of the plate. The sleeve snaps into
place.
Installing the kitchen hood
The kitchen hood must be placed under or recessed
in the row of cabinets, see Fig. 22. The distance
between the cooker and the kitchen hood must be at
least 40 cm. For a gas cooker, the distance must be
65 cm. The kitchen hood can also be installed using
wall mountings that can be purchased as accessories,
Fig. 13. Instructions for installing the accessories are
enclosed with them.
Electrical installation
The kitchen hood is supplied with a cable and earthed
plug for connection to an earthed socket. The control
cable (12 V) is connected between marked 2-core
cables from the kitchen hood and the unit. The colour
of the cables connected to the terminals is of no
significance. The control cable between the kitchen
hood and the unit must at least be of type 2 x 0.75
mm
2
. The voltage between the units is 12 V DC.
The installation must be carried out by an
authorised expert.
Adjustment
For adjustment of the kitchen hood, see Chap. 12, and
for the unit see Chap. 13 Adjustment Curves.
Fig. 21
Fig. 23
Fig. 22
