8.2 SL4 R

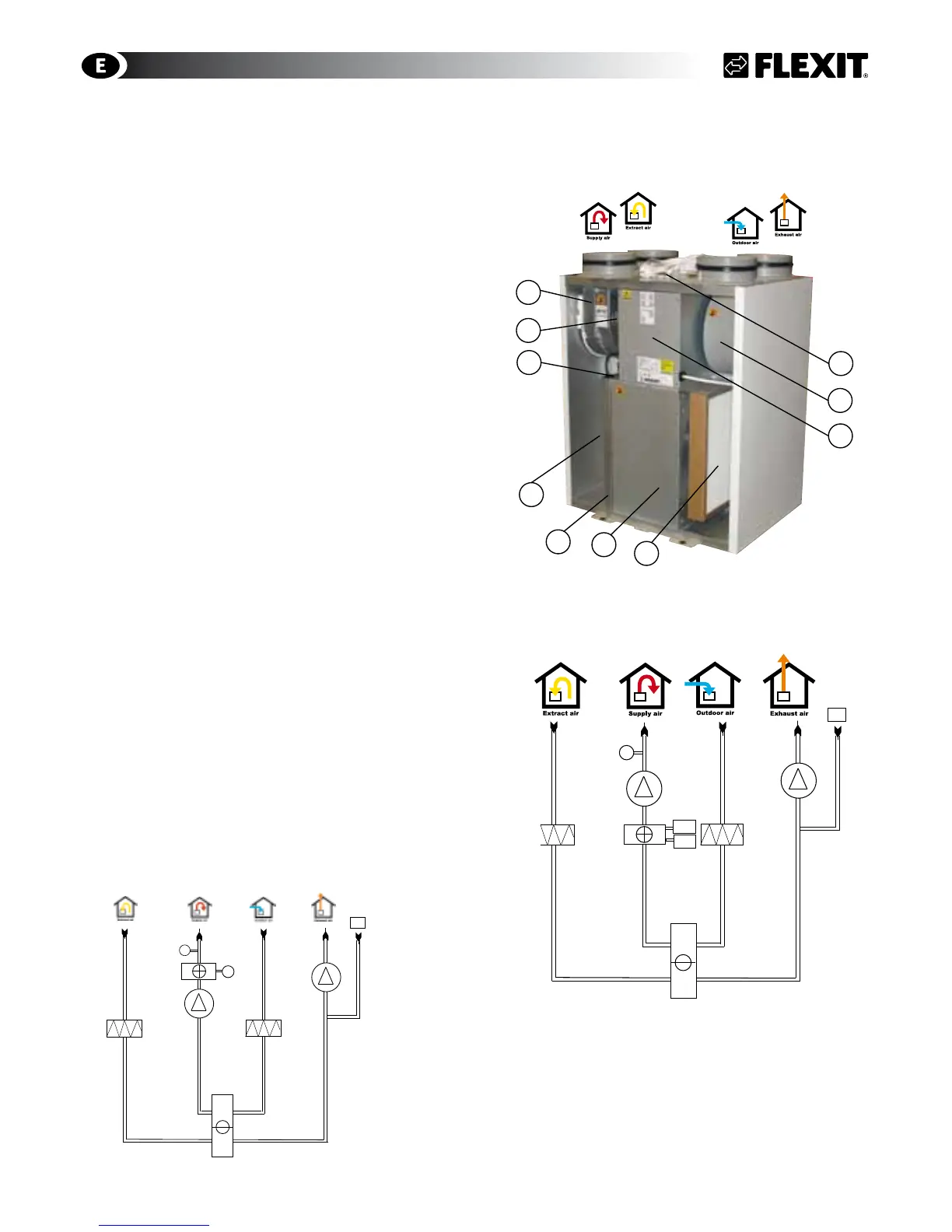

General Picture - Rotor Heat Exchanger
1 (FI2) Extract air filter F 7
2 (FI1) Supply air filter F 7
3 (EB1) Heating battery, electrical
4 (F10-20) Overheating thermostat (manual reset)
5 (M1) Supply air fan
6 (M2) Extract air fan
7 (HR-R) Rotor heat exchanger
8 Control box
9 Adjustment switch
10 Connection: Control panel/kitchen hood
System Drawing - Electrical Battery
B1 Temperature sensor, supply air
B5 Temperature sensor, water battery * (- EB1/F10/F20)
EB1 Heating battery, electrical
F10 Overheating thermostat (manual reset)
F20 Overheating thermostat (automatic reset)
FI1 Supply air filter
FI2 Extract air filter
M1 Supply air fan
M2 Extract air fan
HR-R Rotor heat exchanger
M4 Rotor motor
MODELS WITH KITCHEN HOOD ONLY:
K Kitchen hood (SL4 RK)
System Drawing - Water Battery *
FI2
M1
M2
EB1
VF10
F20
M4
HR-R
FI1
B1
K
Extract Supply Outdoor Exhaust
SL4 R
Supply air Extract air Kitchen hood Outdoor air Exhaust
Right model
(left model inverted)
System Drawing - Electrical Battery
8
6
10
3
2
7
1
4
5
9
FI2
M1
M2
M4
HR-R
FI1
K
B1
B5
