8

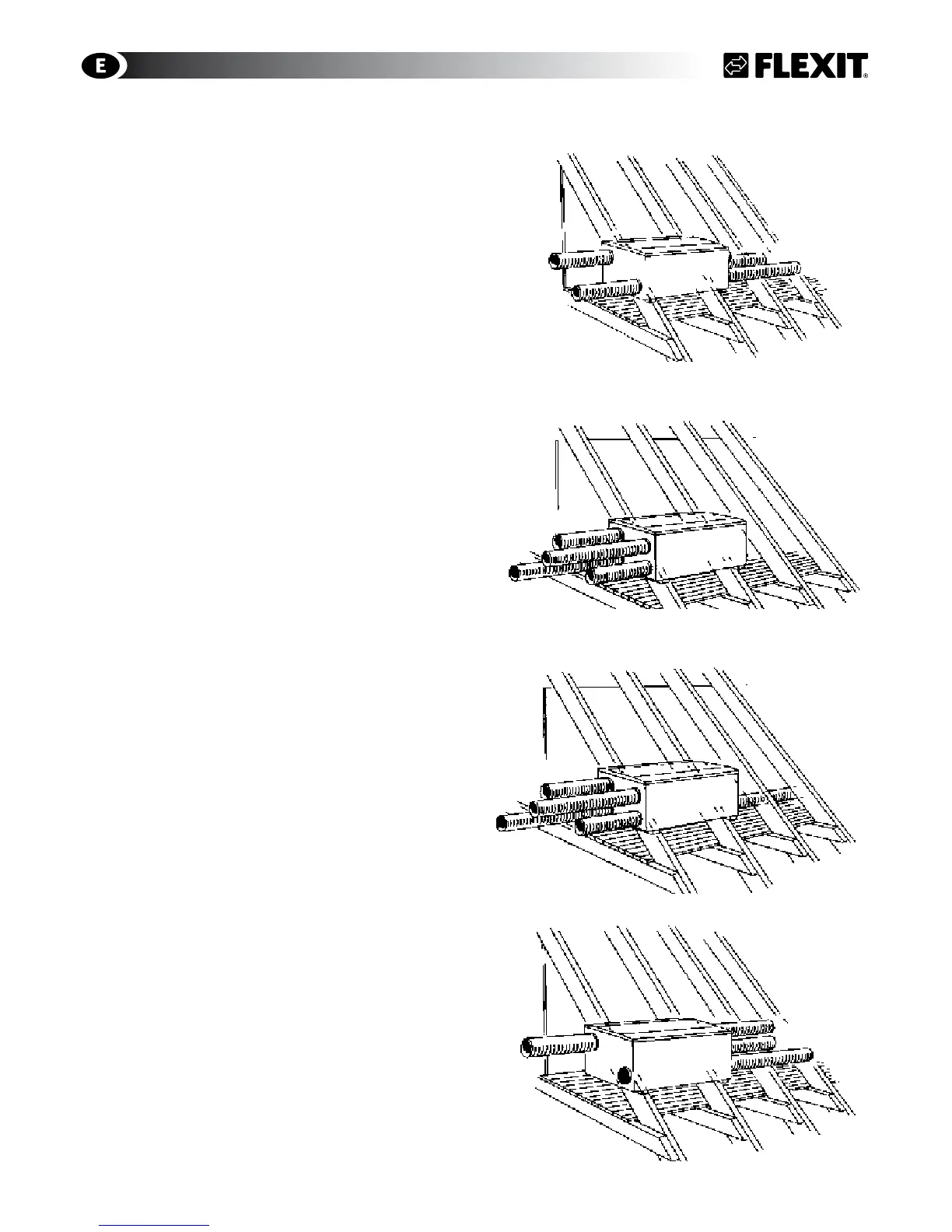

Fig. 11
Fig. 12
Fig. 13
Fig. 14
4.2 Horizontal Mounting
The ventilation unit should be installed on a firm base
(e.g. gypsum/chipboard) that is level.
If the room is noise sensitive, place the panel on a
very firm panel of mineral wool for additional sound
reduction (Fig. 2/Kap. 2). The unit should not be
installed above a bedroom. The figures 11-14 describe
the various duct connections available.
SL4 R
Right hand model
The left model is inverted
Right hand model
The left model is inverted
Left hand model
The right model is inverted
Left hand model
The right model is inverted
