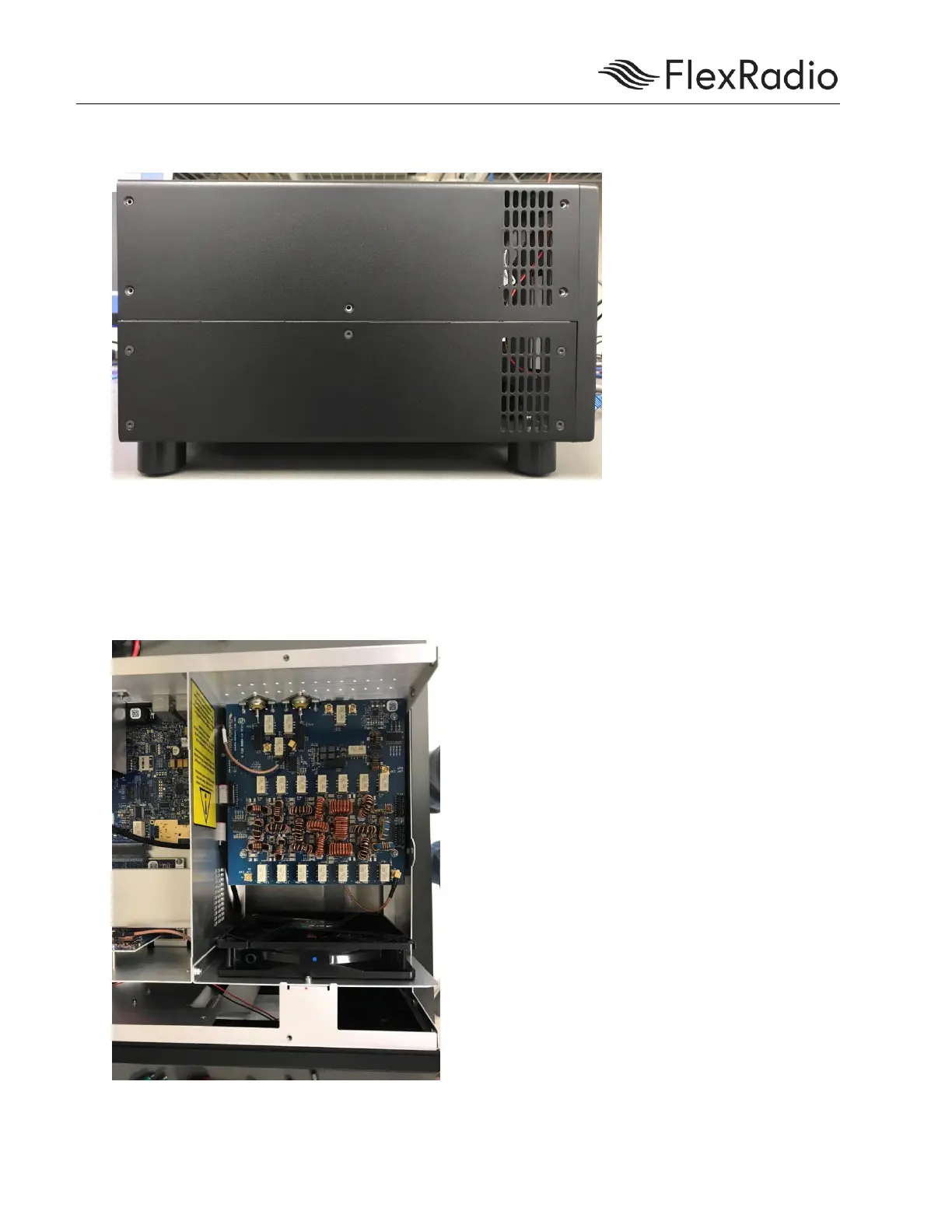

Step 2: Carefully remove screws (5 each side) from both sides of the top cover using the T8 Torx.
Step 3: Remove top cover and handle gently so as not to scratch the cover. Set aside.
Step 4: With a Phillips head screwdriver, remove the 4 screws and washers from the top board that sits
behind the main fan. Set aside.
