Page 28 of 73
Copyright 2023 FlexRadio. All Rights Reserved. 4 January 2023 (FW:3.7.28 Utility:3.7.28)

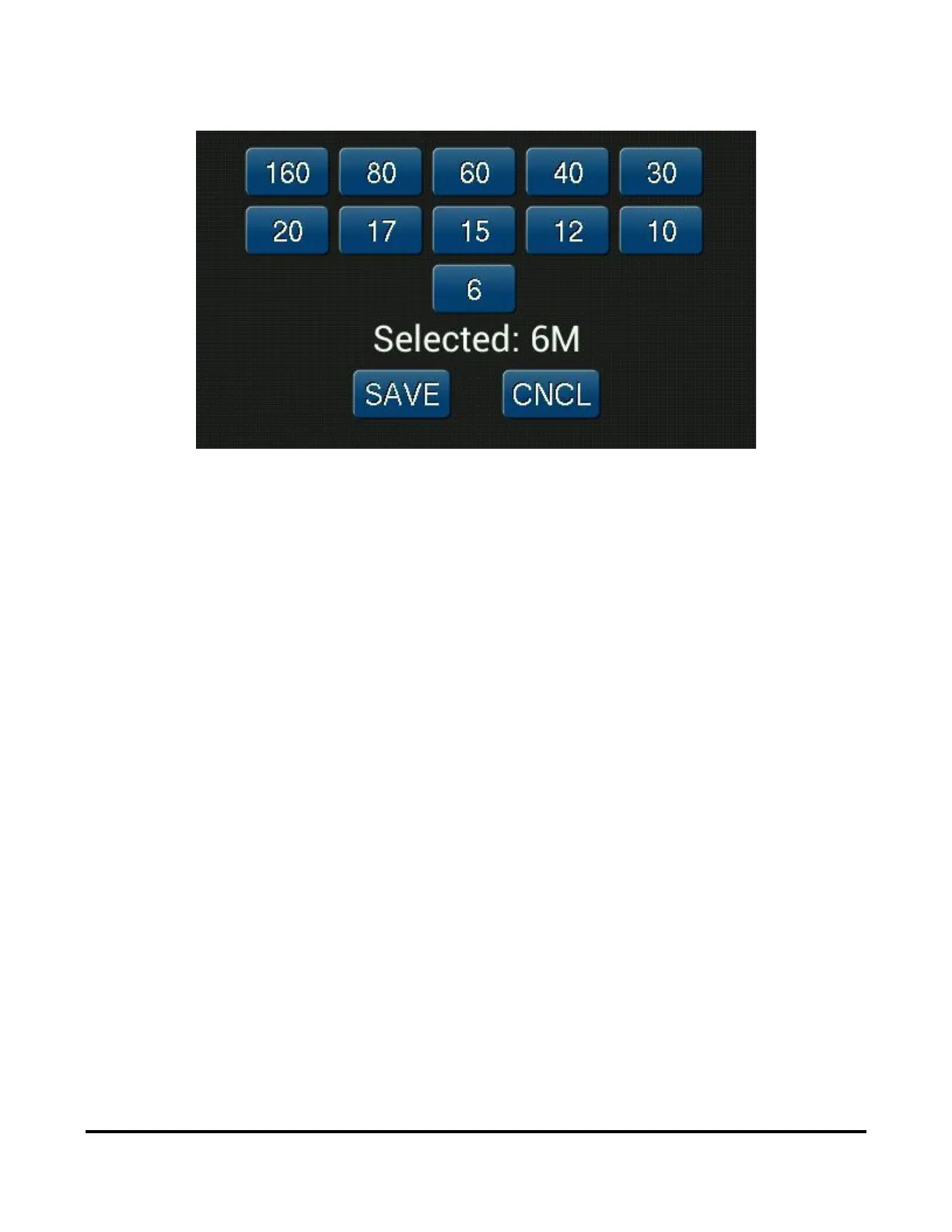

When the MAN button is selected, the following screen will appear:
Touch the desired band then touch SAVE to apply the configuration.
3.4.3 Interfacing with Other Exciters
You can connect more than one radio type to a Power Genius XL, provided each radio is exclusively connected
to one of the amplifier ports (A or B). Though each port has multiple interfaces to receive band data and key
the amplifier, the amplifier does not support multiple radios on a single amplifier port.
3.4.3.1 Elecraft
The amplifier requires both band data and a PTT line from Elecraft radios. Band data is available using a custom
wired BCD band decoder cable.
PTT
Connect an appropriate cable (RCA male terminated on both ends) between the radio's Key output and the PTT
Input corresponding to the amplifier Port (A or B) used.
Band Data (BCD)
See the pinout diagram below for the cable configuration. The connection is the same for all Elecraft radio
models.
