VIDEO OUTPUT
The LCM1502TV provides a video output for an optional Video
monitor(s). This output will provide a video signal that duplicates the
signal displayed by the LCM1502TV to an additional Monitor or Video
display. Please see your installer for more information.
AUXILIARY A/V STEREO INPUTS JACK
The LCM1502TV is equipped with an auxiliary A/V input connector.
The inputs are provided to facilitate the connection of Audio/Video
equipment, such as a camcorder or video game system. To play a
source with these inputs, an RCA patch cord is required to connect
the Audio/Video signals to their respective jacks. Mono audio sources
will require the use of an RCA Y-cable (P/N 0892165) to connect to
both right and left inputs.
2-CHANNEL IR TRANSMITTER
The LCM1502TV is equipped with a dual channel IR transmitter for
use with Audiovox 2-Channel Headphones (P/N IR2CHS).
• The “A” channel will transmit the audio from the A/V source
selected on the LCM1502TV.
• The “B” channel will transmit any audio source such as a CD
Changer or Satellite Radio system connected to the IR2 inputs.
++
++
++
++ ++
++
++
++
++
++
++ ++
++ ++
++
++
++

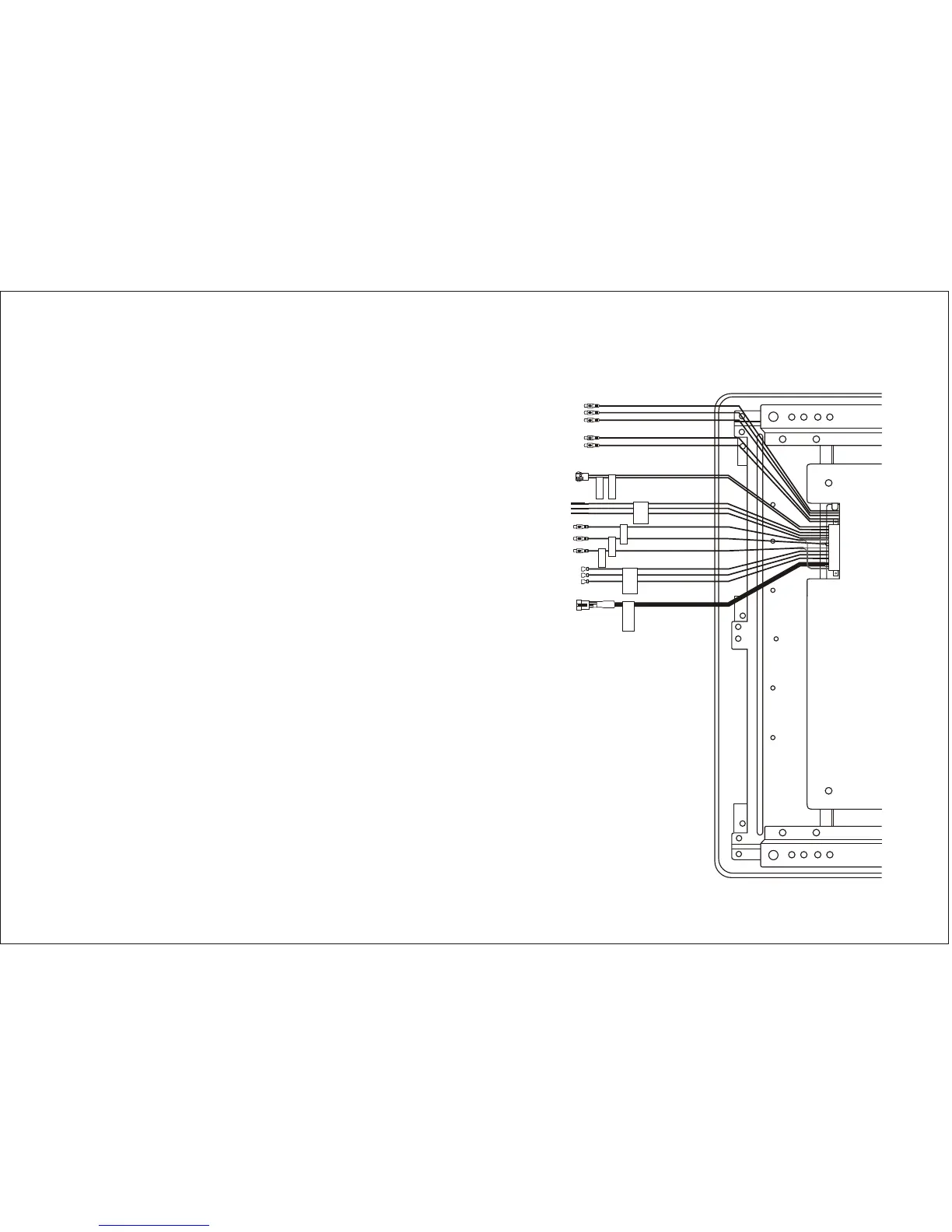

TO
FM TRANSMITTER
SPEAKER OR
HEADPHONE
CONNECTION
LINE OUT-R
LINE OUT-V
LINE OUT-L
TWO DOME
LIGHT’S
CONNECTION
POWER(+12V)
POWER(GND)
AUX IN-L (WHT)
AUX IN-R (RED)
AUX IN-V (YLW)
IR2-IN-R (RED)
IR2-IN-L (WHT)
25
