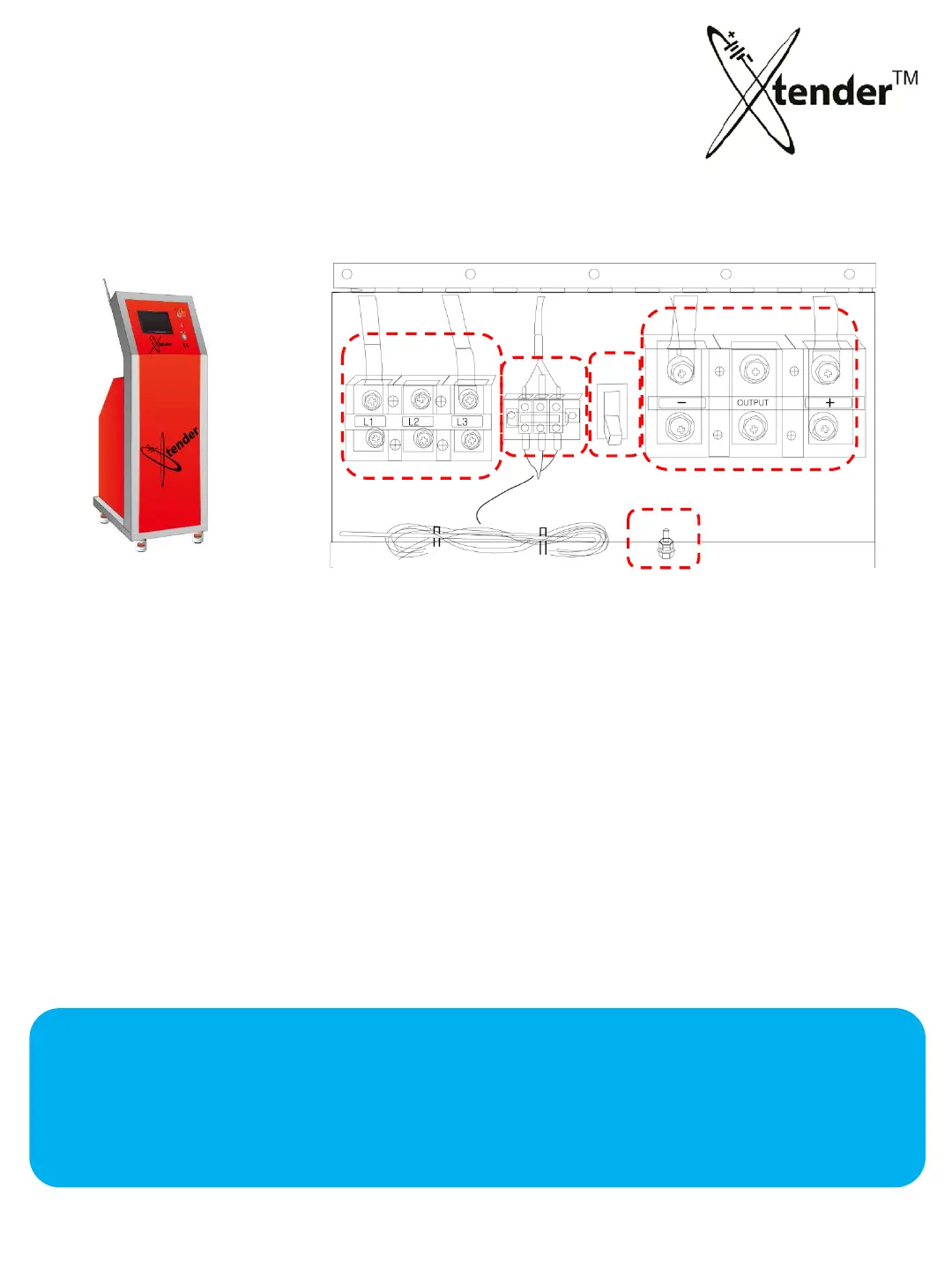

Flight Systems Xtender - Wiring Instructions; 93-M1001

 When connecting cables to the backside of Xtender, be sure the
location and connect to right position.
 When connecting cables to OUTPUT be cautious to polarity (+) &
(-)
to be connected correctly.
 93-M1001
1
INPUT :
Xtender Electricity power / AC 220V / Single Phase 60Hz
2
TEMP.SENSOR :
Connect Temp. Sensor with Model PC-100 provided
3
CIRCUIT BREAKER :
Xtender Protection Device: It will automatically cut electricity off during the excessive current
or a power failure.
4
OUTPUT :
Battery has a polarity of (+) & (-). Be sure that they are connected correctly.
5
GROUND :
Xtender to Earth Ground
1
2
3
4
5
 Wiring Instructions
21
