2. Operation (Restoration & Discharge)
PROGRAM MODE – PULSE SCENARIOS

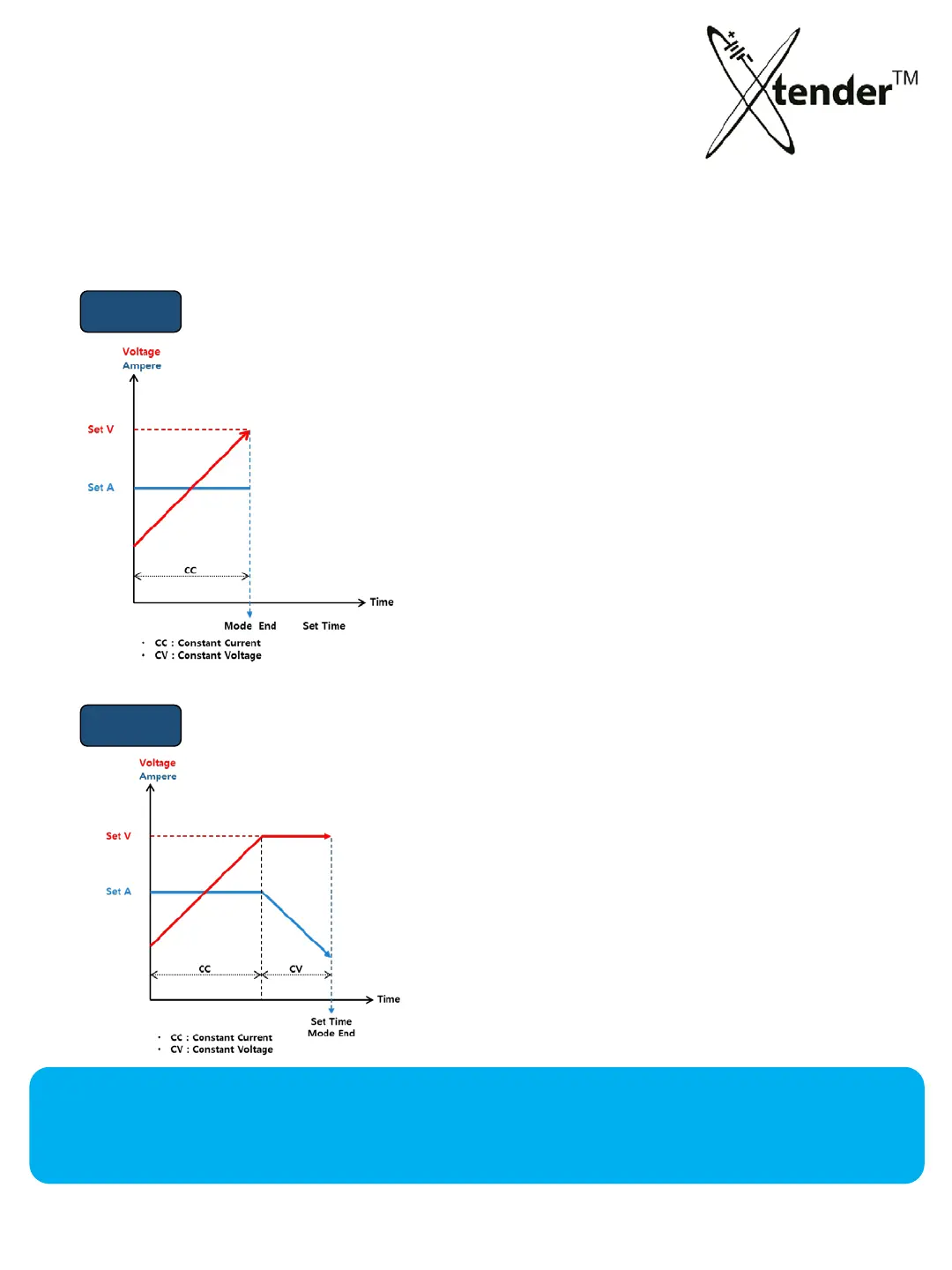

Restoration(regeneration charge) Method – Pulse Scenarios (Patterns)
( V = Voltage, A = Ampere, T = Time )
Pulse 1
Restoration Pulse1 Scenario :
① Start Charging with Set A.
② When Actual Voltage reaches Set V, it will
fi
n
ish the Mode regardless of Set T.
② When it reaches Set T, it will also finish the Mode
ev
en though Actual V has not yet reached Set V.
“Constant Current” Charging will be applied
Pulse 2
Restoration Pulse2 Scenario :
① Start Charging with Set A until Actual Voltage
re
aches Set Voltage. (Constant current)
② When Actual V reaches Set V, maintain Set V until
Se
t Time by controlling Actual Ampere.
(Constant Voltage).
③ When it reaches Set time, it will finish the Mode.
You should check specification & conditions of used batteries before you input Set V, Set A
and Set Time for regeneration of batteries. Wrong set values will cause damages to batteries
due to over charge or other reasons.
42
