2. Operation (Restoration & Discharge)
PROGRAM MODE – PULSE SCENARIOS
As Pulse 3 & Pulse 4 in Program Mode also make discharge during Restoration, you are
requested to extend restoration time to secure considerable charging capacity.
Restoration (regeneration charge) Method – Pulse Scenarios (Patterns)
( V = Voltage, A = Ampere, T = Time )
Pulse 3

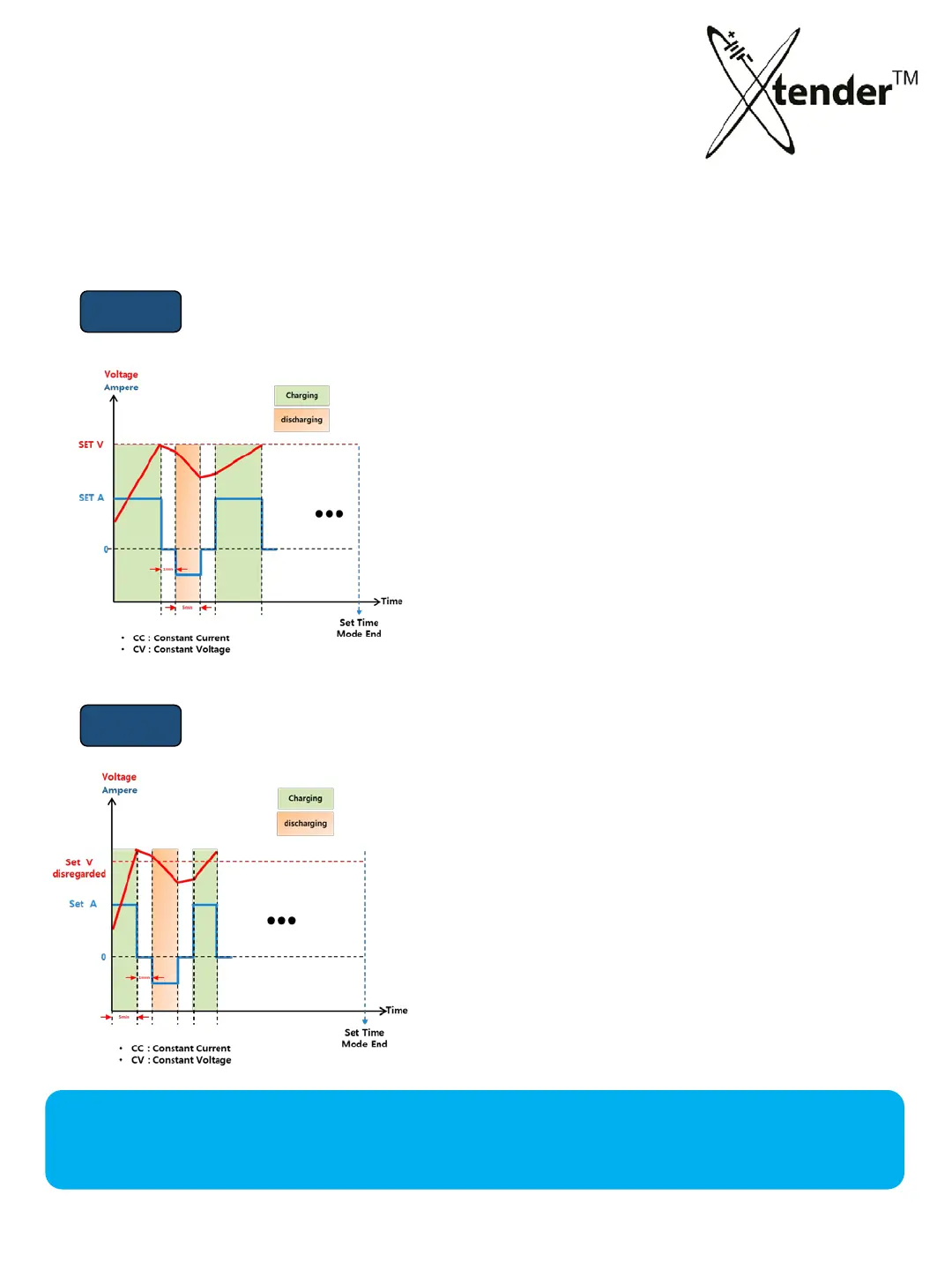

Restoration Pulse 3 scenario :
①
When actual Voltage reached Set V,
▶Keep Zero(0) Ampere for 1 minute
(Stop charging for 1 minute)
② Discharge for 5 minutes at 1/3 A of Set A
(Ex. 30A -> 10A), ▶Keep Zero(0) Ampere for
1 minute.
③ Repeat
①~② continuously.
④ When it reached Set T, it will finish the Mode.
Pulse 4
Restoration Pulse 4 scenario :
①
Start Charging with at Set A for 5 minutes
(regardless whether it reaches or over Set V).
▶Keep Zero(0) Ampere for 1 minute.
② Discharge for 5 minutes at 1/3 A of Set A.
▶Keep Zero(0) Ampere for 1 minute.
③ Repeat ①~② continuously.
④ When it reached Set T, it will finish the Mode.
Re
storation and Discharge
are combined
Restoration and Discharge
are combined
