You should check manufacturers specification & conditions of used batteries before you input
Set V, Set A and Set Time for regeneration of batteries. Wrong set values will cause damage to
batteries due to over charge or other reasons.
2b. Program mode setup cont’d

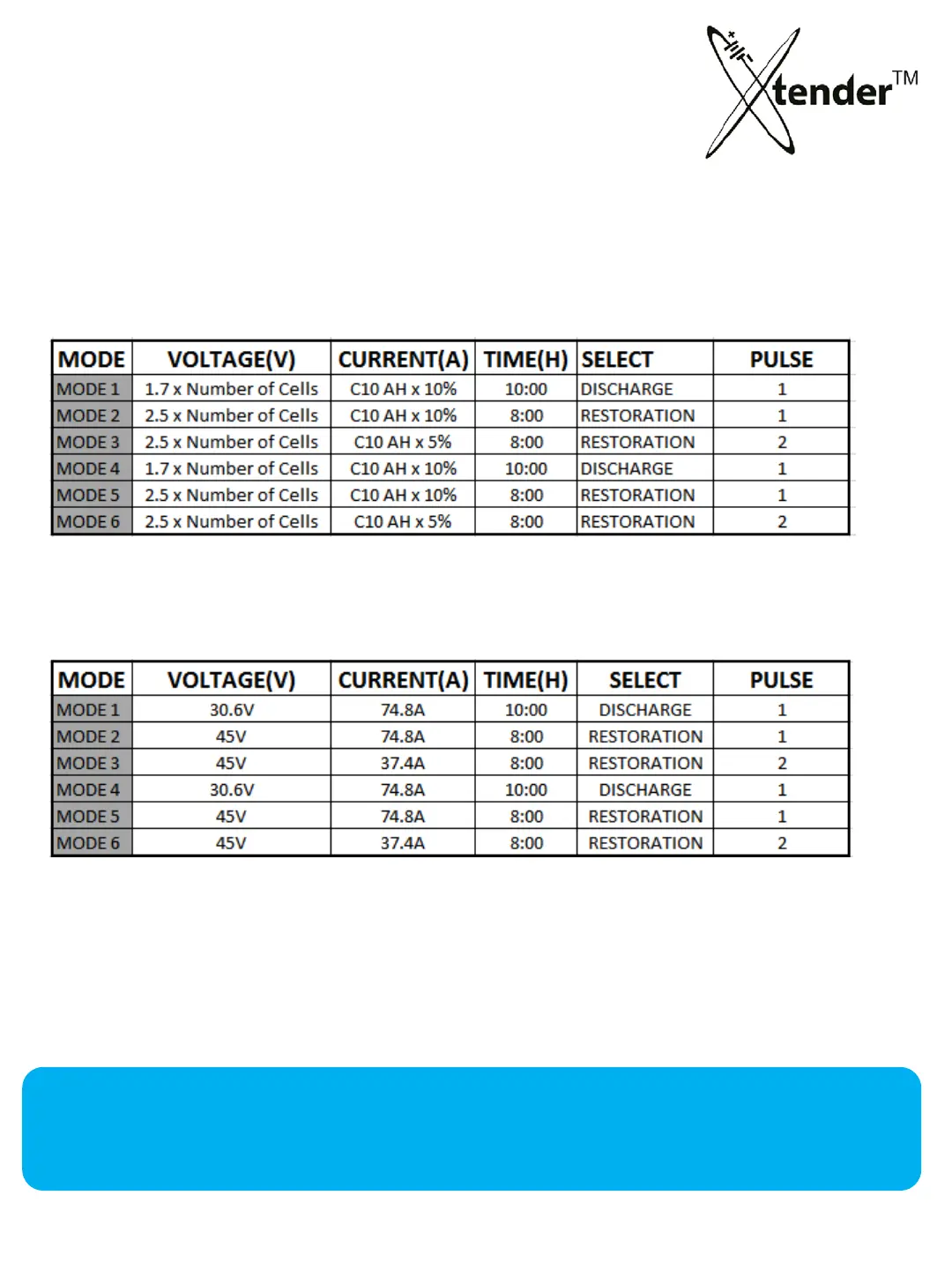

3. Example program typical lead acid battery regeneration process:
ALWAYS FOLLOW BATTERY MANUFACTURERS RECCOMENDATIONS!
a. Select “MODE 1” and follow formula in the below chart.
i. Number of Cells = ½ of nominal battery voltage.
b. Select “MODE 2”
c. Continue until all 6 Modes have been completely programmed.
4. Example program using 36V battery with 680 AH 6 hour rating,
assuming process is began with fully charged battery:
5. Once each mode is successfully programmed verify information
displayed is correct then press “OK” to begin the regeneration process.
47
