Flint & Walling CJ101B201 User Manual

2
95 North Oak Street • Kendallville, IN 46755 • Copyright © 2010. All rights reserved.
IL0396
IL0395

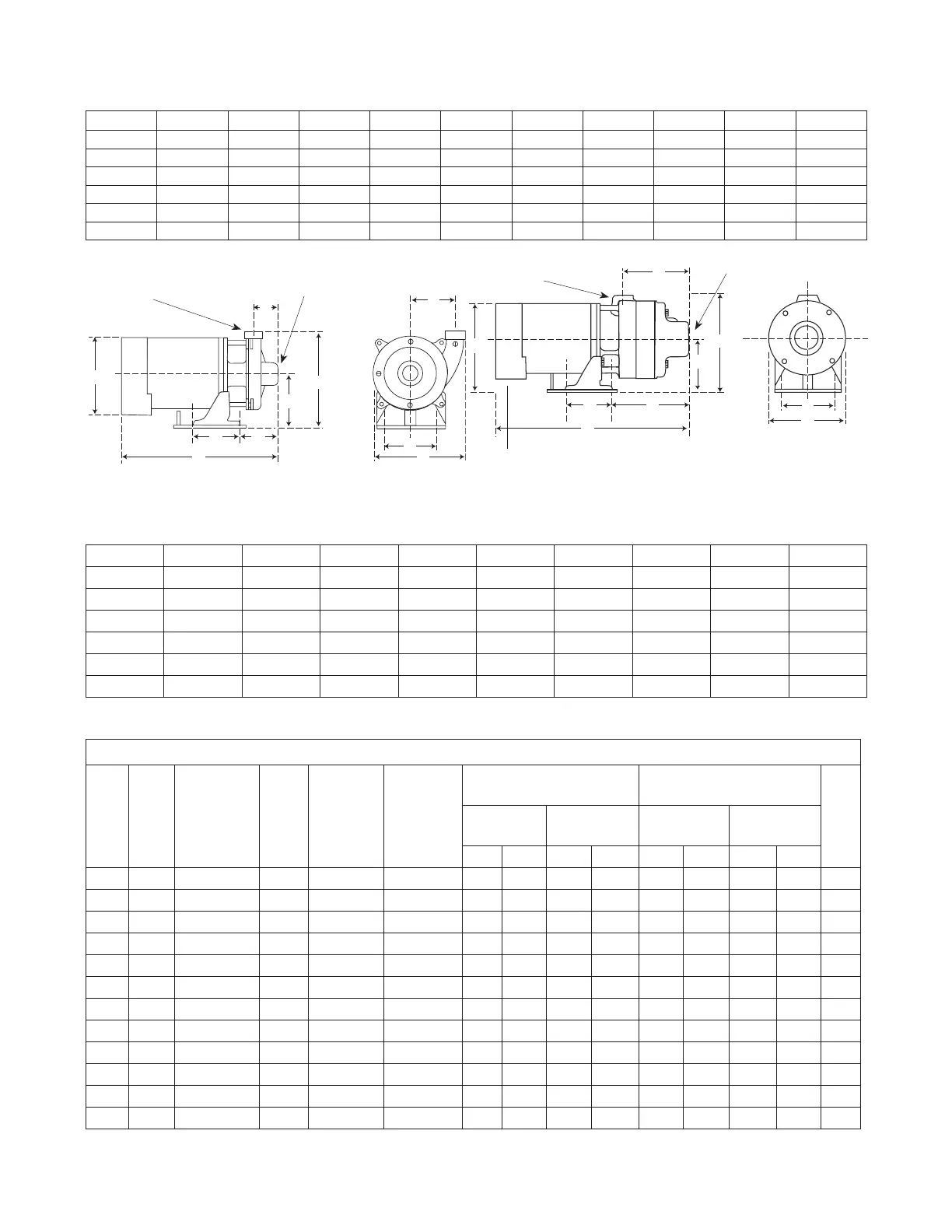

Figure 3 - CJ103 Single Stage Booster Pump
Figure 4 - CJ101B Two and Three Stage Booster Pump
H
J
F
1-1/4” Discharge
1-1/2” Suction
D
E
A C
K
B
G
C
A
H
F
D
E
J
G
B
1-1/4” Discharge
1-1/2” Suction
CJ101 Series Chart B
HP A B C D E F G H J
3/4 4 4-5/8 7-9/16 4-13/16 8-3/4 6-1/4 7 8-1/8 17-7/8
1 4 4-5/8 7-9/16 4-13/16 8-3/4 6-1/4 7 8-1/8 18-3/8
1-1/2 4 4-5/8 7-9/16 4-13/16 8-3/4 6-1/4 7 8-1/8 19
2 4 4-5/8 7-9/16 4-13/16 8-3/4 6-1/4 7 8-1/8 19-1/2
2 * 4 4-5/8 9-7/16 4-13/16 8-3/4 8-1/8 7 8-1/8 21-3/8
3 * 4 4-5/8 9-7/16 4-13/16 8-3/4 8-1/8 7 8-1/8 21-3/8
(*) Three Stage
Motor Data Chart C
HP PH VOLTS HZ RPM
MOTOR
VOLTAGE
(FACTORY)
CONNECT.
SERVICE FACTOR MOTOR
AMPS
LOCKED ROTOR AMPS
KVASINGLE
PHASE
THREE
PHASE
SINGLE
PHASE
THREE
PHASE
11 5 V 230V 230V 460V 11 5 V 230V 230V 460V
1/3 1 115/230 60 3450 11 5 V 8.6 4.3 — — 26.0 13.0 — — K
1/2 1 115/230 60 3450 11 5 V 13.0 6.5 — — 36.0 18.0 — — K
3/4 1 115/230 60 3450 11 5 V 14.0 7. 0 — — 52.0 26.0 — — K
1 1 115/230 60 3450 230V 18.0 9.0 — — 70.0 39.0 — — L
1-1/2 1 115/230 60 3450 230V 21.0 10.5 — — 98.0 49.0 — — J
2 1 115/230 60 3450 230V 25.0 12.5 — — 116.0 58.0 — — H
3 1 230 60 3450 230V — 13.5 — — — 53.0 — — D
3/4 3 208-230/460 60/50 3450/2850 230V — — 3.5 1.75 — — 19.0 9.5 K
1 3 208-230/460 60/50 3450/2850 230V — — 4.5 2.25 — — 26.9 13.5 K
1-1/2 3 208-230/460 60/50 3450/2850 230V — — 5.7 2.85 — — 33.5 16.8 K
2 3 208-230/460 60/50 3450/2850 230V — — 7. 4 3.0 — — 44.0 22.0 K
3 3 208-230/460 60 3450 230V — — 9.8 4.9 — — 48.0 24.0 D
Dimensions (In Inches) CJ103 Series Chart A
HP A B C D E F G H J K
1/3 4 4-5/8 3-11/16 4-13/16 9-3/16 2-1/2 8-1/4 8-1/8 13-1/4 3-7/8
1/2 4 4-5/8 3-11/16 4-13/16 9-3/16 2-1/8 8-1/4 8-1/8 13-1/2 3-7/8
3/4 4 4-5/8 3-11/16 4-13/16 9-3/16 2-1/8 8-1/4 8-1/8 14 3-7/8
1 4 4-5/8 3-11/16 4-13/16 9-3/16 2-1/8 8-1/4 8-1/8 14-1/2 3-7/8
1-1/2 4 4-5/8 3-11/16 4-13/16 9-3/16 2-1/8 8-1/4 8-1/8 15-1/8 3-7/8
2 4 4-5/8 3-11/16 4-13/16 9-3/16 2-1/8 8-1/4 8-1/8 15-5/8 3-7/8

Flint & Walling CJ101B201 Specifications

General

Brand	Flint & Walling
Model	CJ101B201
Category	Water Pump
Language	English
