13
© 2020 FLINT & WALLING, INC. • 95 North Oak St. • Kendallville, IN 46755
flintandwalling.com

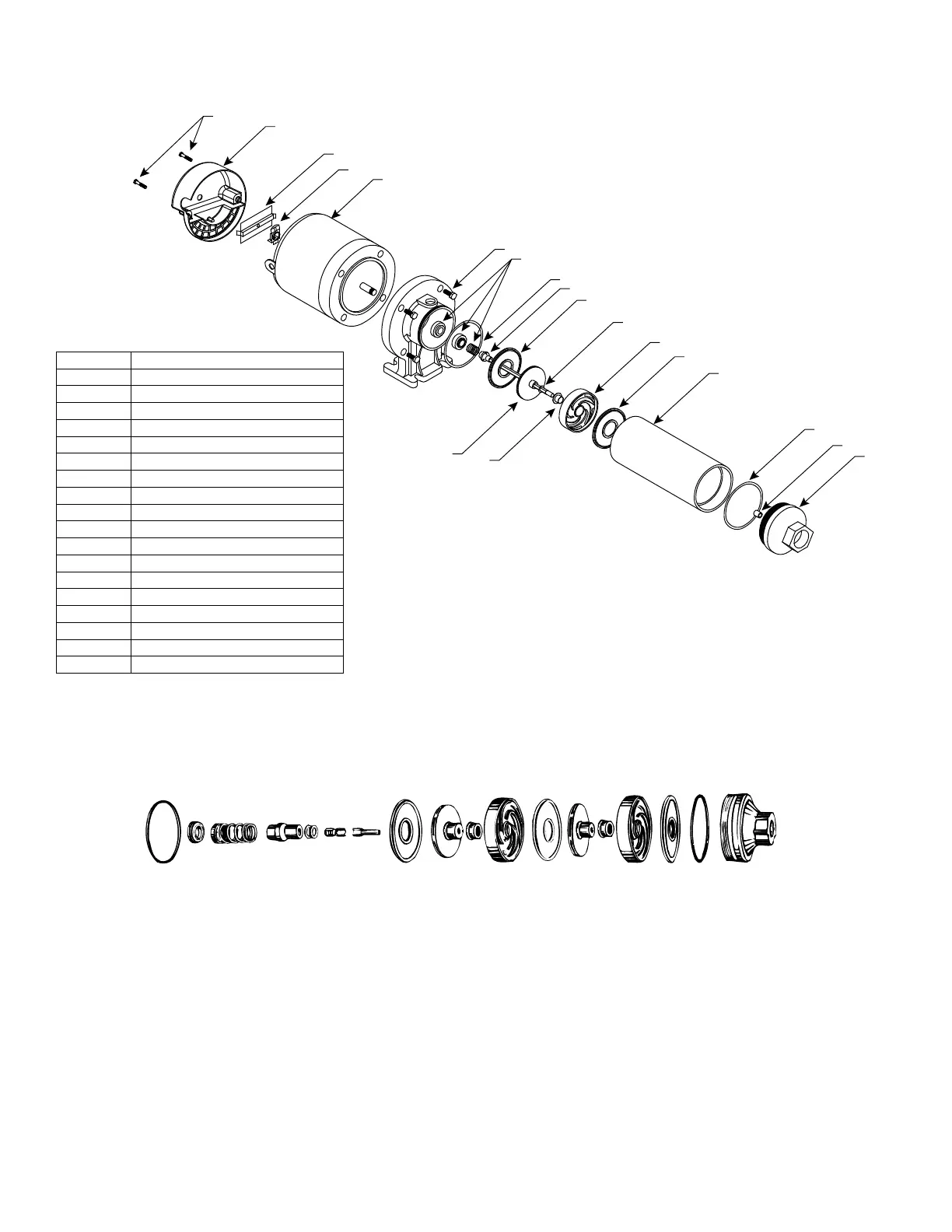

Booster Pump Parts Drawing
Figure 20 - Cartridge Assembly Includes Discharge Bearing, Shaft & Coupling Assembly, Diffuser Plate, Impellers, Diffuser Bearings, Diffusers and
O-rings
NOTE: Illustration shows only two stages. Pump has multiple stages. Individual parts are not available separately.
Internal Parts Detail
IL0127
4
10A
10
1B
1A
1
9
8
2
5
7
6A
6E
6D
6A
5
4A
3
6C
6B
4
ITEM NO. DESCRIPTION
1 Motor
1A †Governor
1B †Switch Motor
2 Seal, Rotary
3 Barrel
4 Discharge Head
4A Discharge Bearing
5 O-ring (2)
6A Plate, Diffuser
6B Impeller
6C Diffuser
6D Diuser Bearing
6E Shim as Required
7 Shaft and Coupling Assembly
8 Mounting Ring
9 Hex Head Bolts (4)
10 †MotorAccess Cover
10A †Screws, Access Cover (2)
*See note below parts included in cartridge assembly.
†ODP Motor Only
Figure 19
