FLIR C2 User Manual

The measurement formula
19

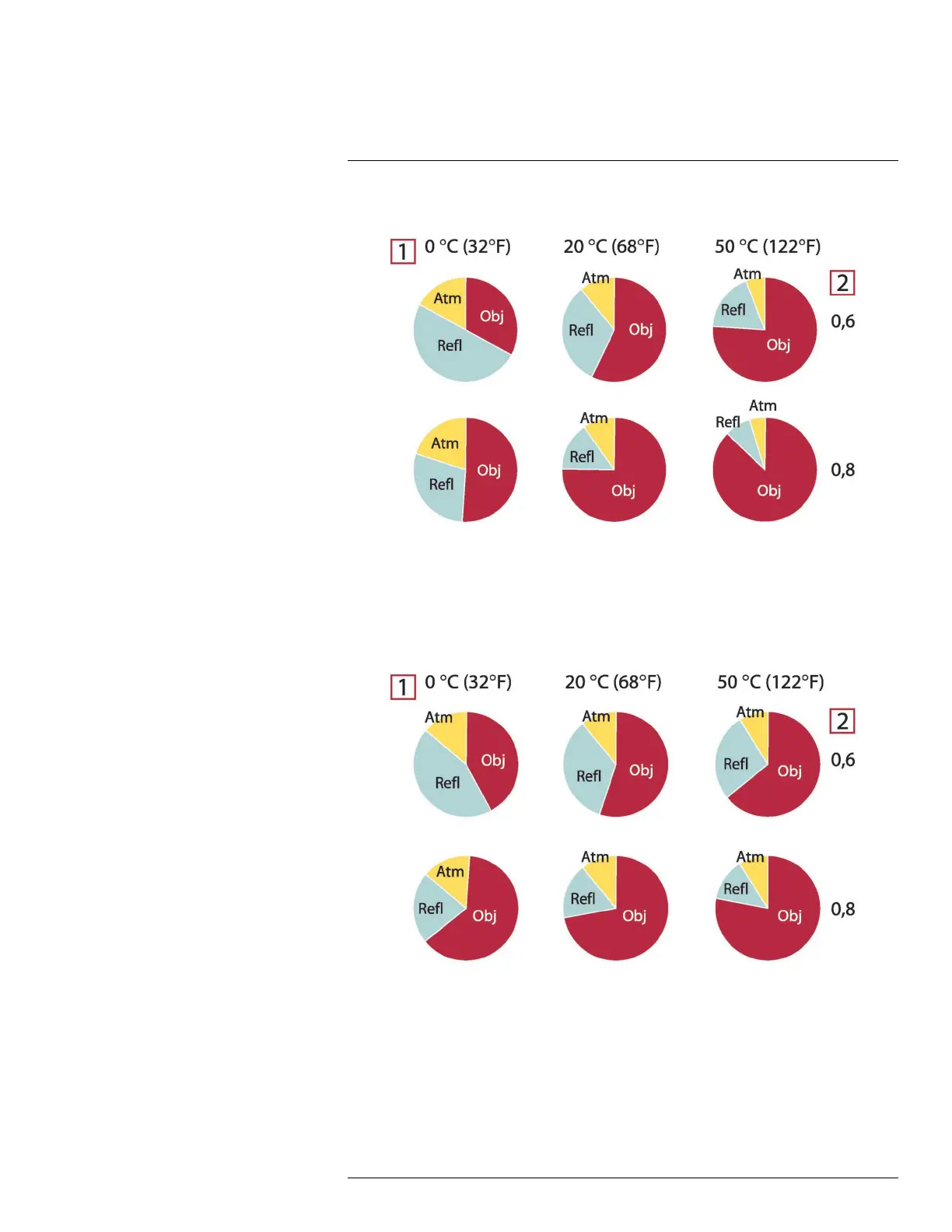

Figure 19.2 Relative magnitudes of radiation sources under varying measurement conditions (SW camera).
1: Object temperature; 2: Emittance; Obj: Object radiation; Refl: Reflected radiation; Atm: atmosphere radia-
tion. Fixed parameters: τ = 0.88; T
refl
= 20°C (+68°F); T
atm
= 20°C (+68°F).
Figure 19.3 Relative magnitudes of radiation sources under varying measurement conditions (LW camera).
1: Object temperature; 2: Emittance; Obj: Object radiation; Refl: Reflected radiation; Atm: atmosphere radia-
tion. Fixed parameters: τ = 0.88; T
refl
= 20°C (+68°F); T
atm
= 20°C (+68°F).
#T559918; r. AN/42281/42281; en-US
81

FLIR C2 Specifications

General

Package weight	540 g
Battery life (max)	2 h
Battery recharge time	1 h

Weight and Dimensions

Depth	125 mm
Width	80 mm
Height	24 mm
Weight	130 g
