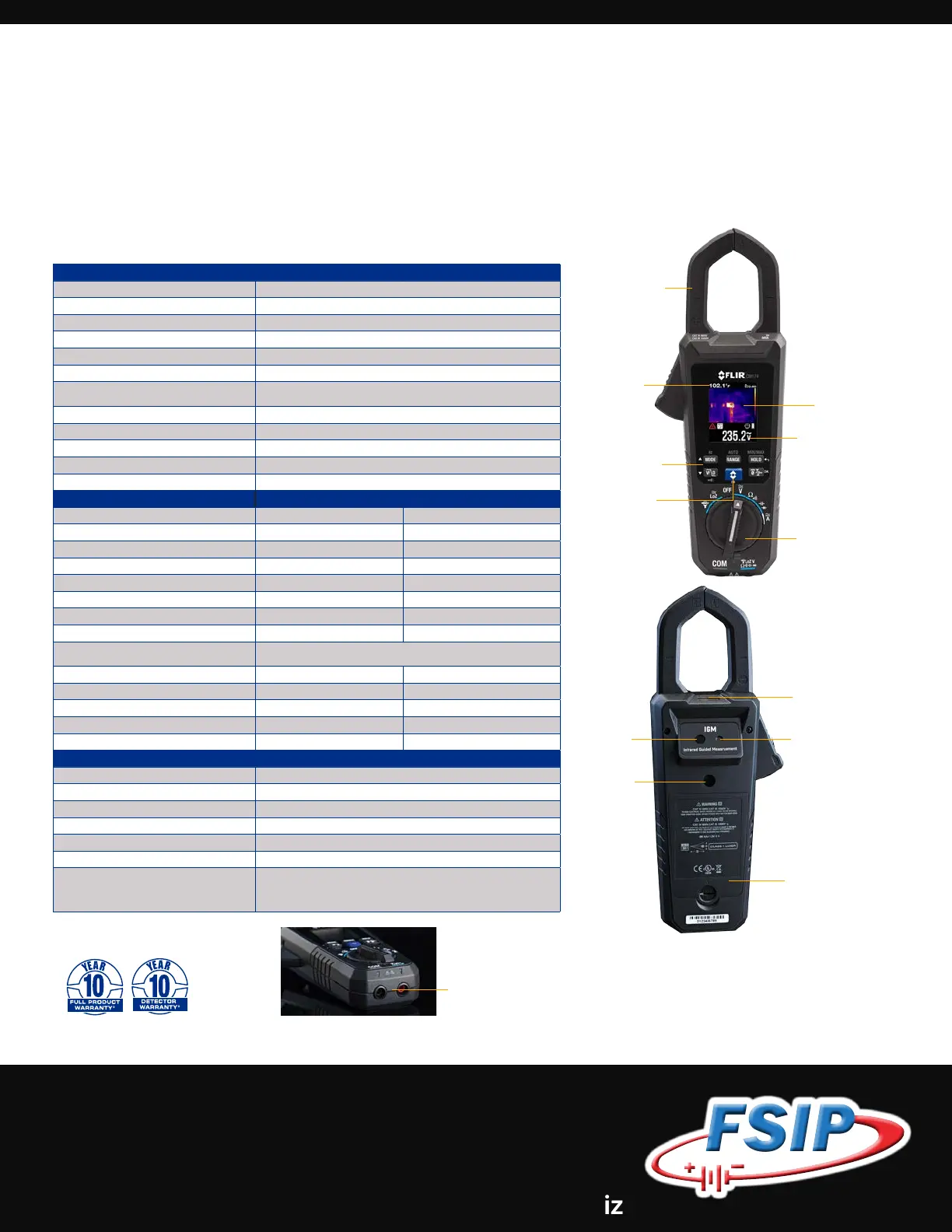

Specifications
FLIR CM174: Imaging Clamp Meter
Imaging Detector FLIR Lepton
®
microbolometer
Thermal Image Resolution 4800 pixels (60 × 80)
Field of View (V x H) 38.6° x 50.0°
Color Palettes Iron, Rainbow, Grayscale
Image Frame Rate 9Hz
Temperature Measurement Center point of thermal image
Temperature Range -13°F to 302°F (-25°C to 150°C)
Temperature Distance to Spot Ratio 30:1
Temperature Accuracy ±5.4°F (3°C) or ±3% of rdg
Spectral Response 8 to 14μm
Temperature Targeting Class 1 Laser Pointer and Crosshair on display
Emissivity Settings 4 Presets with Custom Adjustment
Electrical Measurements Range Basic Accuracy
AC/DC Voltage 1000V ±1.0%
VFD AC Voltage 1000V ±1.0%
LoZ Mode AC Voltage 1000V ±1.0%
LoZ Mode DC Voltage 1000V ±1.0%
DC Current 600.0A ±2.0%
AC Current 600.0A ±2.0%
VFD AC Current 600.0A ±2.0%
Inrush AC Current 600.0A ±3.0%
Inrush AC Current Threshold
Min 0.5A
Integration Time 100ms
Frequency 60.00kHz ±0.1%
Resistance 6000Ω ±1.0%
Continuity 600.0Ω ±1.0%
Capacitance 1000μF ±1.0%
Diode 1.5V ±1.5%
General information
Display 6000 Count 2.0” (50mm) Color TFT
Jaw Opening 1.38" (35mm), 1250MCM
Category Rating CAT IV-600V, CAT III-1000V
Certifications UL
Battery Type 4 x AAA
Warranty 10 Years on Product and Detector*
Includes
Clamp Meter, 4 x AAA Batteries, Premium Silicone Test Leads,
Quick Start, User Manual (CD), Extended Warranty
Registration Card
*See FAQs at flir.com/CM174
Lepton
Thermal
Imager
Laser Pointer
Worklight
Optional
Accessories
Mount
Tool Less
Battery
Compartment
Temperature
Measurement
600 AMP
AC/DC
Current Jaw
Selection
Buttons
Thermal
Electrical
Measurement
Activate
Thermal
Imager
Extended
Rubberized
Function Knob
Test Leads Input
Flight Systems
Industrial Products
1-800-333-1194 • www.batteryrestoration.biz
The FLIR CM174 Imaging 600A AC/DC Clamp Meter with IGM is the
first clamp meter equipped with a built-in thermal imager that can
quickly lead you to problems you can’t see with a standard clamp
meter. Featuring Infrared Guided Measurement (IGM) technology,
the CM174 visually guides you to the precise location of a potential
electrical problem, identifying dangerous and unknown problem areas
safely. Confirm your findings with accurate amperage and voltage
measurements, and center-point temperature readings. The narrow
jaw enables greater accessibility, and its compact form-factor fits
easily into your back pocket – so you can have thermal imaging at your
fingertips everywhere you go. The FLIR CM174 will quickly become
your primary electrical troubleshooting tool.
Find problems faster with IGM.
Visually identify electrical issues with the
first thermal imaging clamp meter
• Conquer cluttered wires and cables – IGM can quickly guide you in
the right direction
• All-in-one tool – carry just one device and always have access to
thermal imaging
• Work safely – scan a panel or cabinet for hazards using IGM without
direct contact
Confirm your findings.
Verify problems, check load, and validate hot spots
• Center-point temperature to confirm hot spot
• Amperage and voltage measurements to check the load
• Laser and crosshair pinpoint the location of the problem found in
thermal image
Solve complex electrical issues.
Design and functionality vital to professionals
• Narrow jaw and built-in worklights help you access difficult locations
with lighting issues
• Advanced electrical features: True RMS, LoZ, VFD Mode, Inrush,
Smart Diode with Disable
• Expandable to 3000 Amps AC with FLIR flex accessories
IGM technology guides you where to measure
Verify amperage measurements
FLIR CM174
Imaging 600A AC/DC Clamp Meter with IGM™
