427-0073-12-12 Version 120 May 2015 1-14
1
Camera Installation

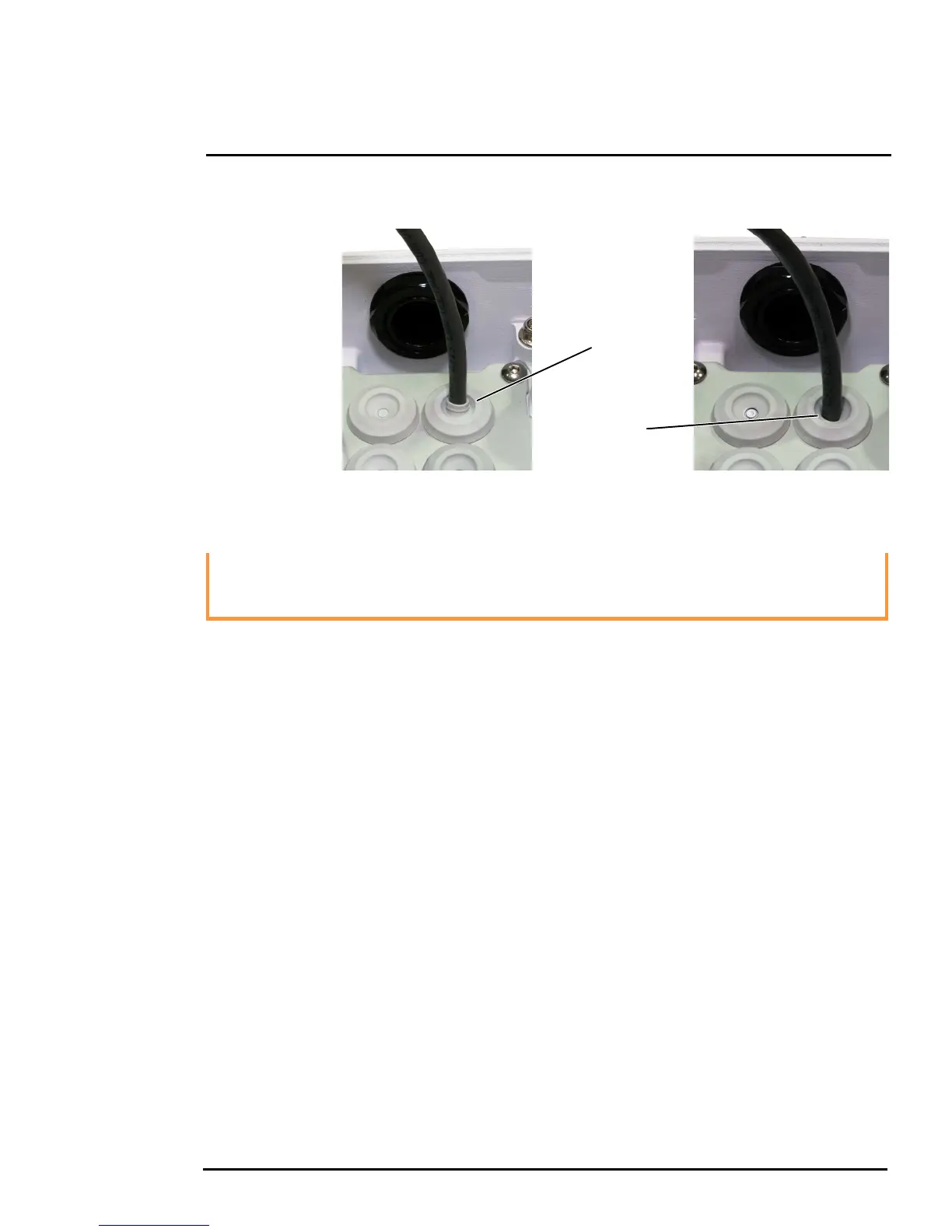

Step 10 Push the cable back through the gland seal so that the seal is extended down not up, as
shown in the illustration below.
Step 11 Connect the cables as indicated in Figure 1-7 on page 1-7. Ensure that any ground wire
that was removed during installation is reconnected. Replace the cover and tighten the four
3 mm hex screws to 1.8 n-m (16.0 in-lbs).
Caution!
Step 12 Using the hex key that is included with the concealed cable mount, loosen the ball joint on
the bottom of the mount, position the camera as required, and then re-tighten the ball joint.
When replacing the cover, make sure the ground wire between the cover and the camera body is
completely inside the o-ring groove. If the wire is pinched between the cover and the base, the
camera will not be sealed against water ingress and could be damaged.
